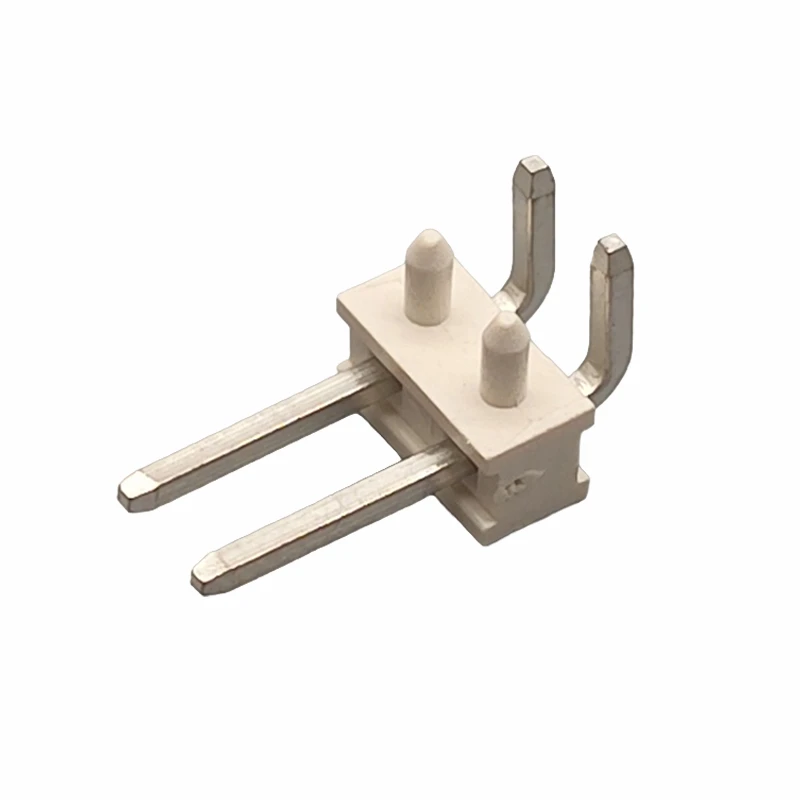

L039 LED 2.5mm Pitch Connector

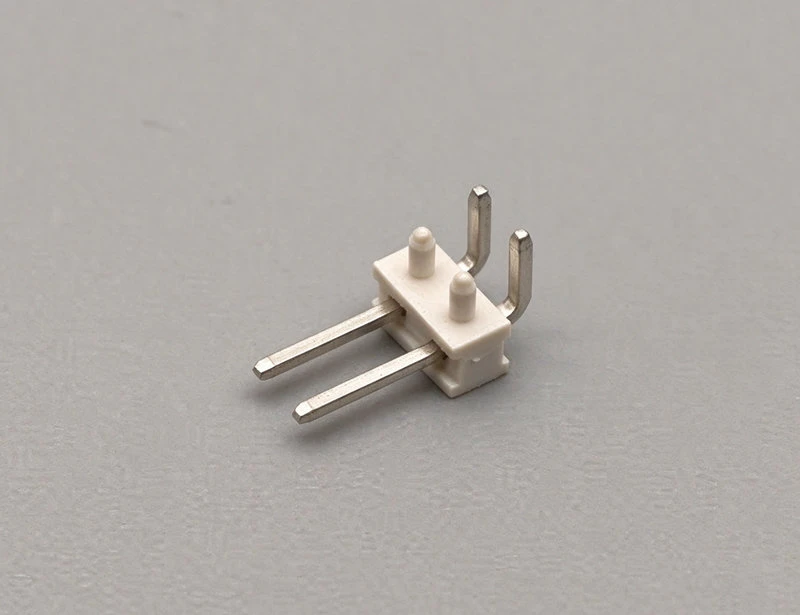

The L039 LED 2.5mm pitch connector is a 2.5mm standard pitch board-end male pin header developed for LED lighting modules. The base is molded from high-temperature insulating plastic, and the header uses high-conductivity metal pins that are integrally stamped and surface-plated. Molded alignment posts guide the mating socket into the correct position and prevent reverse or offset insertion during line assembly. The plated pin surface keeps conductivity stable and resists oxidation and corrosion, so contact impedance remains consistent across repeated mating cycles. The 2.5mm pitch follows the common LED board layout standard, which gives it wide compatibility with existing light board designs, and the solder tails are sized for simple, reliable wave soldering in volume production.

For a standard-pitch male header, the practical buying risk is not the design but lot-to-lot consistency: pins that drift in coplanarity create solder defects, and plating variance degrades contact stability. Our production holds this in check with progressive die stamping from high-purity copper strip, plating applied by qualified suppliers, automated assembly and CCD inspection to ±0.01mm, followed by 100% final inspection before every reel is packed. The result for a buyer is repeatable solder behavior and mating feel order after order, without re-qualifying the line.
