L031 LED Quick Connector

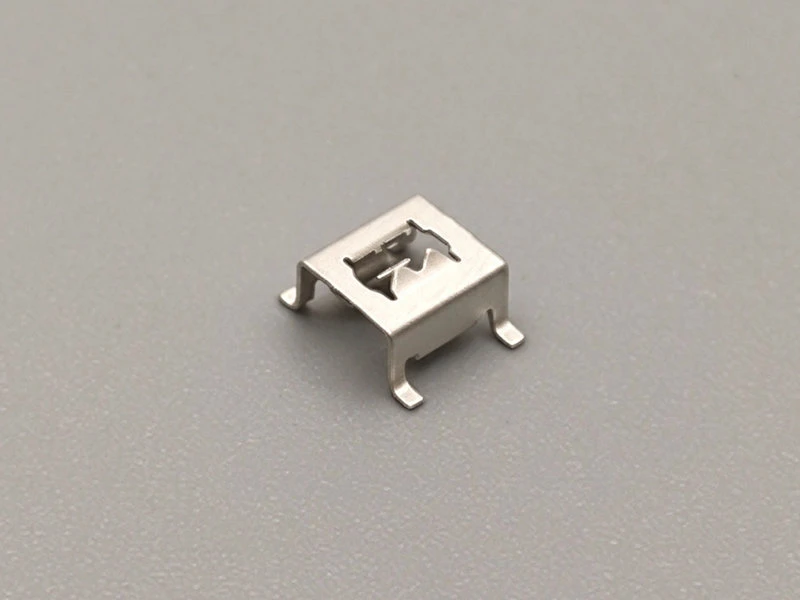

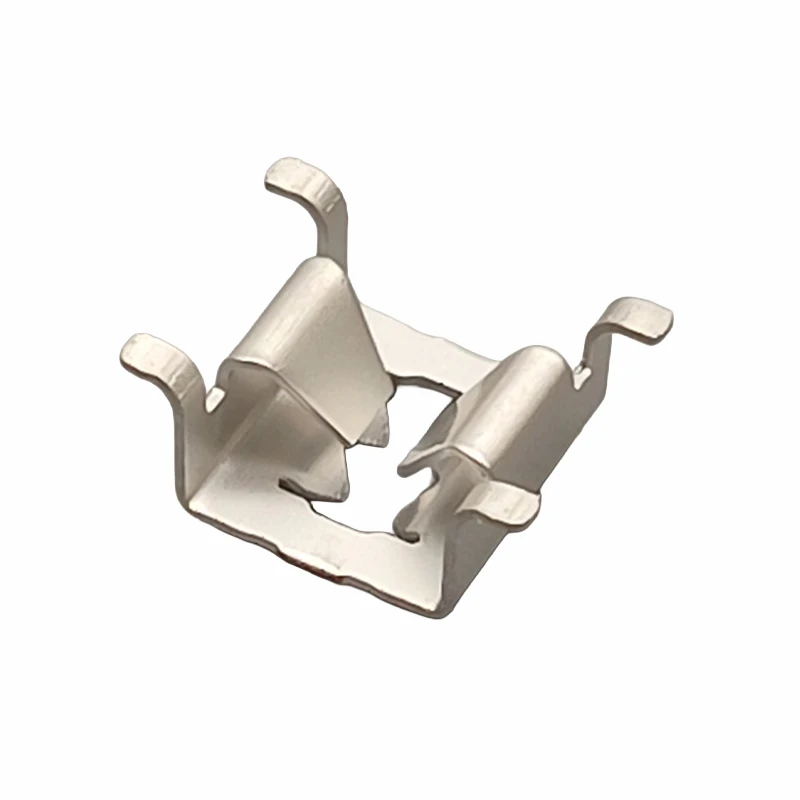

The L031 LED quick connector is a quick-connect spring clip for LED light boards. The one-piece stamped metal clip is SMT-soldered onto the PCB and provides solderless fast interconnection with a mating blade or wire. The elastic grip structure gives stable, reliable contact and resists loosening under vibration, while the plated surface protects against oxidation and corrosion for long-term conduction. Its small size saves PCB space in compact LED modules and removes manual wire soldering from the fixture assembly process, which improves production efficiency.

The contact force of a spring clip comes directly from the bend geometry and material thickness set in the stamping die. We produce L031 on progressive dies from high-conductivity copper strip, with plating applied to a controlled specification and CCD inspection to ±0.01mm before taping. This die-controlled geometry keeps spring force uniform across millions of parts, which is what a high-volume LED assembly line needs for consistent push-in effort and contact stability.

Specifications

Parameter	Specification
Rated Current	1 A AC/DC
Rated Voltage	250 V AC/DC
Insulation Resistance	≥ 800 MΩ
Contact Resistance	≤ 20 mΩ
Operating Temperature	-45 °C to +125 °C
Mounting Type	SMT (surface mount)
Connection	Solderless quick connect

Applications

LED Linear Lighting

SMT placement and solderless mating let linear light boards be assembled without manual wiring steps.

LED Strip Light Sources

The small clip footprint fits narrow strip PCBs and supports repeated disconnect during installation.

Backlight Modules

Vibration-resistant grip keeps the connection stable inside closed backlight housings.

Compact LED Modules

Space-limited boards benefit from the minimal footprint of a bare stamped clip.

Customization

Clip dimensions and plating can be customized according to the customer PCB layout. OEM/ODM production from drawings or samples is supported with sample confirmation, and different models can be combined in one order.
