L047 LED 2.5mm Pitch Connector

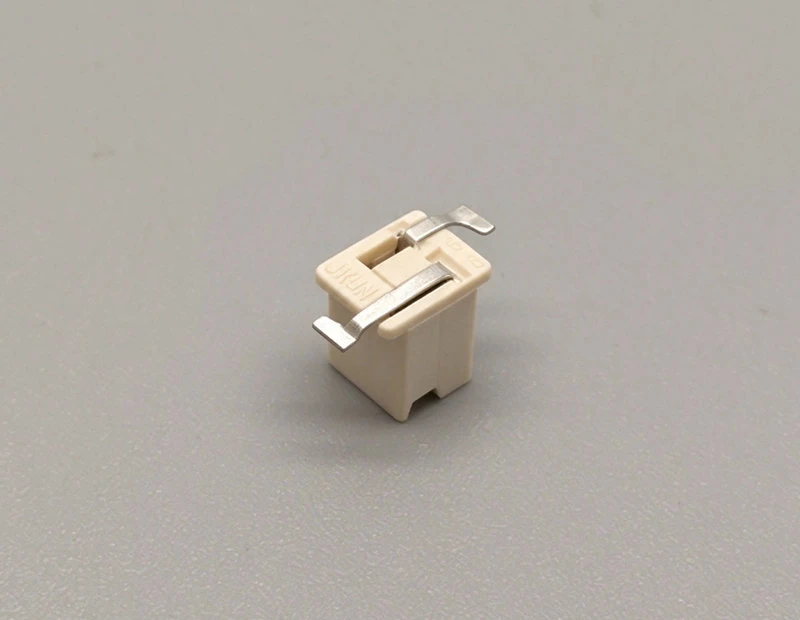

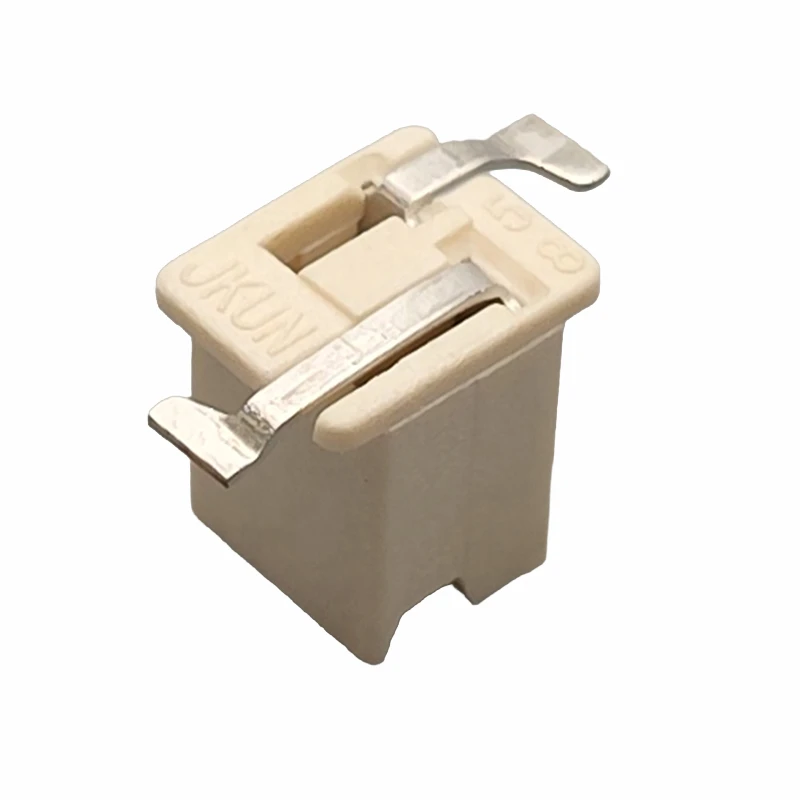

The L047 LED 2.5mm pitch connector is a 2.5mm pitch SMT female socket designed for surface mounting on LED module PCBs. The flame-retardant, high-temperature insulating housing holds high-elasticity metal contacts and is built for automated pick-and-place and reflow processing, which suits high-volume fixture production. The precision-stamped contacts are plated for stable conductivity and oxidation resistance, keeping contact impedance steady across repeated mating. The standard 2.5mm pitch, firm engagement and vibration resistance make it a practical choice for LED linear lights, strips and backlight modules, while the compact SMT footprint saves board space.
SMT connectors live or die by placement and soldering consistency, and that is decided by the part itself: flat solder feet, even plating and stable dimensions. Our stamped contacts and molded housings are produced on automated lines with CCD inspection to ±0.01mm, then packed in carrier tape for direct feeder use. A buyer can run L047 through an SMT line with the same placement program and reflow profile lot after lot, which is the practical value of controlled batch production for surface-mount parts.
Specifications
|
Parameter |
Specification |
|
Pitch |
2.5 mm |
|
Rated Current |
1 A AC/DC |
|
Rated Voltage |
250 V AC/DC |
|
Insulation Resistance |
≥ 1000 MΩ |
|
Contact Resistance |
≤ 20 mΩ |
|
Withstand Voltage |
1000 V AC/min |
|
Operating Temperature |
-40 °C to +120 °C |
|
Mounting Type |
SMT (surface mount) |
Applications
LED Linear Lighting
The SMT footprint fits dense linear light PCBs and is placed directly by pick-and-place machines, removing manual soldering from the line.
LED Strip and Light Bar Production
Tape-and-reel packing supports continuous SMT feeding for high-speed strip assembly.
LED Backlight Modules
A compact footprint and 250V rating suit backlight driver boards that combine power and control circuits on one PCB.
Space-Constrained LED Modules
The low SMT profile leaves routing room on thin module boards compared with through-hole alternatives.
Customization
Pin position count can be adjusted to the project requirement. Contact plating can be selected as gold, tin or nickel. OEM/ODM production from customer drawings or samples is supported with sample confirmation, and different models can be combined in one order.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. Is the product supplied in tape-and-reel for SMT lines?
+
-
Yes, qualified parts are packed in carrier tape with cover tape for automated SMT placement, and each reel is 100% inspected before shipping.
Q2. What is the MOQ?
+
-
The MOQ is 1 set or negotiable depending on the product, and different models or pin counts can be mixed in one order.
Q3. What is the delivery time?
+
-
Standard products are produced in 5-7 days. Custom orders generally take 7-30 days after sample confirmation, with the final date confirmed per order.
