L051 LED 2.5mm Pitch Connector

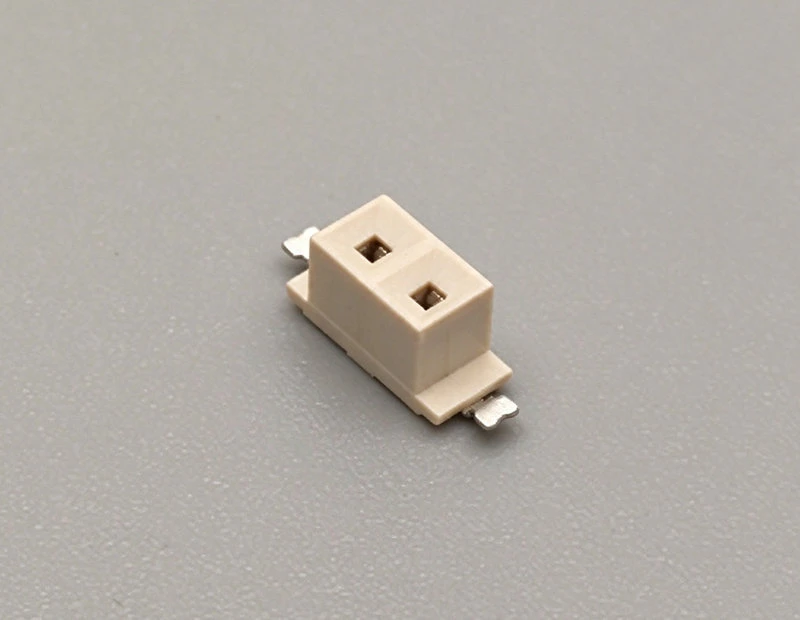

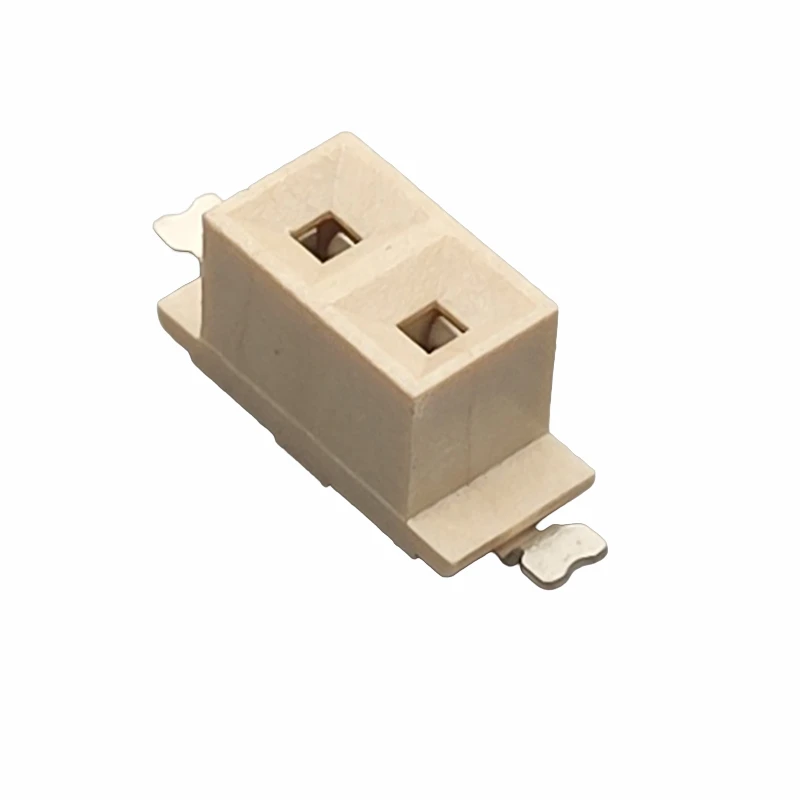

The L051 LED 2.5mm pitch connector is a 2.5mm pitch, 2-pin vertical SMT female socket for LED module PCB assembly. The high-temperature, flame-retardant insulating housing contains high-elasticity contacts and is designed for automated SMT placement, matching the requirements of high-volume luminaire production. Precision-stamped, plated contacts give stable conductivity and resist oxidation and corrosion, while firm locking prevents loosening under vibration. The upright mounting keeps the layout compact and the standard 2.5mm pitch offers wide compatibility with LED linear lights, strips and backlight modules in space-limited designs.
A fixed 2-pin socket is a standardized part, and the buying decision comes down to repeatability and mating stability at scale. Our stamped contacts and molded housings are produced on automated lines with CCD inspection to ±0.01mm and taped for direct SMT feeding, so placement programs stay valid across deliveries. The elasticity of the contact system is maintained by die-controlled geometry, which keeps locking force and contact resistance consistent from lot to lot for high-volume lighting customers.
Specifications
|
Parameter |
Specification |
|
Pitch |
2.5 mm |
|
Number of Positions |
2 |
|
Rated Current |
1 A AC/DC |
|
Rated Voltage |
125 V AC/DC |
|
Insulation Resistance |
≥ 1000 MΩ |
|
Contact Resistance |
≤ 20 mΩ |
|
Withstand Voltage |
1500 V AC/min |
|
Operating Temperature |
-40 °C to +120 °C |
|
Mounting Type |
Vertical SMT (surface mount) |
Applications
LED Linear Lighting
The 2-pin vertical layout suits constant-current LED modules that need a simple positive/negative board connection.
LED Strip Segment Connectors
A single two-pole junction fits strip-to-board interconnects where space on the board edge is limited.
Backlight Modules
Compact vertical mounting keeps backlight driver boards dense while maintaining a firm, vibration-resistant lock.
Low-Cost Lighting Assemblies
A minimal 2-pin configuration keeps part cost low while retaining plated, corrosion-resistant contacts.
Customization
Pin count, contact plating and housing dimensions can be adjusted to the project. OEM/ODM production from drawings or samples is supported with sample confirmation, and different models can be combined in one order.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. What is the lead time for standard L051 orders?
+
-
Standard production takes 5-7 days. Repeat orders are faster because tooling and process settings are already validated.
Q2. Can I mix models in one order?
+
-
Yes, different sizes and models can be mixed in one MOQ order, which simplifies procurement.
Q3. How is quality controlled before shipment?
+
-
First-article checks and patrol inspection are performed every 30-60 minutes during production, and every order is 100% inspected before packing.
