L059 LED Quick Connector

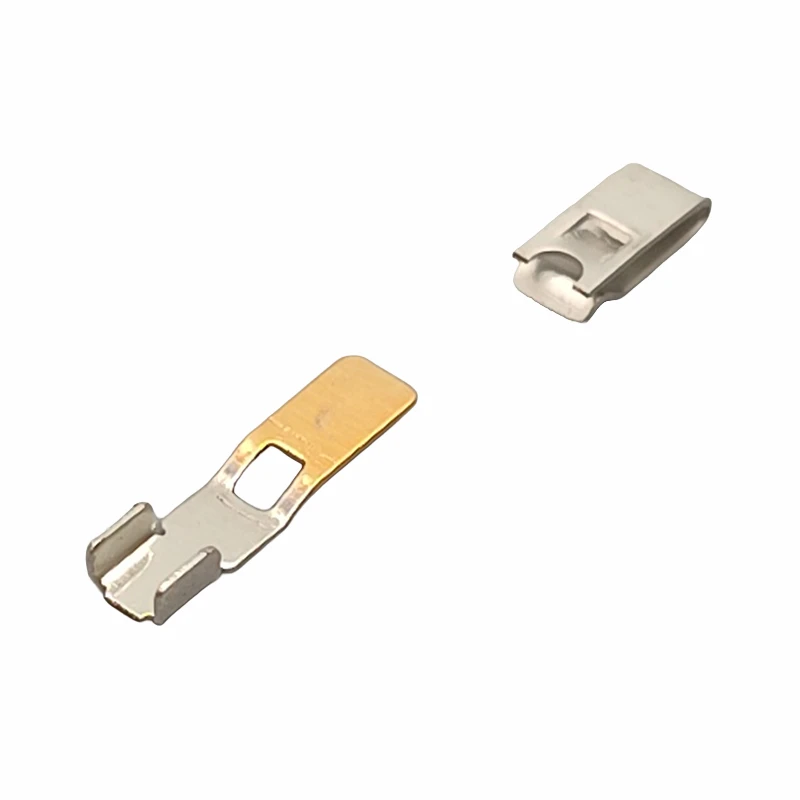

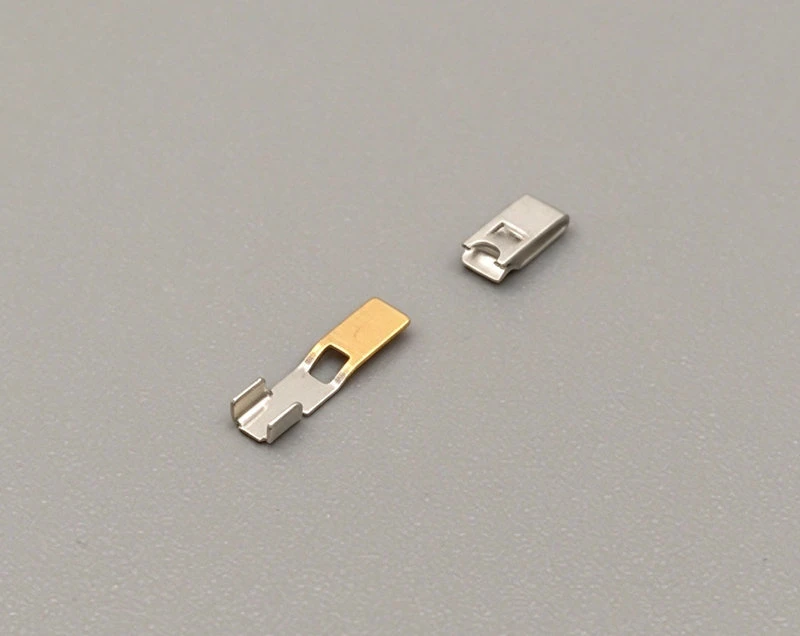

The L059 LED quick connector is a matched male/female metal contact set for solderless board-to-board interconnects on LED lighting modules. The pair consists of a male blade and a female spring clip that are SMT-mounted on two separate PCBs, so two boards can be joined by simple push-fit without soldering at the joint. The contacts are precision-stamped from high-conductivity copper with gold or nickel plating options, giving stable conductivity, oxidation resistance and consistent spring force over repeated mating. The compact, low-profile design saves board space and removes manual soldering from the luminaire assembly process, which shortens cycle time on the production line.

A solderless pair works only if the spring clip holds the blade with the designed force after thousands of cycles, and that force is set in the stamping die, not in the assembly. Our progressive dies control blade width and clip geometry, and the spring material is high-conductivity copper strip with plating applied to a qualified specification. Dimensional inspection to ±0.01mm keeps the two parts within their mating window, so board-to-board joints keep stable contact resistance over the life of the fixture.

Specifications

Parameter	Specification
Configuration	Male blade + female spring clip pair
Material	High-conductivity copper, precision stamped
Plating	Gold or nickel options
Mounting Type	SMT on both PCBs
Rated Current	To Be Confirmed
Rated Voltage	To Be Confirmed
Contact Resistance	To Be Confirmed
Connection	Solderless push-fit board-to-board

Applications

Modular LED Boards

Two separately produced boards can be joined at final assembly by push-fit, enabling independent board manufacturing and simpler inventory.

LED Linear Lighting

Solderless joints remove the solder defect risk on long linear light boards and speed up final assembly.

Backlight Modules

The low-profile contact pair fits the thin stack-up of backlight assemblies where a soldered jumper is impractical.

Serviceable LED Fixtures

A separable joint lets a driver board or LED board be replaced in the field without desoldering.

Customization

Contact dimensions and plating (gold or nickel) can be adjusted to the PCB layout and application. Custom sizes can be developed from drawings or samples with sample confirmation before mass production, and different models can be combined in one order.
