L032 LED Quick Connector

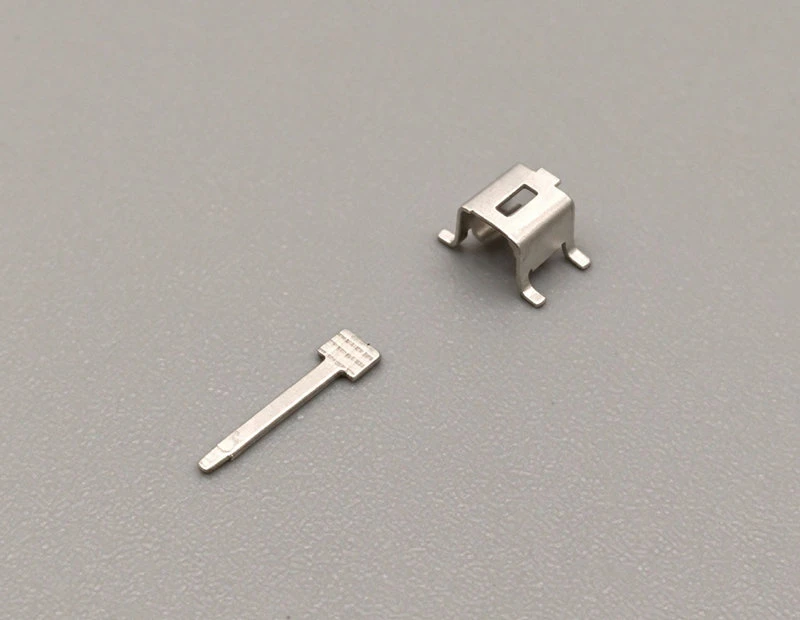

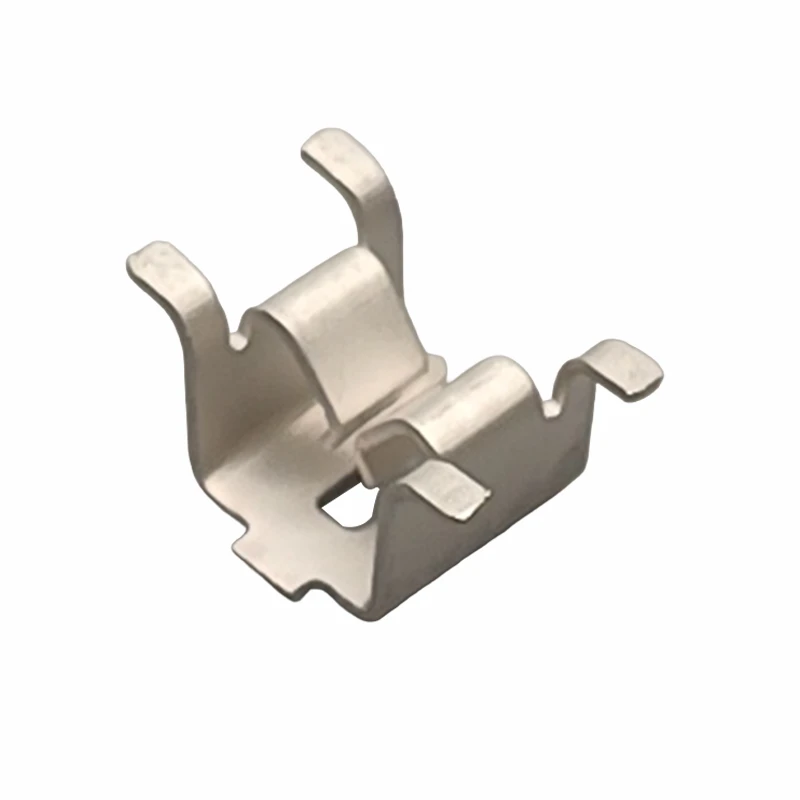

The L032 LED quick connector is a split male/female quick-connect terminal set for LED lighting modules. The female terminal is SMT-soldered to the PCB and the mating male blade completes a solderless push-fit joint, so boards can be connected without additional wiring. The parts are precision one-piece stamped with an elastic contact structure that grips firmly, resists vibration and avoids intermittent contact. Plating gives stable long-term conduction and corrosion resistance, while the split construction keeps assembly flexible and makes disassembly and maintenance easy.
Because the two halves come from separate dies, their fit depends on consistent stamping tolerance on both sides. Our progressive die tooling controls blade width and clip opening, and both parts are inspected by CCD to ±0.01mm before delivery. This keeps insertion and retention force within the designed window across batches, so a buyer building board-to-board joints at scale gets repeatable push-in feel and stable contact resistance without tuning the assembly process.
Specifications
|
Parameter |
Specification |
|
Rated Current |
1 A AC/DC |
|
Rated Voltage |
250 V AC/DC |
|
Insulation Resistance |
≥ 800 MΩ |
|
Contact Resistance |
≤ 20 mΩ |
|
Operating Temperature |
-45 °C to +125 °C |
|
Configuration |
Split female SMT terminal + male blade |
|
Connection |
Solderless push-fit |
Applications
Board-to-Board LED Connections
Split terminals let two PCBs be mated at final assembly without jumpers or manual solder joints.
LED Module Assembly
The female SMT half is placed on the driver board while the male half rides on the LED board, simplifying module building.
Maintainable LED Fixtures
The separable joint allows board replacement in the field, cutting after-sales service time.
Strip and Panel Lighting
Solderless joints keep assembly clean and reduce touch-up work on high-density lighting boards.
Customization
Terminal dimensions and plating can be customized according to the customer PCB drawing. OEM/ODM production from drawings or samples is supported with sample confirmation, and different models can be combined in one order.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. Can you produce the terminals according to our PCB drawing?
+
-
Yes. We can manufacture according to customer technical drawings or prototypes and confirm samples before mass production.
Q2. What payment terms do you support?
+
-
The standard payment term is 50% prepaid when the contract is signed and 50% paid on delivery after sample confirmation. EXW, FOB and DDP shipping terms are all available.
Q3. What is the MOQ?
+
-
The MOQ is 1 set or negotiable depending on the product. Different models and sizes can be mixed in one order.
