L079 LED Quick Connector

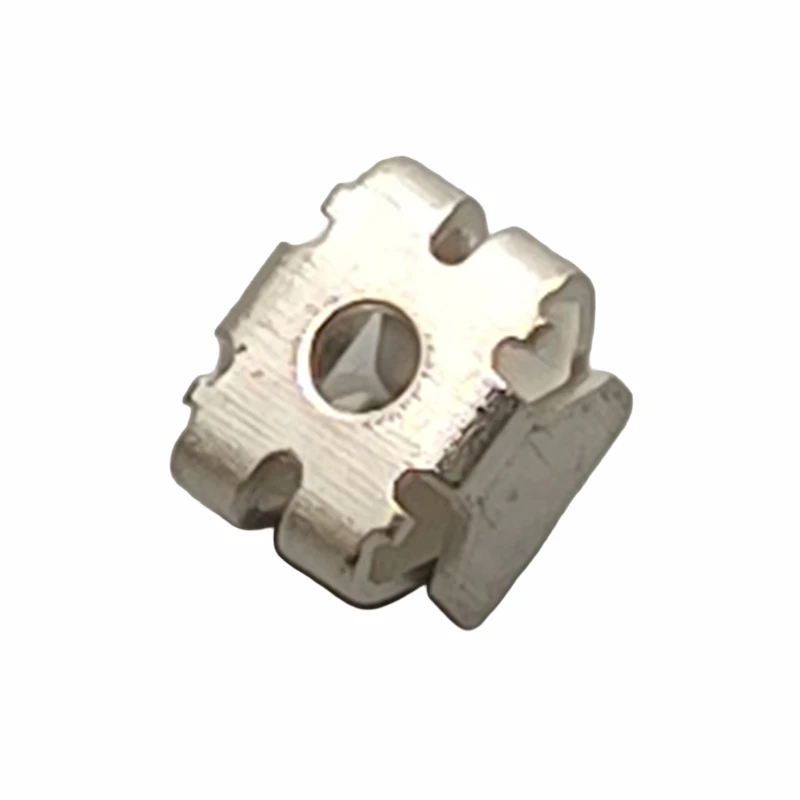

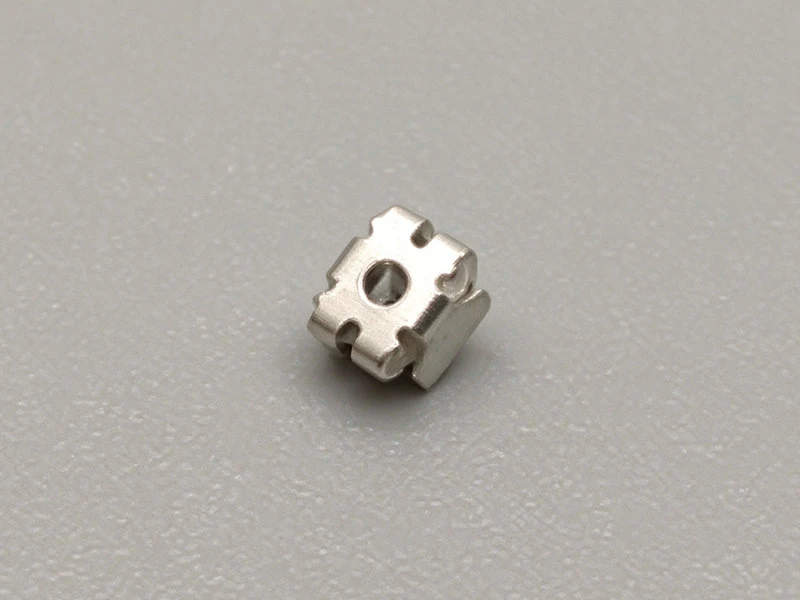

The L079 LED quick connector is an SMT female contact clip for board-to-board interconnection on LED modules. The one-piece stamped part uses a four-claw positioning structure with a center opening for stable SMT placement, while the internal elastic contact structure gives lasting spring recovery. Nickel or gold plating provides stable conductivity and corrosion resistance. The multi-directional claw grip wraps the mating terminal for even, dependable contact, with good vibration and pull-out resistance. The flat, small outline saves PCB space and needs no added soldering at the joint.
Four-claw grip force is a function of claw symmetry and material temper, both set in the die. We stamp L079 on progressive tooling and check the claw geometry by CCD inspection to ±0.01mm so all four claws engage evenly. Plating is applied to a controlled specification. For a buyer this delivers even contact pressure around the terminal, which keeps contact resistance low and stable across high-volume deliveries without assembly rework.
Specifications
|
Parameter |
Specification |
|
Material |
High-conductivity copper alloy |
|
Plating |
Nickel or gold options |
|
Mounting Type |
SMT with 4-claw positioning and center opening |
|
Structure |
Multi-directional claw grip |
|
Connection |
Solderless board-to-board |
|
Rated Current |
To Be Confirmed |
|
Rated Voltage |
To Be Confirmed |
|
Contact Resistance |
To Be Confirmed |
Applications
LED Linear Lighting
Even four-point grip keeps joints stable on long linear light boards under vibration.
Backlight Modules
The flat profile fits thin backlight boards while the center opening aids solder inspection.
LED Strip Assemblies
Solderless female contacts speed up joining of strip segments during installation.
Serviceable LED Fixtures
Reliable, separable joints support board-level replacement in the field.
Customization
Claw geometry, outline dimensions and plating can be customized to the mating terminal and PCB layout. OEM/ODM production from drawings or samples is supported with sample confirmation before mass production.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. What is the MOQ and can models be mixed?
+
-
The MOQ is 1 set or negotiable depending on the product, and different models and sizes can be mixed in one order.
Q2. Can the clip be customized to our terminal size?
+
-
Yes. Claw geometry and dimensions can be adjusted to your mating terminal, with samples confirmed before mass production.
Q3. How is quality controlled on stamped contacts?
+
-
Molds are validated through first-article checks and continuous trial runs of 500-1000 parts, and in production patrol inspection is carried out every 30-60 minutes.
