L076 LED Quick Connector

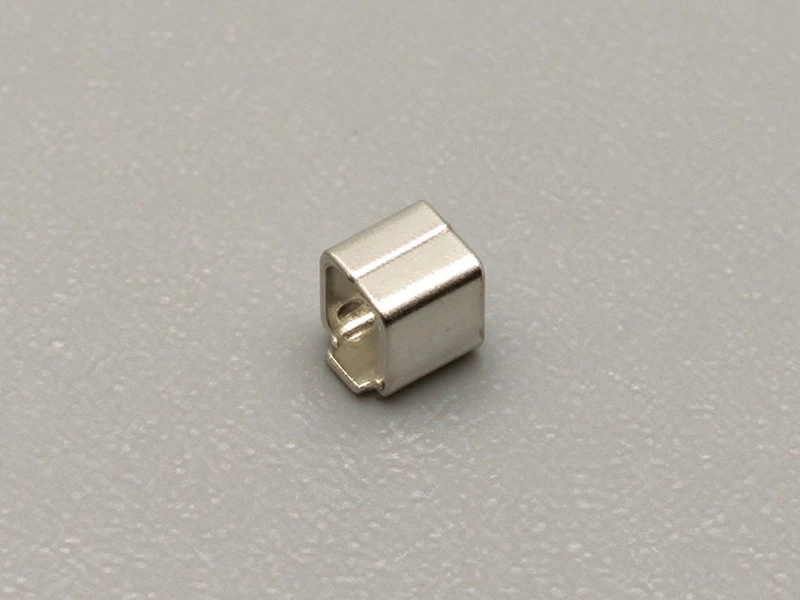

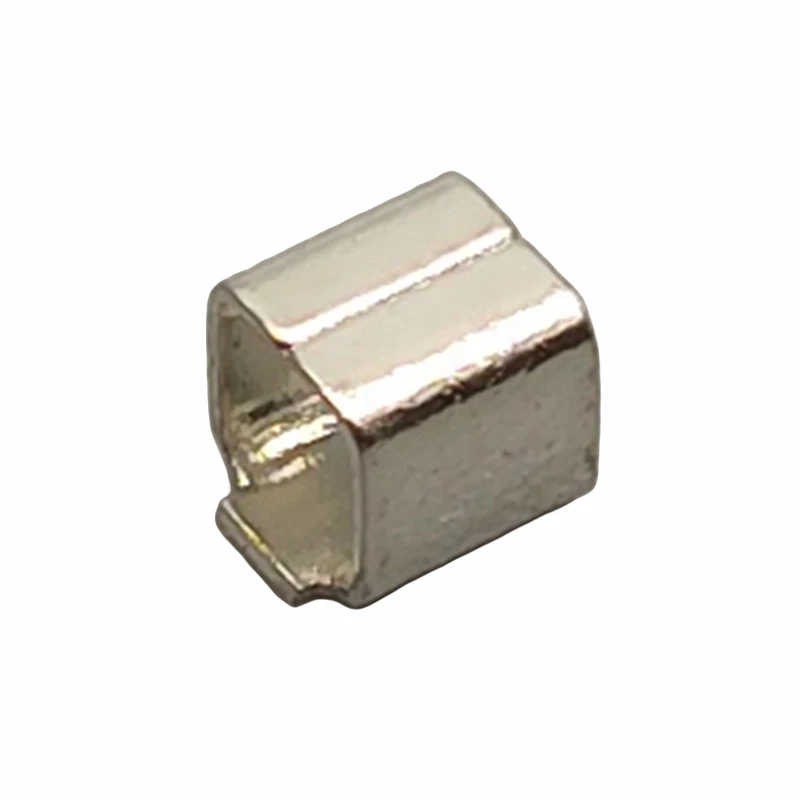

The L076 LED quick connector is a closed square SMT female terminal for board-to-board interconnection on LED modules. The terminal is wrap-formed from high-conductivity copper into a closed sleeve with an internal elastic contact, giving full-around grip of the mating blade. This enclosed structure provides large contact area, stable contact resistance and strong vibration and pull-out resistance. Nickel or gold plating is available, and the compact cubical outline takes little PCB area. The solderless joint simplifies LED luminaire assembly and supports automated SMT placement.
A closed sleeve is formed by wrapping a stamped blank into a tube, and the wrap seam and internal contact have to be controlled tightly or the grip becomes uneven. Our progressive dies and forming process hold the sleeve geometry to CCD-inspected tolerance, and plating is applied to a controlled specification. The value for a buyer is full-around grip that protects contact resistance even under heavy vibration, delivered consistently from the first sample to production batches.
Specifications
|
Parameter |
Specification |
|
Material |
High-conductivity copper |
|
Plating |
Nickel or gold options |
|
Mounting Type |
SMT (surface mount) |
|
Structure |
Closed square wrap-formed sleeve |
|
Connection |
Solderless board-to-board |
|
Rated Current |
To Be Confirmed |
|
Rated Voltage |
To Be Confirmed |
|
Contact Resistance |
To Be Confirmed |
Applications
Vibration-Prone LED Fixtures
The full-around grip keeps the blade retained where linear lights are subject to constant vibration.
High-Density LED Boards
The compact square sleeve provides strong retention without enlarging the footprint.
Backlight Modules
Enclosed contact protects against contamination inside closed backlight housings.
Modular LED Assemblies
Separable, secure joints support modular construction and field servicing.
Customization
Sleeve dimensions, internal contact geometry and plating can be customized to the mating blade. OEM/ODM production from drawings or samples is supported with sample confirmation before mass production.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. What makes the closed sleeve more reliable than open clips?
+
-
The wrap-formed sleeve contacts the mating blade around the full circumference, increasing contact area and retention force while protecting the contact from dust and deformation.
Q2. Can the sleeve size match our blade width?
+
-
Yes. Sleeve and internal contact dimensions can be customized to your blade, with samples supplied for testing.
Q3. Do you provide samples before mass production?
+
-
Yes. Samples are available before mass production; the sample fee is charged and refunded after the production order is confirmed.
