L066 LED Quick Connector

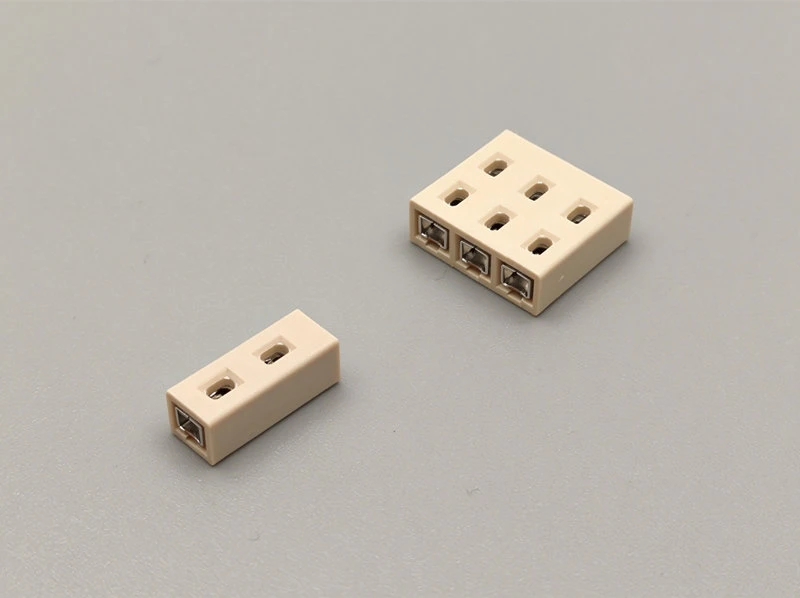

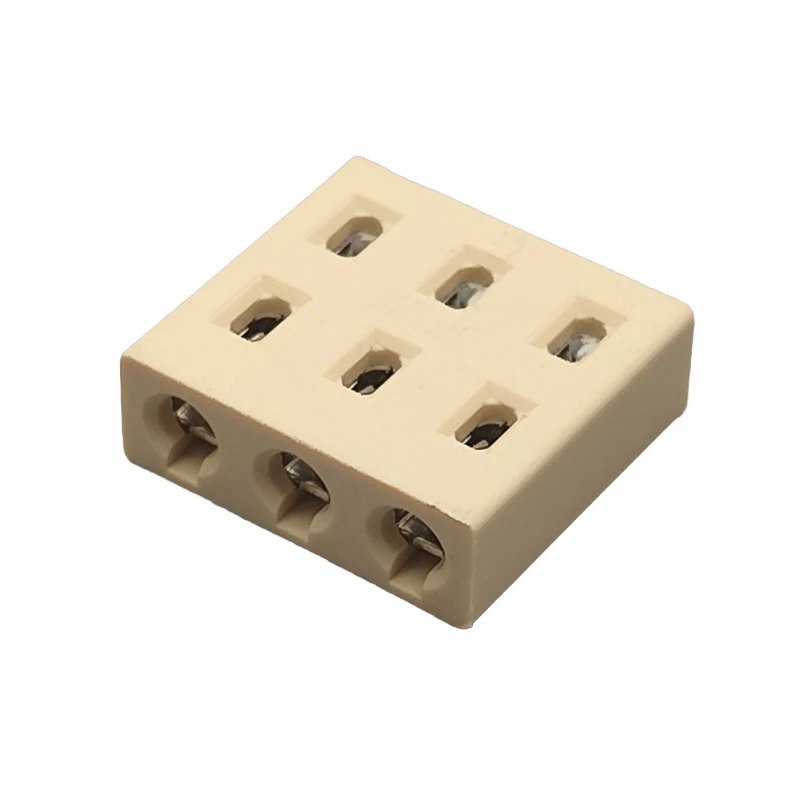

The L066 LED quick connector is a press-in solderless wire connector for LED lighting modules. A high-temperature insulating plastic housing holds elastic metal contacts, and a wire is pressed directly into the terminal to complete the connection, which shortens luminaire assembly time. Multiple position counts are available, and the structure gives reliable press-in and retention performance with durable spring force that resists loosening. The housing provides good insulation, temperature resistance and flame retardancy for safe operation in LED fixtures.

A press-in connector combines molded insulation and a stamped spring contact, and both have to stay in tolerance for the wire to seat correctly every time. Our housings are molded with tight cavity control, the springs are stamped and plated under a controlled specification, and automated assembly keeps the contact position consistent. When a customer needs a different wire entry layout or position count, the structure can be adapted from a drawing, with samples confirmed before mass production.

Specifications

Parameter	Specification
Rated Current	1 A AC/DC
Rated Voltage	275 V AC/DC
Insulation Resistance	≥ 1000 MΩ
Contact Resistance	≤ 20 mΩ
Operating Temperature	-40 °C to +110 °C
Termination	Press-in (solderless) wire connection
Position Count	Multiple options

Applications

LED Strip and Tape Wiring

Press-in termination joins power leads to strip modules in seconds without soldering or crimping tools.

Linear Lighting Profiles

The insulated housing fits inside slim profiles and keeps live terminals safely enclosed.

LED Driver Connections

The 275V rating suits wiring between drivers and LED boards in constant-voltage installations.

Lighting Modules for Field Assembly

Installers can terminate leads on site quickly, supporting modular and serviceable fixtures.

Customization

Position count, housing structure and wire entry layout can be adjusted to the project. OEM/ODM production from drawings or samples is supported with sample confirmation, and different models can be combined in one order.

Packaging & Transportation

Products are packed in ESD carrier tape or bulk cartons, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
