L036 LED Quick Connector

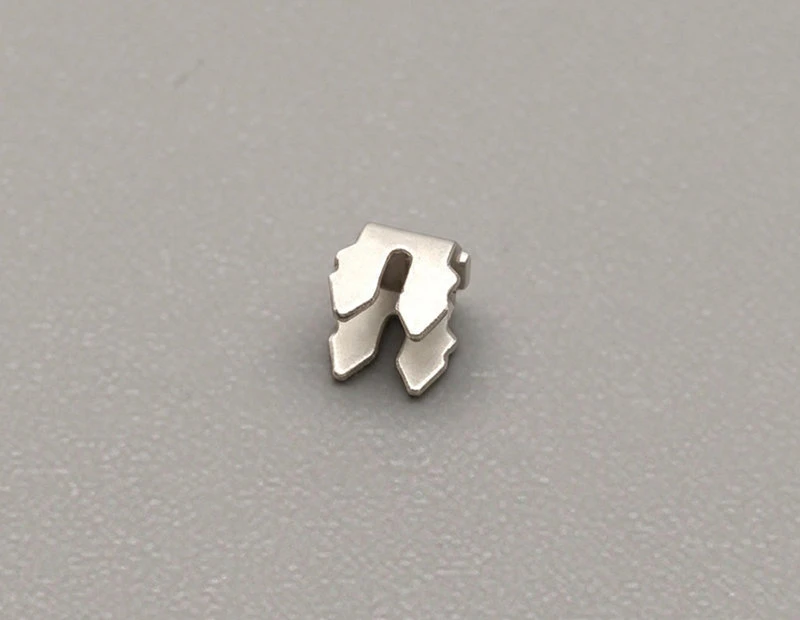

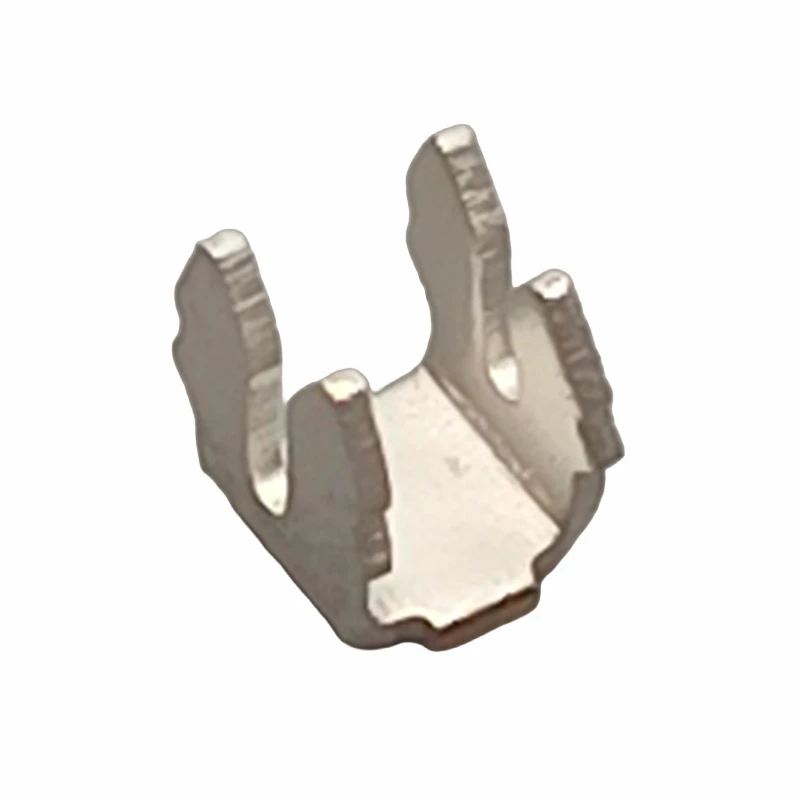

The L036 LED quick connector is an insulation-piercing (poke-in) spring terminal developed for LED strip and module wiring. The one-piece precision-stamped clip has a blade edge that cuts through the wire insulation when the conductor is pressed in, making electrical contact without stripping the wire first. The elastic clamping structure grips the cable firmly, resists vibration and keeps contact impedance stable. Because no plastic housing is required, the part stays small, saves assembly space and cuts the steps in the luminaire wiring process, raising line efficiency.
Piercing performance depends on the blade angle, hardness and clamping geometry, all of which are fixed in the stamping die. We control the die geometry, material hardness and plating together so the blade penetrates the insulation cleanly and the clamp holds the conductor with consistent force. When your cable diameter or insulation thickness changes, the clip size and blade geometry can be adjusted to suit the wire, with samples confirmed before mass production.
Specifications
|
Parameter |
Specification |
|
Rated Current |
1 A AC/DC |
|
Rated Voltage |
250 V AC/DC |
|
Contact Resistance |
≤ 20 mΩ |
|
Termination |
Insulation-piercing (poke-in), no wire stripping |
|
Housing |
Housingless metal clip |
|
Material |
High-conductivity copper, precision stamped |
|
Operating Temperature |
To Be Confirmed |
Applications
LED Strip Wiring
Wiring a strip module becomes a single press-in operation, removing stripping and soldering from the process.
Linear Light Assembly
The housingless clip fits inside slim linear profiles and reduces manual wiring time per fixture.
Backlight Modules
Compact, vibration-resistant clamping keeps internal wiring secure inside closed backlight housings.
Quick Field Connections
Installers can terminate a wire on site without tools beyond pressing the conductor into the clip.
Customization
Clip size and blade geometry can be customized to the customer's cable diameter and insulation thickness, with plating adjustable to the application. OEM/ODM production from drawings or samples is supported with sample confirmation.
Packaging & Transportation
Products are packed in ESD carrier tape or bulk reels, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. Which wire sizes can L036 handle?
+
-
The clip is produced to match the target cable diameter and insulation thickness. Please confirm your wire specification so we can supply the matching version.
Q2. Is a plastic housing required?
+
-
No. L036 is a housingless stamped clip; the conductor is pressed directly into the piercing blade, which simplifies the assembly process.
Q3. What is the delivery time for a customized clip?
+
-
Custom orders generally take 7-30 days after sample confirmation. Standard versions are produced in 5-7 days.
