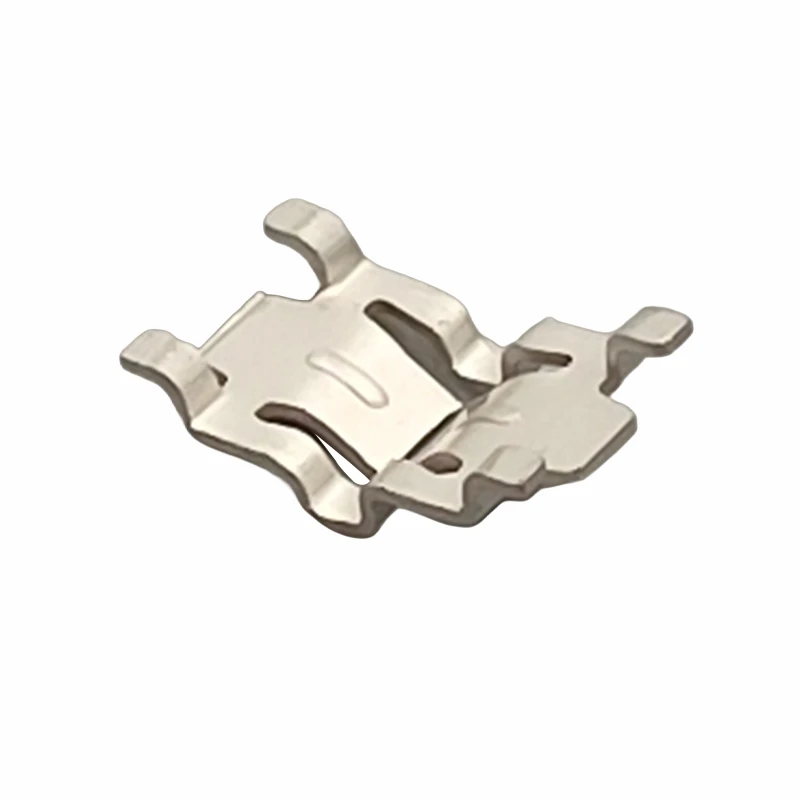

L075 LED Quick Connector

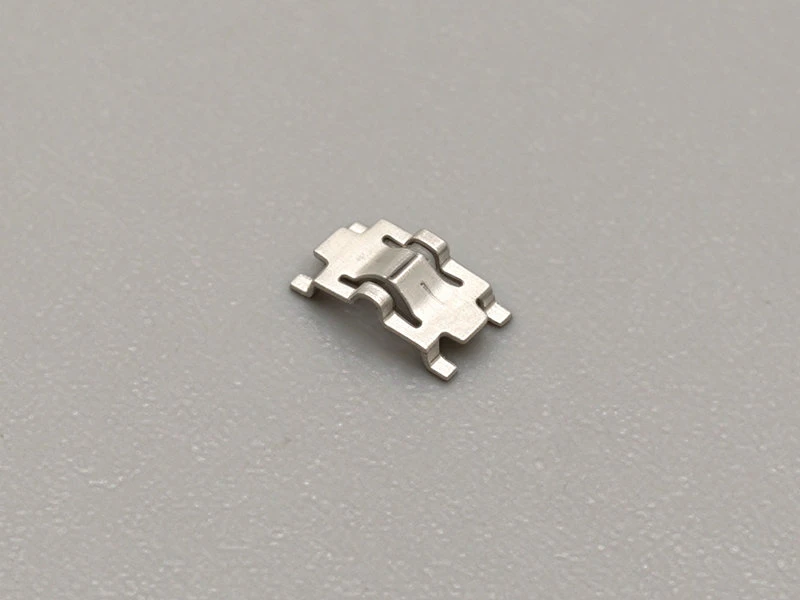

The L075 LED quick connector is an SMT female contact clip for board-to-board interconnection on LED lighting modules. The one-piece stamped part combines an elastic contact beam with a four-foot positioning structure, so the clip sits squarely on the PCB pads during SMT placement and does not shift in reflow. Nickel or gold plating is available for stable conductivity and corrosion resistance, and the spring recovers consistently over repeated mating. The flat, compact design saves board space and needs no added solder at the joint, improving throughput in luminaire assembly.
A four-foot SMT part succeeds or fails on foot flatness and coplanarity, because a single lifted foot creates an unreliable solder joint. Our stamping die holds foot geometry flat, and every part is CCD-inspected to ±0.01mm before taping so the clip sits level on the pads. For a buyer running SMT lines, this means fewer placement and reflow rejects and consistent board-to-board mating across deliveries.
Specifications
|
Parameter |
Specification |
|
Material |
High-conductivity copper alloy |
|
Plating |
Nickel or gold options |
|
Mounting Type |
SMT with 4-foot positioning |
|
Structure |
Elastic contact beam + 4 solder feet |
|
Connection |
Solderless board-to-board |
|
Rated Current |
To Be Confirmed |
|
Rated Voltage |
To Be Confirmed |
|
Contact Resistance |
To Be Confirmed |
Applications
High-Volume LED Board Assembly
The four-foot design keeps placement stable at high SMT speeds, reducing shift and rework.
LED Linear Lighting
Level seating on the pads supports reliable soldering on long, thin light boards.
Backlight Modules
Flat, compact geometry fits the tight layouts of backlight driver boards.
Automated LED Module Lines
Consistent foot coplanarity keeps pick-and-place yield high in unattended production.
Customization
Foot geometry, contact beam dimensions and plating can be customized to the PCB pad layout. OEM/ODM production from drawings or samples is supported with sample confirmation before mass production.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. How do you ensure the solder feet stay flat for SMT placement?
+
-
Foot flatness is controlled by the stamping die and verified by CCD inspection to ±0.01mm before the parts are taped.
Q2. Can the clip be customized to our pad layout?
+
-
Yes. Foot positions, contact geometry and plating can be adjusted to your PCB design, with samples confirmed before mass production.
Q3. What is the standard production time?
+
-
Standard products are produced in 5-7 days. Custom orders generally take 7-30 days after sample confirmation.
