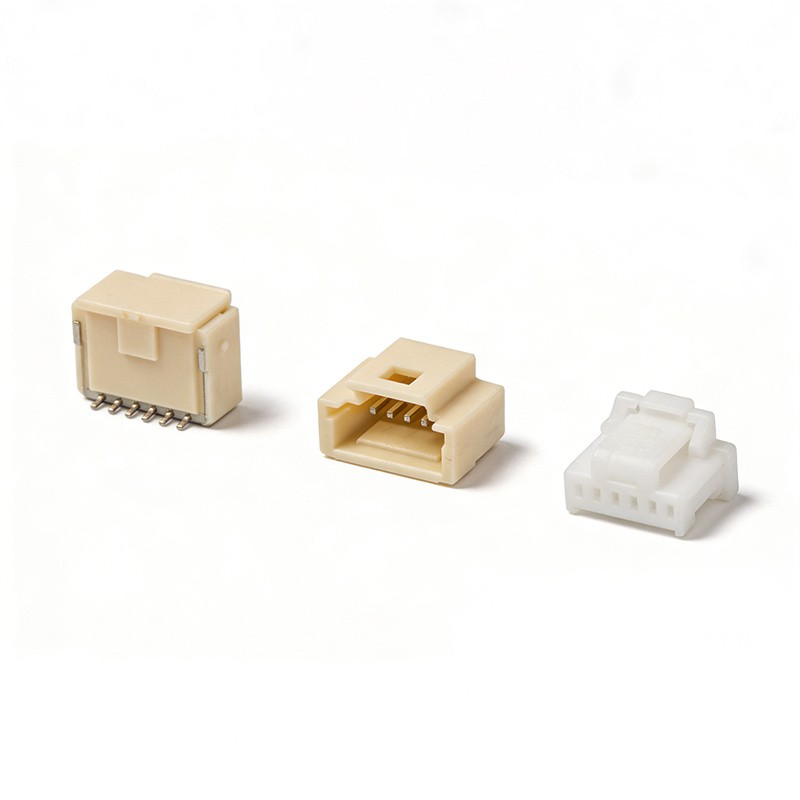

QA1008: 1.00mm Pitch Car Pigtail Connectors

Product Features

The QA1008 series is designed around the core principles of "ultimate space adaptation + reliable connection assurance", specifically for compact, small-circuit applications.

• Structural Design: Extremely streamlined layout, precise dimensional control, and optimized lightweight design maximize space utilization.

• Connection Reliability: Integrated precision internal locking mechanism strengthens the connection between male and female connectors, preventing loosening and ensuring stable electrical performance.

• Terminal Performance: Precision terminals provide weather resistance, environmental protection, and error-proof mating, addressing the core challenges of space limitations and connection reliability in small circuits.

Product Specification

Spacing	Rated current	Rated voltage	Insulation resistance	Contact resistance	Withstanding voltage	Temperature range	Wire range
1.0mm	1A AC/DC	100V AC/DC	≥100ΜΩ	≤20mΩ	300V AC/minute	-40℃～ +105℃	AWG#28~32

Product Name	Part No.	Material	Poles	QTY
Housing	QA1008Y-xx	PA66 UL94V-0	02 ~ 15	1000Pcs/Bag
Terminal	A1008T-xx	Phosphor Bronze	--	15000Pcs/Reel
Header	QA1008AWR-xx	PA9T UL94V-0	02 ~ 05 06 ~ 15	1500Pcs/Reel 900Pcs/Reel
Header	QA1008AWV-xx	PA9T UL94V-0	02 ~ 15	900Pcs/Reel

Applicable Standards

Automotive industry standards, including USCAR2.0, QC/T1067-2017, and other automotive specifications.

Applications

The QA1008 series connectors, with compact design and reliable internal locking, meet core demands for miniaturization, high reliability, and efficient space utilization across multiple fields:

1. Automotive Electronics: Miniature In-Car Units

Suitable for sensor circuits, intelligent cockpit modules, and low-voltage auxiliary circuits in new energy vehicles.

Supports miniaturization and high-density integration, withstanding in-car vibration conditions.

2. Medical Equipment: Portable & Miniature Devices

Designed for wearable monitoring devices, miniature diagnostic and treatment equipment, and medical monitoring accessories.

Meets high reliability and compliance requirements of the medical field.

3. Digital Field: Miniaturized Consumer Electronics

Suitable for smart wearables, miniature digital accessories, and small smart devices.

Balances high-frequency usage with efficient assembly needs.

In addition, the QA1008 can be extended to industrial miniature control modules, small security sensors, and other scenarios, achieving cross-domain miniaturized connection adaptation.

Production Site

The production base follows IATF16949 and ISO9001 standards, establishing a fully automated production chain:

Injection Molding Workshop

Produces high-precision miniature plastic components.

Stamping Workshop

Processes precision miniature terminals.

Assembly Workshop

Integrates automated precision assembly and online inspection.

Full-process digital management ensures traceability, consistent quality, and production efficiency.

workshop

Packaging & Transportation

Packaging: Products are packed in custom corrugated cardboard boxes with cushioning pads, secured on pallets, and covered with waterproof stretch film.
Storage: Retain original packaging in a clean, dry warehouse with controlled temperature and humidity.
Transportation: Options include road, international express, air, and sea freight. Protect against sharp objects, severe impacts, and follow safe loading/unloading procedures. Packaging materials are recycled.

Package &Transportation

Authoritative Certification + Independent Patents: Double Technical Guarantee

The company holds multiple authoritative certifications, including IATF16949, ISO9001, and ISO14001, covering production, management, and service.
It also possesses multiple utility model patents for connector structure optimization, process innovation, and precision assembly technology, providing a technological barrier and supporting product compliance, quality stability, and market competitiveness.
