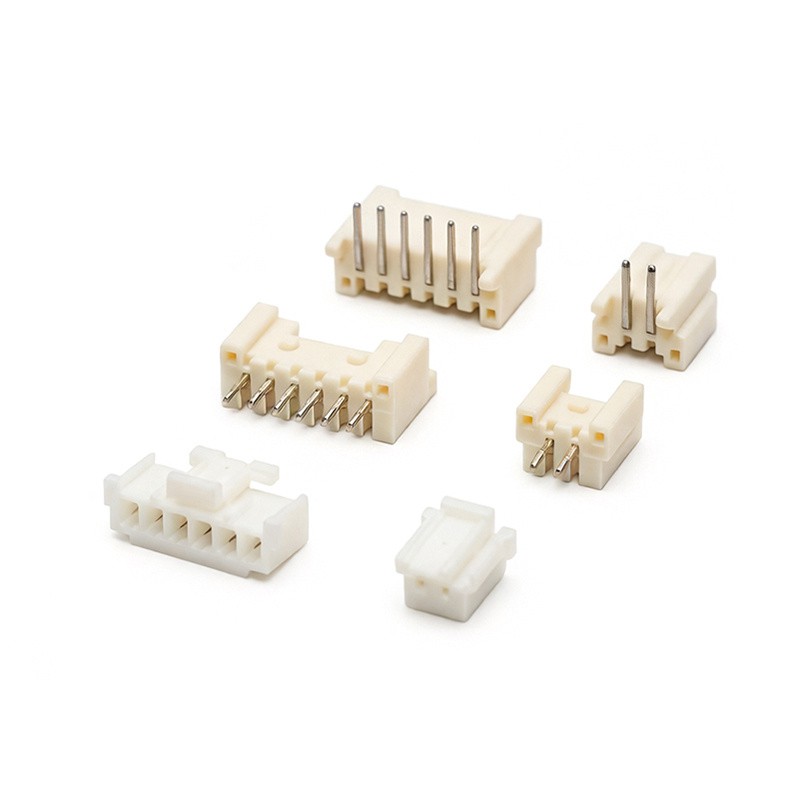

QA2007: 2.00mm Pitch OEM Automotive Connectors

QA2007 Series (MOLEX-Sherlock Connector System)

The QA2007 series is designed for ease of operation and reliable performance in demanding conditions, with core advantages of easy operation, error-proof design, and stable connection.

• Latch & Locking Design: Widened latch reduces operating torque while providing strong locking rigidity, preventing accidental unlocking.

• Anti-Misalignment Mechanism: Dual anti-misalignment system with horizontal board-side keying/locating pins and housing guide grooves with color coding prevents assembly errors.

• Terminal Design: Four-sided, four-point positioning combined with double-sided contact and an internal locking mechanism forms a "triple protection" system, increasing terminal retention force by over 25%.

• Materials: Housing is made of PA66 + glass fiber reinforced flame-retardant plastic; terminals are high-purity oxygen-free copper with silver plating, suitable for complex automotive environments.

Applicable Standards

Automotive industry standards, including USCAR2.0, QC/T1067-2017, and other automotive specifications.

Application Scenarios

The QA2007 series is suitable for three major fields:

1. Automotive Electronics

Applications: Car alarm systems, GPS positioning systems.

2. Security Equipment

Applications: Outdoor and harsh-environment monitoring terminals.

3. Consumer Digital Products

Applications: Game consoles, TVs, smart set-top boxes, and other devices.

It can also be extended to other consumer scenarios, achieving cross-industry adaptability.

The production process uses a dual-branch parallel model for copper strip and injection molding raw materials:

• Copper strips are stamped and electroplated to form terminals.
• Injection molding raw materials are processed into connector housings and other components.
• Components are combined and undergo pin assembly, CCD visual inspection, automated taping, and full-process final inspection.
• Qualified products are stored and shipped according to orders. The entire process complies with IATF16949 and ISO9001 standards.

• Packaging: Industrial-standard packaging with dedicated cartons, secured on pallets, suitable for forklift handling.
• Storage: Retain original packaging; store in a clean, dry, light-protected warehouse with controlled temperature and humidity.
• Transportation: Options include road, international express, air, and sea freight. Protect against sharp objects, heavy impacts, and ensure safe loading/unloading. Packaging materials should be recycled.

The company holds multiple authoritative certifications, including IATF16949, ISO9001, and ISO14001.
It also possesses several utility model patents focused on connector structure optimization, manufacturing process innovation, and precision assembly technology, providing technological barriers and core support for product compliance, quality stability, and market competitiveness.
