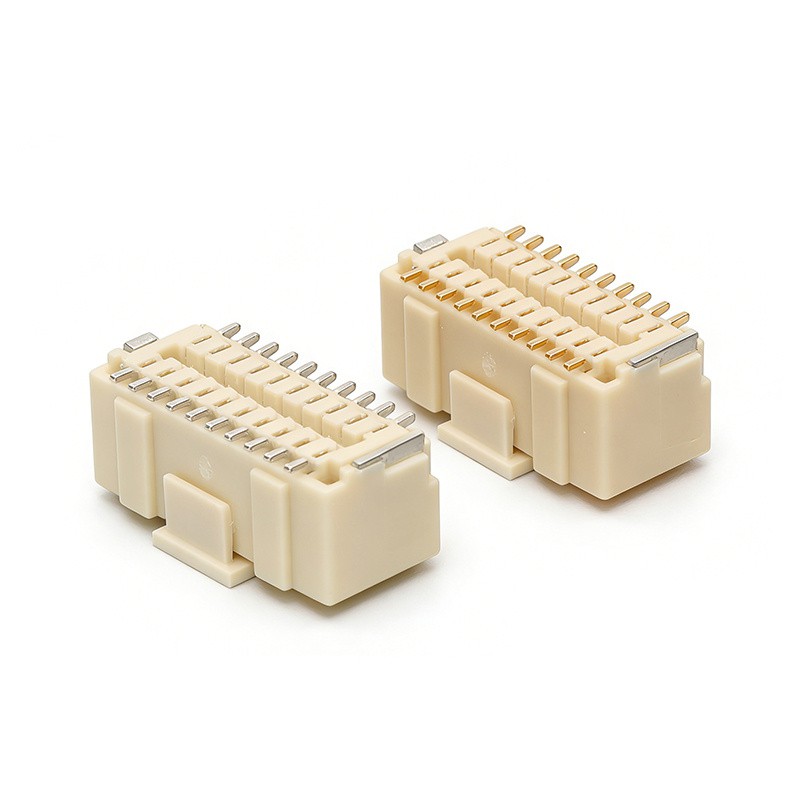

A1008: 1.00mm Pitch Car Headlight Connector
Product Features
20-Circuit Headlight Harness Integration
The 2.0mm dual-row interface combines 20 lighting and control circuits inside one connector housing. Headlamp assemblies carrying low beam, high beam, daytime-running-light, leveling and feedback lines complete every circuit in one mating operation, removing separate plugs and reducing harness branches.
Secondary Lock Against Terminal Back-Out
A secondary lock fixes the crimp terminals behind the primary retention structure. Continuous road vibration, harness pulling and repeated vehicle movement cannot push a partially seated terminal backward, so the headlight circuits remain engaged after final assembly.
Product Specification
|
Spacing |
Rated current |
Rated voltage |
Insulation resistance |
Contact resistance |
Withstanding voltage |
Temperature range |
Applicable wire diameter |
|
1.0mm |
1A AC/DC |
100V AC/DC |
≥100MΩ |
≤20mΩ |
300V AC/minute |
-40℃～ +105℃ |
AWG#28～32 |
|
Product Name |
Part No. |
Material |
Poles |
QTY |
|
Housing |
A1008Y-2xx |
PA66 UL94V-0 |
2*10-2*25 |
1000Pcs/Bag |
|
Terminal |
A1008T-xx |
Phosphor Bronze |
-- |
15000Pcs/Reel |
|
Header |
A1008AWR-2xx A1008AWV-2xx |
PA9T UL94V-0 |
2*10-2*25 |
600Pcs/Reel 800Pcs/Reel |
Applicable Standards
Automotive industry standards, including USCAR 2.0, QC/T 1067-2017, and other relevant automotive standards.
Application Scenarios
The JKUN A1008 series connectors feature an internal locking mechanism, four-sided fully enclosed terminals, and a double-sided contact design, ensuring high reliability and strong environmental adaptability. They are suitable for automotive electronics (complex on-board conditions) and medical equipment (high safety requirements), and have passed multiple certifications to guarantee stable equipment performance.
Production Process
JKUN connectors utilize a dual-branch parallel production process, including stamping, injection molding, assembly, testing, taping, and full inspection, to ensure consistent product quality.
Package & Transportation
They employ standardized, high-protection packaging and diversified transportation solutions, with strict control of warehousing environments to ensure stable product performance and secure delivery.
Authoritative Certification + Independent Patents: Dual Technical Assurance
JKUN connectors have obtained multiple certifications, including IATF16949, and hold independent patents, providing both compliance and technological assurance.
Frequently Asked Questions
Can I get samples before placing a bulk order?
-
Yes. We provide up to 10 free standard samples. You only pay the shipping cost.
What is the standard lead time?
-
Standard orders are completed within 7-10 days after order confirmation.
What should be checked before replacing an existing headlight connector?
-
Confirm the bulb interface, terminal layout, keying position, wire gauge and operating temperature.
Can you cross-reference an OEM connector part number?
-
Yes. Send the OEM number, connector photos and mating dimensions, and we will identify the matching model.
