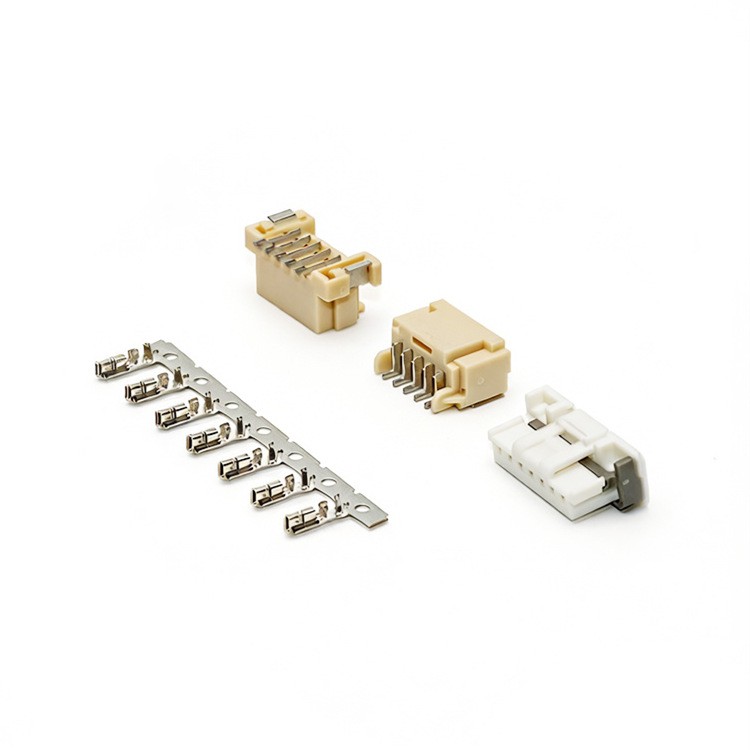

QA2009-A2019: 2.00mm Pitch Automotive Light Connectors
Product Features
3A Power Through a 2.0mm Interface
The A2008 automotive lighting platform carries 3.0A at 250V AC/DC within a 2.0mm contact pitch. Headlamp and lighting-control boards transmit power and control circuits through a compact connector without increasing the PCB connection area.
Positive Lock Under Harness Movement
The PA-compatible housing and automotive lock structure hold the wire side against the board header after mating. Cable routing force, road vibration and repeated thermal expansion do not separate the connection or interrupt the lighting circuit.
2-15 Circuits Across -40°C to +125°C
Configurations from 2 to 15 positions cover simple lamp power inputs and multi-function lighting modules within one connector family. The -40°C to +125°C operating range maintains the same interface through cold starts and sustained heat inside enclosed lamp housings.
Product Specification
|
Spacing |
Rated current |
Rated voltage |
Insulation resistance |
Contact resistance |
Withstanding voltage |
Temperature range |
Applicable wire diameter |
|
2.0mm |
3A AC/DC |
125V AC/DC |
≥1000ΜΩ |
≤25mΩ |
1000V AC/minute |
-40℃～ +125℃ |
AWG#22～24 |
|
Product Name |
Part No. |
Material |
Poles |
QTY |
|
Housing |
A2019Y-xx |
PBT UL94V-0 |
02 ~ 15 |
1000Pcs/Bag |
|
TPA |
A2019PS-xx |
PBT UL94V-0 |
02 ~ 15 |
1000Pcs/Bag |
|
Terminal |
QA2019T-xx |
Phosphor Bronze |
-- |
10000Pcs/Reel |
|
Header |
QA2009AWR-xx QA2009AWV-xx |
PA9T UL94V-0 |
02 ~ 15 |
600Pcs/Reel 500Pcs/Reel |
Applicable Standards
Automotive industry standards, including USCAR 2.0, QC/T 1067-2017, and other relevant automotive standards.
Application Scenarios
The QA2009–A2019 connector is designed for automotive LED headlights, featuring a wide operating temperature range and multiple anti-loosening mechanisms, ensuring stable operation even under current fluctuations.
Production Process
JKUN connector production involves two parallel branches: copper strip stamping and plating, and injection molding of raw materials. These branches converge for pin pressing, CCD inspection, tape-and-reel packaging, and final inspection, with qualified products then stored and shipped.
Production Site
JKUN's connector production base is organized into injection molding, stamping, and assembly workshops, covering the entire production process to ensure product quality and timely delivery.
Package & Transportation
JKUN packaging and transportation adhere to industrial standards, including protective packaging and standardized warehousing. Various logistics options are offered, including full truckload, express delivery, air freight, and sea freight, ensuring efficient and safe delivery.
Authoritative Certification + Proprietary Patents: Dual Technical Assurance
JKUN ensures dual assurance of compliance and technology for its connector products through authoritative certifications such as IATF16949 and proprietary patents for connector structure optimization.
Frequently Asked Questions
Can I get samples before placing a bulk order?
-
Yes. We provide up to 10 free standard samples. You only pay the shipping cost.
What is the MOQ for automotive light connectors?
-
The MOQ depends on the selected part number, component type and order requirements. Please provide the required number of poles, part type and estimated quantity, and we will confirm the applicable MOQ.
How do I identify the correct connector for an existing vehicle lamp?
-
Send the OEM part number, connector photos, pin layout, bulb type and wire gauge.
Can the connector be supplied as a finished pigtail?
-
Yes. Specify the wire length, gauge, color and circuit sequence for the complete pigtail.
