A1257: 1.25mm Pitch High Current Wire to Board Connector
Product Features

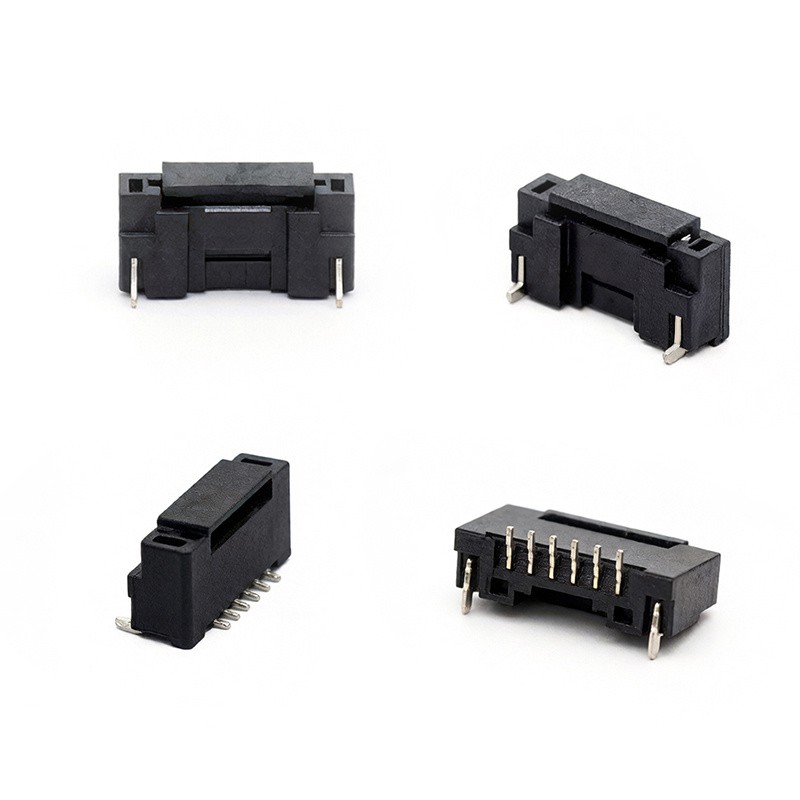

The A1257 series is a high-density wire-to-board connector specifically designed for consumer electronics and compact smart devices. Featuring ultra-narrow pitch design, high stability, flame-retardant materials, and SMT compatibility, the series focuses on improving space utilization and connection reliability in miniaturized applications while providing a cost-effective interconnection solution.
Ultra-narrow Pitch Design
The standardized 1.25 mm pitch is compatible with PCB mounting and supports 6P, 12P, and 20P configurations, effectively saving board space and meeting the requirements of high-density circuit designs.
Excellent Electrical Performance
Contact resistance ≤20 mΩ, insulation resistance ≥100 MΩ, dielectric withstand voltage of 500 V AC for 1 minute, and a rated current of 1.0 A (AC/DC), satisfying low-power signal and power transmission requirements.
High-quality Materials and Manufacturing
The housing is made of LCP UL94 V-0 flame-retardant plastic, offering excellent heat resistance during reflow soldering. The terminals use a brass base material with tin plating, while the solder pads are made of brass with matte tin plating, enhancing electrical conductivity, oxidation resistance, and wear resistance.
Strong Assembly Adaptability
Fully compatible with SMT automated placement processes, the connector features an integrated anti-misinsertion guide design and supports customized pin-count configurations, effectively reducing assembly error rates.
Product Specification
|
Pitch |
1.25mm |
|
Rated Current |
1.0A AC/DC |
|
Rated Voltage |
125V AC/DC |
|
Insulation Resistance |
≥100ΜΩ |
|
Contact Resistance |
≤20mΩ |
|
Withstand Voltage |
500V AC/minute |
|
Temperature Range |
-25℃ ～ +85℃ |
Application Scenarios
With its 1.25 mm ultra-narrow pitch, stable electrical performance, flame-retardant materials, and SMT compatibility, the A1257 series precisely meets the core requirements of consumer electronics and compact smart devices for miniaturization, high density, low power consumption, and high reliability. Typical applications include:
• Wireless Audio Devices: Suitable for TWS earphone charging cases and mini Bluetooth speakers, ensuring stable charging and audio signal transmission.
• Smart Wearable Devices: Used in smart watches, smart bracelets, and bone-conduction headphones, adapting to compact PCB layouts and daily vibration conditions.
• Small Smart Home Devices: Applicable to miniature environmental sensors and fingerprint modules in smart door locks, supporting long-term stable operation.
• Portable Digital Accessories: Suitable for miniature power banks and mini cameras, compatible with lightweight designs and outdoor usage conditions.
• Industrial and Medical Equipment: Supports board-level connections in industrial miniature sensors and portable medical monitoring devices such as pulse oximeters.
Production Process

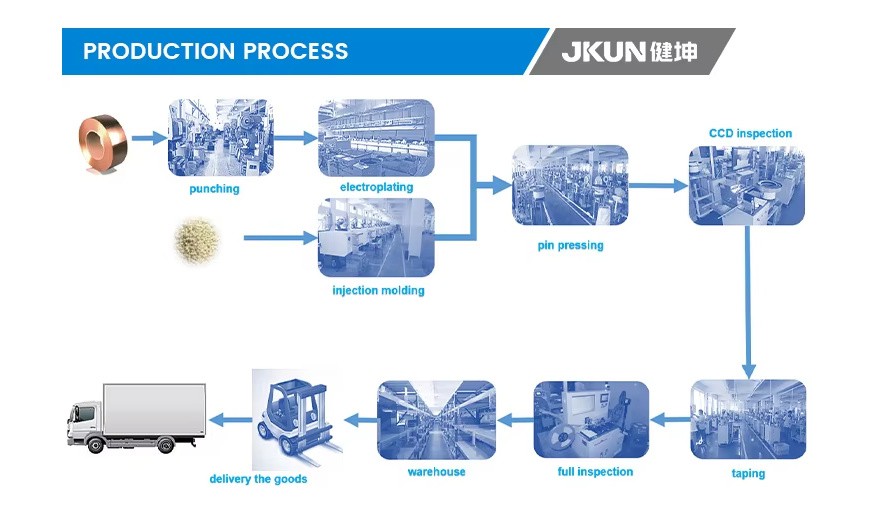

JKUN connectors are manufactured using a dual-branch precision process to ensure dimensional accuracy and electrical stability.
Packaging & Transportation
Standardized packaging, regulated storage, flexible transportation, and protection.
Authoritative Certifications and Independent Patents: Dual Technical Assurance
JKUN Connectors possesses multiple system certifications, including IATF 16949, and independent patents for structural optimization, ensuring product compliance and stable, high-quality performance.
