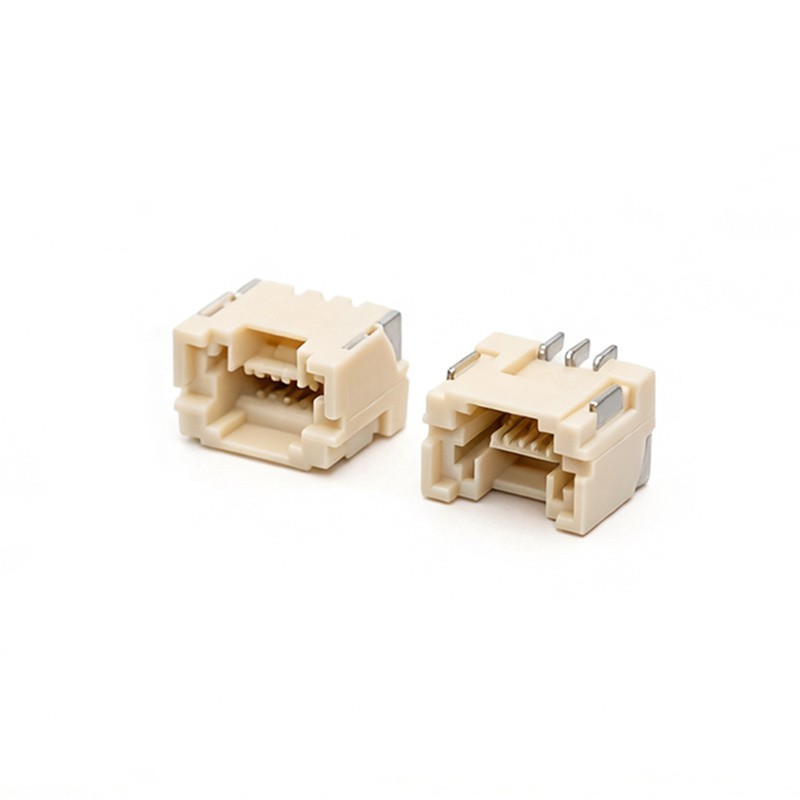

A1507: 1.50mm Pitch Direct Wire to Board Connector
Product Features
A1507 Series (Compatible with JST ZE1.5)
The A1507 series connectors are designed for applications with stringent reliability requirements, including automotive electronics, medical equipment, and consumer digital products. Based on the core design concept of secure locking and precision contact, the series focuses on three key performance demands - anti-loosening, low transmission loss, and high adaptability - providing a high-reliability interconnection solution across multiple industries.
Secure locking mechanism
The connector integrates a dedicated positive locking structure with a foolproof design to prevent accidental disengagement and assembly errors, enhancing reliability under vibration and complex operating conditions.
Precision terminal configuration
U-shaped terminals, C-shaped board terminals, and a double-sided point contact design are adopted to improve mating accuracy and contact stability, ensuring low-loss and stable electrical transmission.
High-quality material selection
The housing is manufactured from PA66 / PA9T UL94 V-0 flame-retardant material. The terminals are made of phosphor bronze with tin plating. The operating temperature range is −40 °C to +105 °C, meeting the demanding requirements of automotive, medical, and consumer applications.
Product Specification
|
Pitch |
Rated Current |
Rated Voltage |
Insulation Resistance |
Contact Resistance |
Withstand Voltage |
Temperature Range |
Wire Range |
|
1.5mm |
2A AC/DC |
100V AC/DC |
≥500ΜΩ |
≤20mΩ |
500V AC/minute |
-40℃～ +105℃ |
AWG#24~28 |
|
Product Name |
Part No. |
Material |
Poles |
QTY |
|
Housing |
QA1507Y-xx |
PA66 UL94V-0 |
02 ~ 16 |
1000Pcs/Bag |
|
Terminal |
QA1507T-xx |
Phosphor Bronze |
-- |
18000Pcs/Reel |
|
Header |
QA1507ARW-xx |
PA9T UL94V-0 |
02 ~ 16 |
800Pcs/Reel 600Pcs/Reel |
Applicable Standards
Automotive industry standards, USCAR 2.0, QC/T 1067-2017, Other relevant automotive standards.
Applications
The A1507 series connectors feature a secure locking mechanism and precision terminals, making them suitable for automotive lighting, medical equipment, and consumer electronics applications. They meet strict requirements for connection safety, electrical stability, and assembly compatibility. In the automotive sector, they are ideal for main and ambient lighting; in the medical field, for portable monitoring and diagnostic equipment; and in consumer electronics, for smart wearables and miniature accessories. The connectors can also be applied to industrial control, security sensors, and other applications.
Production Process
The production process adopts dual-branch parallel manufacturing, with standardized and controllable procedures, including assembly and multi-step inspection.

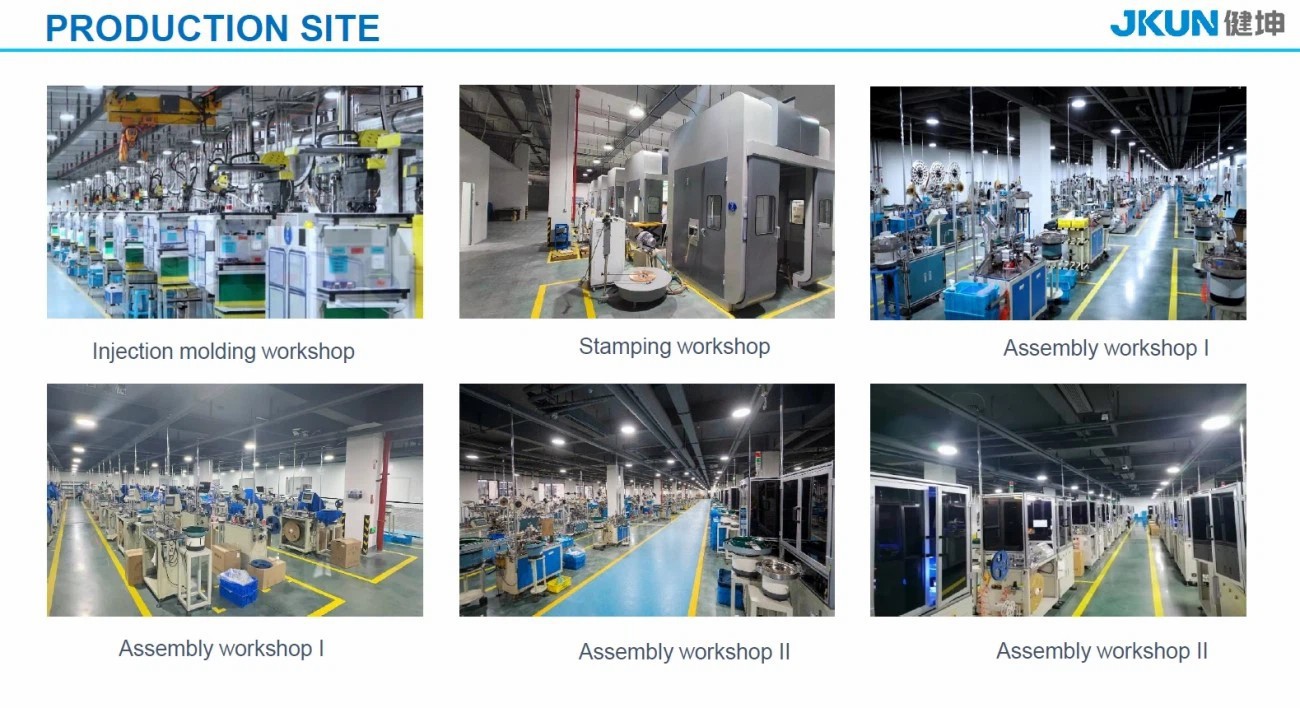

Production Site
JKUN's core production base, equipped with specialized workshops, operates a closed-loop system to ensure efficiency, quality control, and product consistency.
Packaging & Transportation
Products are packaged in a standardized manner suitable for forklift handling, with proper storage and transportation protection, and environmentally friendly packaging materials are used for recycling.
Quality Assurance
The company holds multiple authoritative certifications and patents, with a full-process quality traceability system that guarantees stable product quality.
