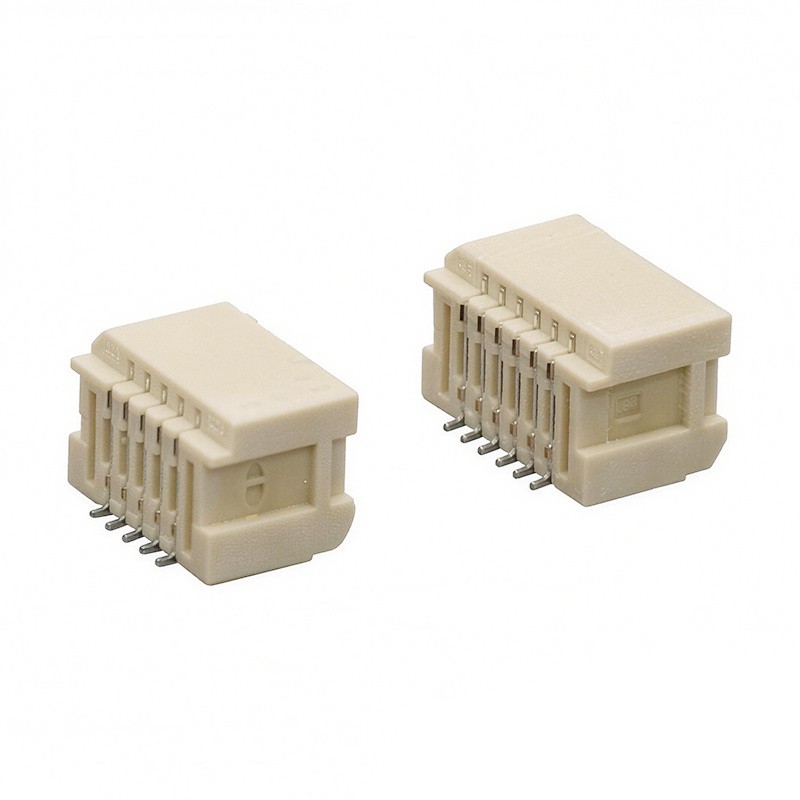

A10013: 1mm Pitch Wire to Board Connector
Product Features
A10013 Series Double-Row Connectors (Compatible with JST SHLDP Series)
The A10013 series is a 1.0mm pitch wire-to-board connector specifically designed to meet the miniaturization and high-density integration requirements of consumer electronics. The series includes A10013AWR/AWV-SMT surface-mount board-side connectors, with fully developed matching wire-end housings and terminals, providing an efficient connection solution characterized by a small pitch, high compatibility, and ease of assembly.
20-50 Circuits in a Secure Dual-Row Interface
The SHLD-compatible structure provides 20, 30, 40 and 50 circuits in a 1.0mm dual-row layout. High-density display and control boards consolidate large signal groups into one connector without consuming the board-edge length required by a single-row design.
Secure Lock Prevents Incomplete Mating
Outer-lock and side-lock configurations hold the housing at the fully mated position. Assembly force, cable routing and repeated equipment movement cannot leave the connector partially engaged or release it after installation.
Top- and Side-Entry on an SHD-Compatible Footprint
Top-entry and side-entry SMT headers support different cable paths while retaining a PCB layout compatible with the SHD family. Existing boards move to the locking version without relocating the connector footprint, while each contact carries 1A at 50V AC/DC.
Product Specification
|
Pitch |
1.0mm |
|
Rated Current |
1.0A AC/DC |
|
Rated Voltage |
50V AC/DC |
|
Insulation Resistance |
≥100ΜΩ |
|
Contact Resistance |
≤30mΩ |
|
Withstand Voltage |
500V AC/minute |
|
Temperature Range |
-25℃ ～ +85℃ |
Applicable Standards
EIA-364
Application Scenarios
The A10013 series 1.0 mm pitch wire-to-board connector features an ultra-narrow pitch, SMT mounting, plug-and-play functionality, and an eco-friendly design. It precisely meets the core requirements of miniaturization and high-density applications in consumer electronics and is widely used in smart wearables, wireless audio devices, portable digital devices, smart home devices, and compact audio-visual and entertainment equipment. The connector ensures stable signal and power transmission, supporting efficient mass production and reliable device operation.
Production Process
The production process consists of two lines: one for copper strips and one for injection molding. After pressing, testing, tape-and-reel packaging, and final inspection, the products are stored and shipped.

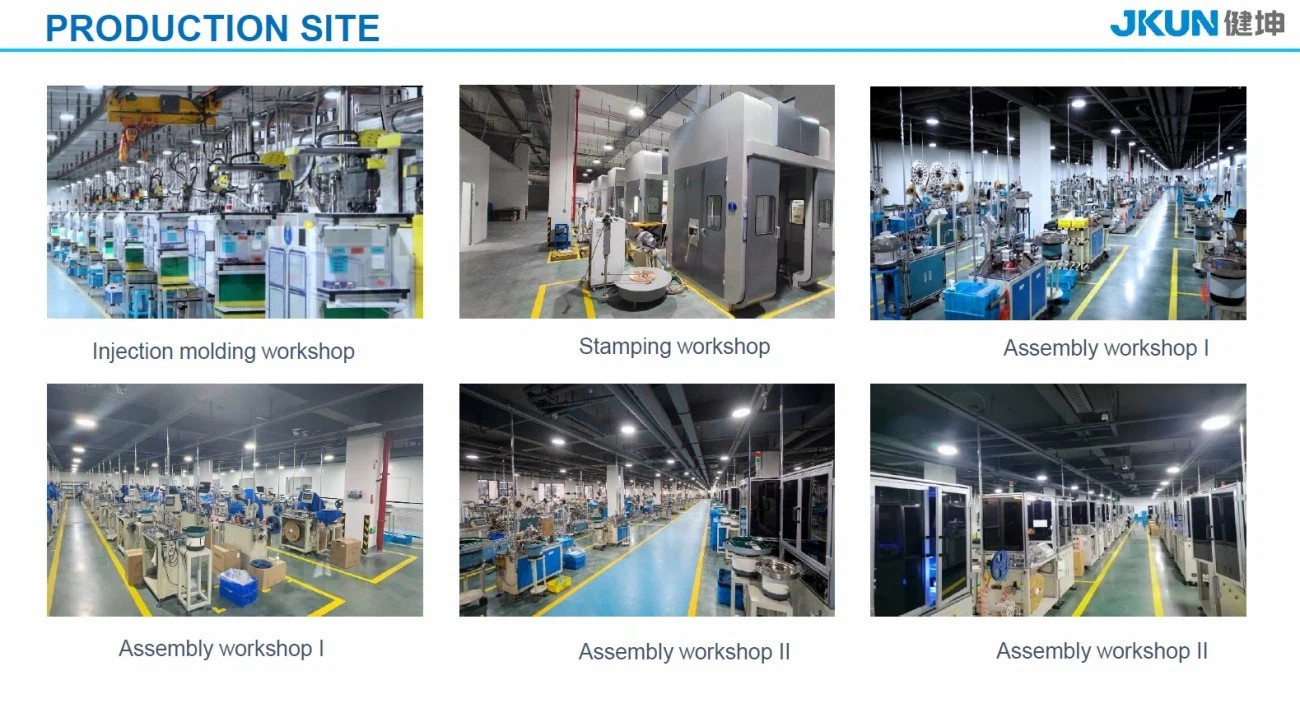

Production Site
Injection molding, stamping, and assembly workshops operate in coordination, with a fully automated process that ensures both efficiency and quality.
Packaging & Transportation
JKUN employs standardized packaging, follows strict storage and transportation procedures, and offers diversified logistics solutions to ensure product safety.
Quality Assurance & Quality Control
With authoritative certifications at its core, JKUN has established a quality system based on "full-process control + full-lifecycle traceability," ensuring product compliance and stability while meeting global market access requirements.
Frequently Asked Questions
Can I get samples before ordering?
-
Yes. We provide up to 10 free standard samples. You only pay the shipping cost.
What is the MOQ?
-
The MOQ follows the minimum standard packing quantity of the selected model.
Can the cable side be supplied pre-crimped?
-
Yes. Terminals can be crimped to the specified wire and inserted according to the approved circuit sequence.
How do I prevent reversed cable assembly?
-
Define pin 1, wire sequence, cable exit direction and keying position in the assembly drawing.
