F1007: 1.0mm Pitch FPC to Wire Connector
Product Features

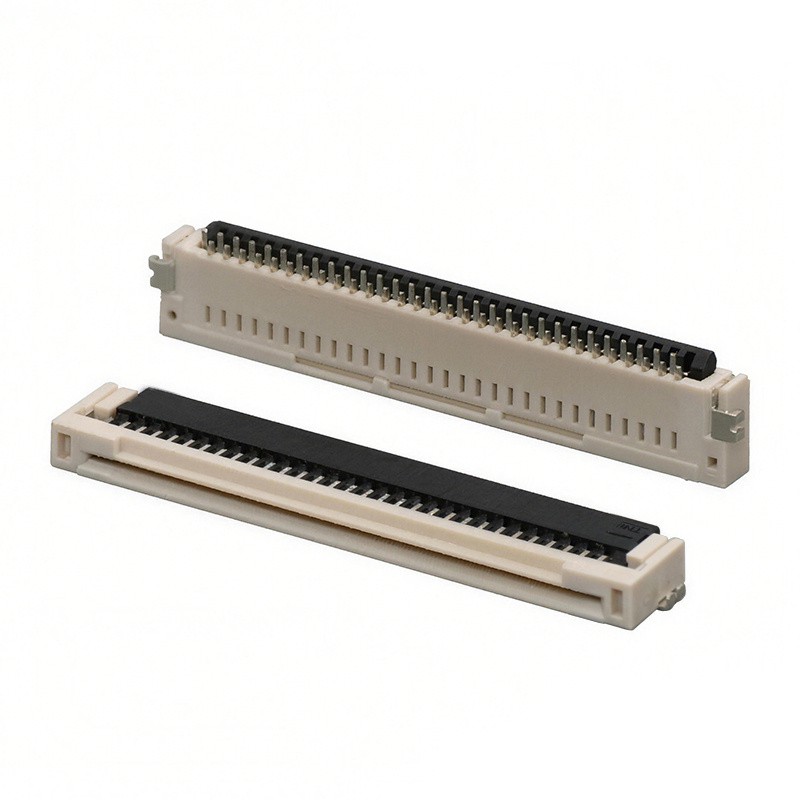

The F1007 is a 1.0 mm pitch rear-flip horizontal FPC-to-wire connector with a compact board height of only 2.7 mm. It is designed for applications requiring miniaturized design, high reliability, and space efficiency. Key features include:
• Ultra-Compact Design: 1.0 mm pitch with a 2.7 mm board height, ideal for high-density wiring applications in smart wearables, portable electronics, and automotive devices.
• Double-Sided Contact: Supports FFC/FPC contact on both sides, eliminating the need to distinguish front and back.
• Zero Insertion Force (ZIF) Assembly: Rear flip-cover structure integrates a ZIF mechanism, reducing assembly effort and improving operational efficiency.
• Reinforced Locking Structure: Provides high retention force, resisting vibration, impact, and complex working conditions to prevent accidental disconnection.
• Automotive Standard Compliance: Meets USCAR2.0 and QC/T1067-2017, ensuring suitability for automotive applications.
Product Specification
|
Spacing |
Rated current |
Rated voltage |
Insulation resistance |
Contact resistance |
Withstanding voltage |
Temperature range |
Development hole positions |
Existing hole positions |
|
1.0mm |
1.0A AC/DC |
100V AC/DC |
≥500ΜΩ |
≤30mΩ |
250V AC/minute |
-25℃ ～ +85℃ |
Design pin positions 04–40, expand the number of pins as needed. |
30 |
|
Product Name |
Part No. |
Product Height |
Material |
Poles |
QTY |
|
Right Angle Contact |
F1007AWR |
2.7mm |
LCP UL94V-0 |
04~30 |
2000Pcs/Reel |
Applicable Standards
Automotive industry standards: USCAR2.0, QC/T1067-2017, and related regulations for high-reliability connectors.
Application Scenarios
The F1007 connector is widely used in automotive and electronic applications:
• Vehicle Display Screens: Connecting displays to motherboards with high-resolution signal transmission.
• Camera Modules: Integration with reversing cameras and surround-view systems.
• Sensor Connections: Connecting radar, lidar, and other sensors.
• Battery Management Systems (BMS): Signal transmission in electric vehicle battery packs.
Production Process

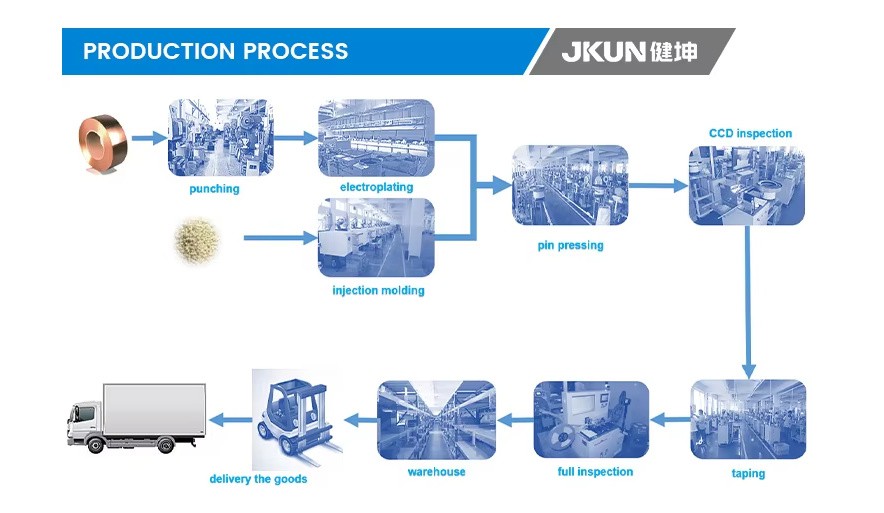

JKUN connectors are produced through a dual-branch parallel production process, with finished products delivered after processing, assembly, and testing.
Production Site
JKUN's core connector manufacturing base covers the entire production process, ensuring precise division of labor and efficient production.
Packaging & Transportation
JKUN connectors use standardized packaging and must be stored in a clean, dry, and dark environment. Multiple transportation methods are available, including full truckload and international express shipping, with impact protection during transit and proper handling of packaging materials.
Quality Assurance & Control

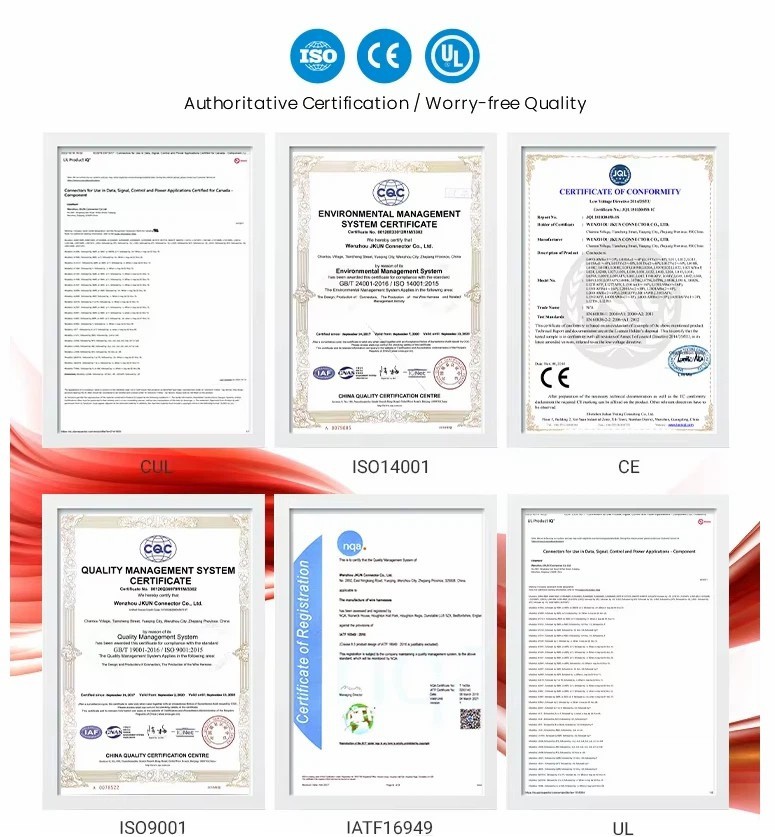

Jiankun Connector adheres to international standards and industry-specific quality processes, ensuring full product compliance, stability, and reliability.
