Wire To Wire Plug Connectors

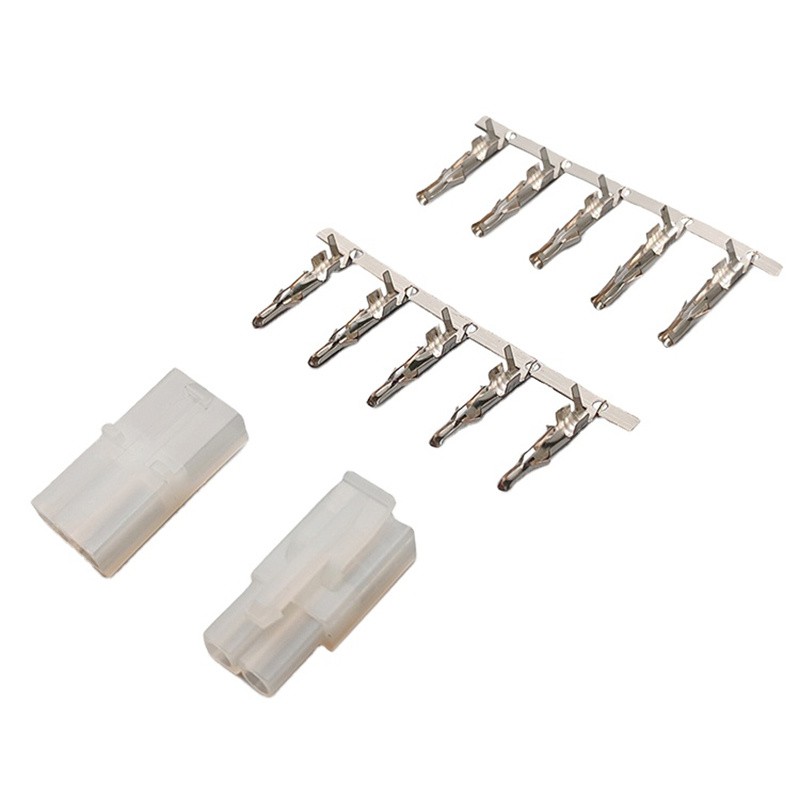

C6201: 6.20mm Pitch Wire to Wire Plug Connectors

The C6201 series (compatible with L6.2 specifications) is a wire-to-wire connector solution designed for 15 A high-current transmission. It features a transparent visible housing and a direct wire-to-wire connection structure. Its core differentiating advantages include high-power wire-to-wire routing, transparent status visibility, and a vibration-resistant locking design, making it suitable for industrial equipment, new energy low-voltage systems, and related applications.

This model belongs to the L6.2 wire-to-wire compatible series and adopts a 6.2 mm pitch with a 2–4 position configuration. It provides excellent high-current transmission performance and serves as an ideal upgrade from lower-power connector models. The transparent, flame-retardant housing enables convenient visual inspection and fault diagnosis, while the dual-structure design with an anti-misinsertion locking mechanism ensures a secure and stable connection.

The terminals are made of phosphor bronze with tin plating, offering durability and reliable crimping performance. The connector supports direct replacement of products with the same specifications. Reel packaging is available to support automated mass assembly and improve production efficiency.

Pitch	6.2mm
Rated Current	15A AC/DC
Rated Voltage	300V AC/DC
Insulation Resistance	≥1000ΜΩ
Contact Resistance	≤10mΩ
Withstand Voltage	1800V AC/minute
Temperature Range	-25℃ ～ +85℃

Application Scenarios

• Industrial Automation: Suitable for power connections of industrial servo motors and drives, as well as power distribution buses in industrial control cabinets, meeting requirements for high-current transmission and visual maintenance.

• New Energy Low-Voltage Mobile Equipment: Used for parallel battery module connections in electric forklifts and sightseeing vehicles, as well as battery cluster distribution in small energy storage power stations. High vibration resistance and high-current adaptability ensure stable operation.

• Outdoor Security and Commercial Displays: Suitable for power buses of outdoor LED displays and power distribution lines for security monitoring poles. Wide temperature resistance, weather resistance, and rapid fault diagnosis are key advantages.

• Commercial Large Equipment: Applicable to power connections for commercial refrigerators, cold storage compressors, and fan drive circuits in large commercial air conditioning systems. High power capacity and vibration-resistant, anti-loosening performance make it suitable for complex operating conditions.

• Agricultural and Construction Machinery: Used for power connections of agricultural irrigation pumps and low-voltage auxiliary circuits in construction machinery. Its weather resistance and high reliability meet the demands of outdoor operation.

The JKUN Connectors production process consists of copper strip stamping and plating, injection molding, and subsequent assembly, testing, warehousing, and shipping.

Integrated injection molding, stamping, and assembly workshops with a fully automated production process.

Products are packaged using standardized reels, outer boxes, and pallets. Storage conditions require a dry, dark environment, with products kept off the ground and away from walls and stacking height properly controlled. Transportation options include full truckload, international express, air freight, and sea freight. Protective measures are applied during transportation, and all packaging materials are environmentally friendly and recyclable.

The company has obtained multiple authoritative system certifications, including IATF 16949, ISO 9001, ISO 14001, ISO 45001, and GB/T 27922-2011, and holds multiple utility model patents. These certifications and patents provide strong support for product compliance, quality stability, and technological differentiation.

WENZHOU JKUN CONNECTOR CO., LTD. is a high-tech enterprise specializing in a wide range of connectors. It holds numerous international certifications and is committed to ongoing technological innovation in the fields of AI, 5G, and new energy.
