C2001: 2.00mm Pitch Inline Connectors Wire to Wire
Product Features
The C2001 series is a medium-pitch, full-pin wire-to-wire connector compatible with Molex 51005/51006 specifications. Its key advantages include a 2.00mm pitch, 2–16 PIN coverage, dual-configuration modular mating, and precise Molex compatibility. It is designed for multi-circuit low-power wire-to-wire routing in consumer electronics, industrial control, and related applications.
Medium Pitch & Full PIN Coverage
The standardized 2.00mm pitch supports 2–16 PIN configurations, balancing space utilization with ease of wiring maintenance, and adapting to diverse wiring scenarios.
01
Dual-Configuration & Modular Design
Offers both plug and socket housings with dedicated terminals for modular assembly. Built-in anti-misinsertion grooves and self-locking buckles prevent incorrect insertion and provide strong vibration resistance.
02
Precise Compatibility
Dimensions and interface definitions are fully compatible with Molex 51005/51006 connectors, allowing direct replacement without additional tooling and reducing supply chain switching costs.
03
Flame-Retardant, Wide-Temperature Material
Housing is made of PA66 UL94V-0 flame-retardant engineering plastic. Wide operating temperature ensures reliability under indoor temperature variations in consumer electronics and high/low temperature cycles in industrial environments.
04
Product Specification
|
Pitch |
2.0mm |
|
Rated Current |
2A AC/DC |
|
Rated Voltage |
125V AC/ DC |
|
Insulation Resistance |
≥1000MΩ |
|
Contact Resistance |
≤20mΩ |
|
Withstand Voltage |
500V AC/minute |
|
Temperature Range |
-25℃ ～ +85℃ |
Application Scenarios
The C2001 series targets applications requiring low-power multi-circuit routing, compatibility with older equipment, and flexible, stable wiring. Its medium-pitch, dual-configuration design, and flame-retardant wide-temperature material make it suitable for:
• Consumer Electronics: Smart home appliance control boards, small consumer electronics, portable projectors, Bluetooth speakers, for multi-circuit low-power transmission and compatibility upgrades.
• Industrial Control: Temperature, humidity, and liquid-level sensor modules, PLC expansion modules, and multi-circuit sensing in industrial environments.
• Smart Home Devices: Smart curtain/clothes rack control boxes, smart lighting driver modules, with foolproof installation and strong vibration resistance.
• Medical Portable Equipment: Portable monitors, oximeters, medical infusion pumps, and nebulizers, providing low-power stable connections for compliance and safety.
• Maker & Open-Source Hardware: Arduino/Raspberry Pi expansion modules, miniature robot or model aircraft wiring harnesses, supporting easy procurement and flexible assembly.

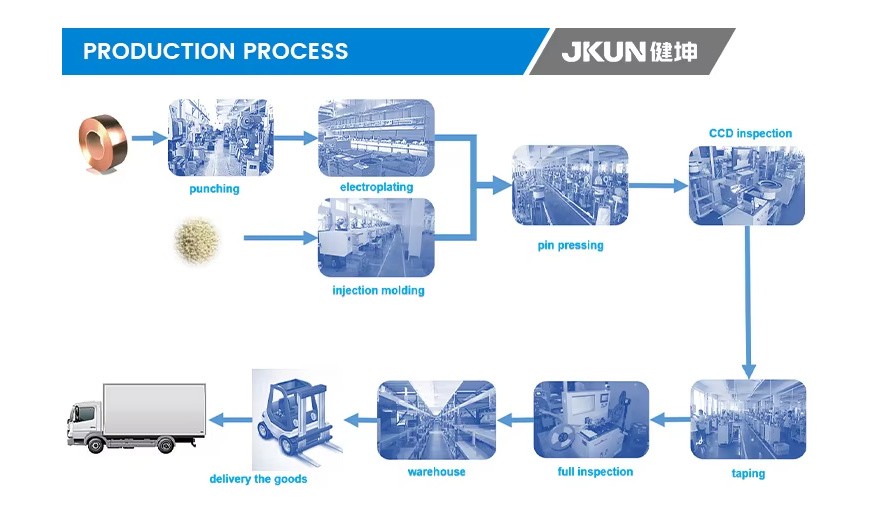

Production Process
The production process uses two parallel branches:
- Copper Strip Branch: Copper strips are stamped and electroplated to produce high-conductivity terminals.
- Injection Molding Branch: Raw materials are processed into connector housings and other plastic components through automated injection molding.
After both branches are complete, terminals and molded parts are combined for assembly. Subsequent processes include CCD inspection, automated taping, final inspection, warehousing, and shipping, ensuring high efficiency and consistent quality.
Production Site
JKUN Connector's core production base covers all manufacturing stages with a professional workshop layout:
Injection Molding Workshop
Automated equipment processes plastic components with precise dimensional and material control.
Stamping Workshop
Precision equipment stamps copper terminals and prepares parts for electroplating.
Assembly Workshops
Automated production lines integrate assembly and CCD inspection, ensuring consistent product quality and reliable order fulfillment.
Packaging & Transportation
Products are packaged using standardized methods, neatly placed in appropriately sized cartons, and secured on pallets for easy forklift handling. Storage should be in a clean, dry, light-proof warehouse with minimal temperature and humidity fluctuations. Multiple transportation methods are supported, and packaging should be protected from sharp objects or severe impacts during transit.
QA & QC
The company implements comprehensive quality assurance and control processes throughout production, ensuring compliance, stability, and reliability.
Company Introduction
WENZHOU JKUN CONNECTOR CO.,LTD. established in 2013, is a national high-tech enterprise specializing in R&D, design, production, and sales of connectors. Its main products include automotive connectors, new energy connectors, electronic connectors, and LED connectors.
The company holds international management system certifications including ISO 9001, ISO 14001, ISO 45001, and IATF 16949. Its products have obtained UL, cUL, and CE certifications, and the laboratory is CNAS-accredited.
Looking ahead, JKUN focuses on technological innovation in artificial intelligence, 5G, and new energy, leveraging a professional team and systematic strategy to pursue independent innovation and development.
