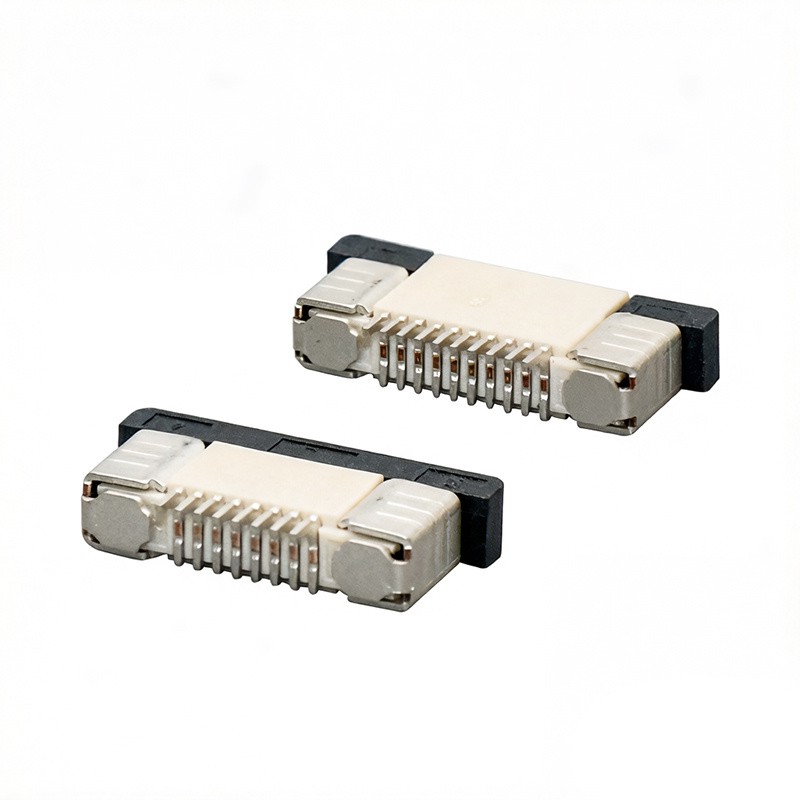

F0501: 0.5mm Pitch FPC Ribbon Cable Connector
Product Features
The F0501 is a 0.5mm pitch FPC flat cable connector featuring a pull-out horizontal and vertical design, a board height of 2.00mm, and an ultra-compact structure. Its core advantages include an ultra-narrow pitch, dual contact methods, a pull-out locking mechanism, zero-insertion-force assembly, and high retention force, making it suitable for the miniaturization trend of micro-electronic terminals.
The 0.5mm ultra-narrow pitch combined with a 2.00mm low profile meets the requirements of high-density PCB routing and space-constrained equipment installation. It supports both top and bottom contact methods for FFC/FPC, eliminating the need to adjust cable direction. The pull-out locking mechanism is intuitive and prevents accidental damage.
The integrated ZIF (Zero Insertion Force) assembly mechanism minimizes mechanical damage to the FFC/FPC contact surface. In the locked state, it provides excellent retention force, resisting vibration and shock to ensure stable signal transmission. Available in both top and bottom contact specifications, the connector adapts to different internal device structures and wiring designs, offering a wide range of applications.
Product Specification
|
Spacing |
0.5mm |
|
Rated Current |
0.5A AC/DC |
|
Rated Voltage |
50V AC/DC |
|
Insulation Resistance |
≥500MΩ |
|
Contact Resistance |
≤30mΩ |
|
Withstand Voltage |
250V AC/minute |
|
Temperature Range |
-25℃ ～ +85℃ |
|
Development hole positions |
Design pin positions 04–40, expand the number of pins as needed. |
|
Existing hole positions |
4, 5, 6, 8, 10, 11, 12, 14, 15, 16, 18, 20, 24, 25, 26, 30, 40, 42, 50 |
Applicable Standards
USCAR2.0, QC/T1067-2017, and other automotive standards.
Applications
• In-car displays: Connects the display screen to the motherboard, supporting stable transmission of high-resolution signals.
• Camera modules: Suitable for reversing cameras and surround-view systems, ensuring real-time image data transmission.
• Sensor connections: Connects radar, LiDAR, and other devices to the ECU, accurately transmitting sensor data.
• Battery Management System (BMS): Enables signal transmission in electric vehicle battery packs, suitable for complex temperature and humidity conditions.
• Instrument panels and central control systems: Connects various control modules to enable collaborative signal interaction across multiple systems.

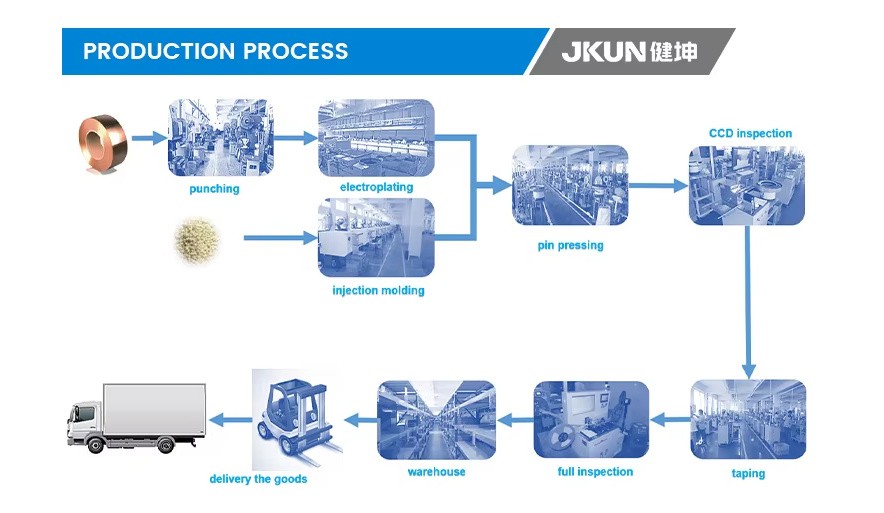

Production Process
JKUN connectors undergo stamping and injection molding, pin assembly, visual inspection, and final inspection before being packaged and delivered as required.
Packaging and Transportation
JKUN employs standardized packaging, multimodal transportation, and regulated storage, with a focus on operational safety and environmental protection.
Certification & Proprietary Patents
Backed by authoritative certifications such as IATF16949 and proprietary patents, JKUN has established a comprehensive compliance system and core technology barriers, ensuring the stability and reliability of its connector products.
Company Profile
WENZHOU JKUN CONNECTOR CO., LTD. founded in 2013, is a high-tech enterprise specializing in a wide range of connectors. Having obtained multiple international certifications, the company continues to focus on technological innovation to drive specialized development.
