F1252: 1.25mm Pitch FPC Socket Connector

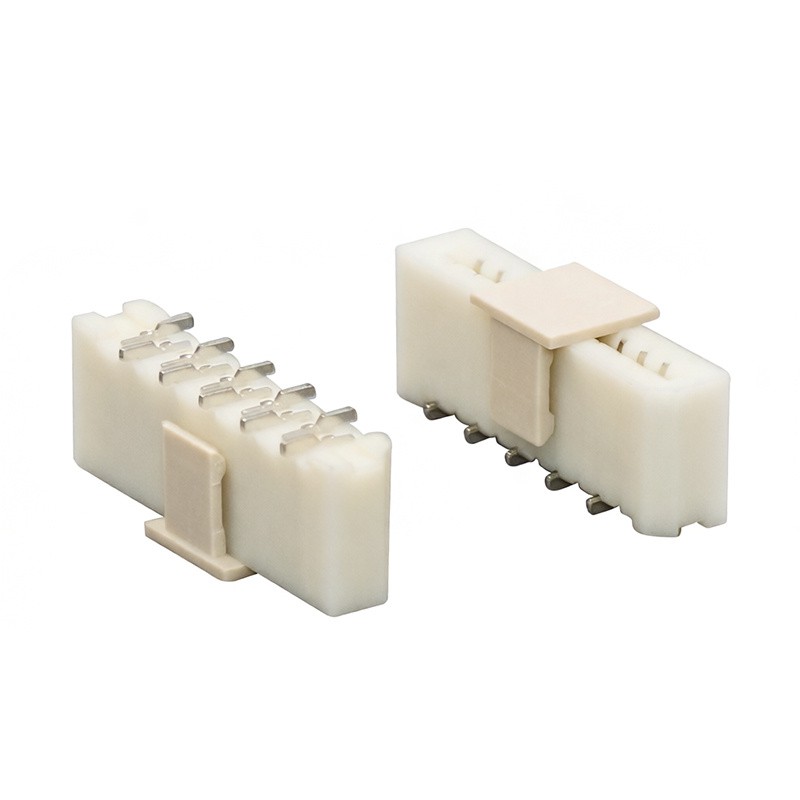

The F1252 series is a 1.25 mm pitch lockless vertical FPC/FFC socket connector with a board height of 5.65 mm. Key features include:

• Dual-Side Contact: Supports FFC/FPC contact on both sides, balancing low insertion force with high retention force.

• Suction Cover for SMT Assembly: Equipped with a pick-and-place suction cover, facilitating automated SMT assembly and improving production efficiency.

• Flexible Solder Pin Options: Available in both positive and negative solder pin configurations to accommodate various PCB layout requirements.

Spacing	1.0mm
Rated Current	0.5A AC/DC
Rated Voltage	50V AC/DC
Insulation Resistance	≥500MΩ
Contact Resistance	≤30mΩ
Withstand Voltage	500V AC/minute
Temperature Range	-25℃ ～ +85℃
Development hole positions	Design hole positions 04-30, expand PIN as needed.
Existing hole positions	10, 19

Applicable Standards

The F1252 connector meets automotive industry standards, including USCAR2.0 and QC/T1067-2017, ensuring reliable performance in demanding automotive applications.

Application Scenarios

The F1252 is suitable for a wide range of automotive electronic applications, including:

• Vehicle Display Screens: Connecting display panels to motherboards, supporting high-resolution signal transmission.

• Camera Modules: Integration with reversing cameras and surround-view systems.

• Sensor Connections: Connecting radar, lidar, and other sensor modules.

• Battery Management Systems (BMS): Signal transmission within electric vehicle battery packs.

• Instrument Panel & Central Control Systems: Connecting various automotive control modules for stable signal transmission.

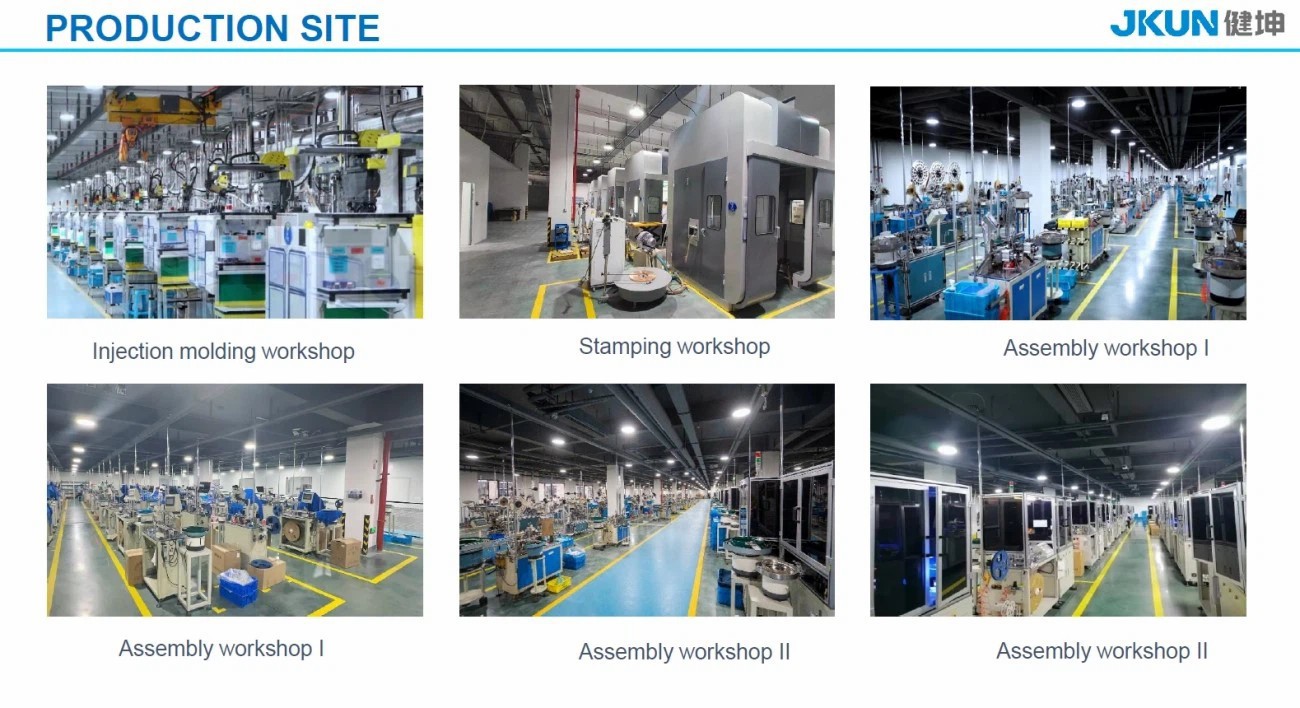

The entire process is independently controlled from raw materials to finished products, ensuring full-link production management, efficiency, and quality consistency, with reliable adherence to order delivery schedules.

• Packaging: Standardized industrial packaging with cardboard boxes and pallet fixation for safe handling.
• Storage: Clean, dry, dark environment with stable temperature and humidity to prevent crushing or damage.
• Transportation: Flexible shipping options, including road, international express, air, and sea freight. Protective measures against sharp objects and impacts must be maintained throughout handling and transport.

JKUN provides core support for product compliance, quality, and technology across the entire connector R&D and production chain through comprehensive certifications and independent patents. JKUN has obtained authoritative certifications across all dimensions, including IATF16949 and ISO series, covering automotive adaptation, production control, green safety, and after-sales scenarios. Holding multiple utility model patents, JKUN focuses on structural optimization, process innovation, and precise assembly, building technological barriers and becoming the core foundation for product stability, reliability, and automotive application.
