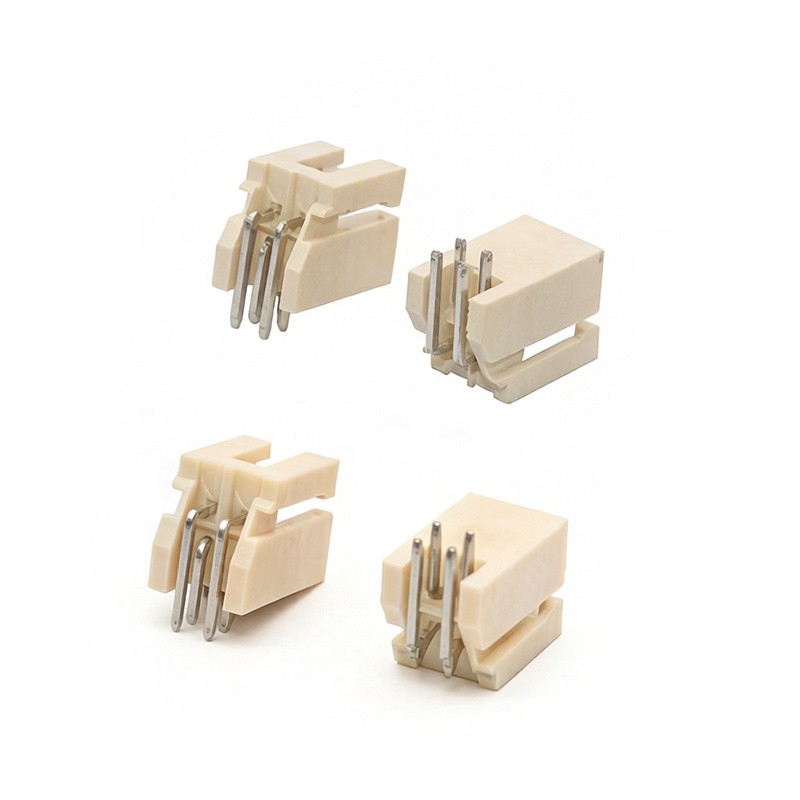

T2508: 2.50mm Pitch New Electrical Connectors
Product Features
The T2508 series are double-row through-hole connectors compatible with XHD2.5 specifications, designed for medium-power transmission, dual mounting options, and high compatibility.
• Standardized Pitch & Multi-Circuit Support: 2.5mm pitch with 2×2P to 2×12P configurations supports 4 to 24 circuit signals and medium-power supply transmission.
• Dual Mounting Options: Straight-through (T2508A) and right-angle (T2508AWD) types, compatible with wave soldering processes.
• Durable & Safe Materials: LCP UL94-V0 flame-retardant housings and brass tin-plated terminals ensure durability, high conductivity, and safety.
• Compatibility: Fully compatible with mainstream XHD2.5 interfaces, reducing customer adaptation costs.
Product Specification
|
Spacing |
2.5mm |
|
Rated current |
3A AC/DC |
|
Rated voltage |
250V AC/DC |
|
Insulation resistance |
≥1000ΜΩ |
|
Contact resistance |
≤30mΩ |
|
Withstanding voltage |
800V AC/minute |
|
Temperature range |
-25℃ ～ +85℃ |
Application Scenarios
The T2508 series is ideal for medium-power, multi-circuit, board-level connections in consumer electronics, industrial control, smart home, new energy, and medical fields, especially in space-constrained layouts.
1. Consumer Electronics:
Suitable for smart home appliance control boards, portable power banks, and projectors.
Right-angle type saves vertical space; straight-through type supports multi-circuit vertical transmission.
3A current rating supports medium-power loads; flame-retardant materials meet safety standards.
2. Industrial Automation:
Ideal for PLC expansion units, industrial sensor modules, and small power modules.
Through-hole wave soldering ensures secure, vibration-resistant connections.
Wide temperature range and high voltage resistance enhance electrical safety.
3. Smart Home:
Applicable to lighting drivers, security cameras, and smart curtain controllers.
Double-row layout maximizes space utilization; stable contacts ensure uninterrupted signals.
Compatible with ecosystem interfaces, suitable for concealed installations.
4. New Energy & Low-Voltage Auxiliary Systems:
Suitable for BMS auxiliary circuits in small energy storage power stations and low-voltage systems of new energy vehicles.
Features wide temperature tolerance and vibration resistance.
Flame-retardant materials meet energy storage safety standards; compatible interfaces reduce maintenance costs.
5. Medical Equipment:
Meets requirements for portable monitors, infusion pumps, and similar devices.
Bent connectors save space; straight connectors fit control board layouts.
Stable electrical performance ensures uninterrupted treatment and compliance with medical environmental standards.
Production Process
- Parallel Branch Production: Copper strips are stamped and electroplated to form terminals; injection molding materials are processed into flame-retardant housings and components.
- Assembly & Inspection: Pin pressing, CCD visual inspection, automated taping, and full-process final inspection.
- Qualified products are stored and shipped per order, ensuring consistency and reliability.
Production Site
The core production base covers injection molding, stamping, and assembly.
Automated injection molding ensures dimensional accuracy and material consistency.
Precision stamping guarantees terminal tolerances.
Automated assembly lines integrate testing devices for full-process assembly and initial inspection, ensuring high-quality production.
Packaging & Transportation
- Packaging: Cartons with cushioning pads, secured on pallets for forklift handling.
- Storage: Maintain original packaging in a clean, dry, light-protected warehouse with stable temperature and humidity.
- Transportation: Road, express, air, and sea freight; protect against sharp objects and impacts. Recycle packaging materials whenever possible.
Quality Assurance & Certification
Authoritative certifications: IATF16949, ISO9001, ISO14001; international certifications: UL, CUL, CE.
Full-process quality control from raw material entry to finished product delivery.
Testing conducted in CNAS-accredited laboratories, ensuring products meet stringent standards.
Company Introduction
WENZHOU JKUN CONNECTOR CO.,LTD. established in 2013, is a national high-tech enterprise specializing in connectors for automotive, new energy, electronics, and LED applications.
Multiple international certifications and CNAS-accredited laboratory.
Independent R&D capabilities and rigorous quality control.
Future focus: artificial intelligence, 5G, and new energy sectors, driving product upgrades toward high reliability and precision.
