Standard Electrical Connectors

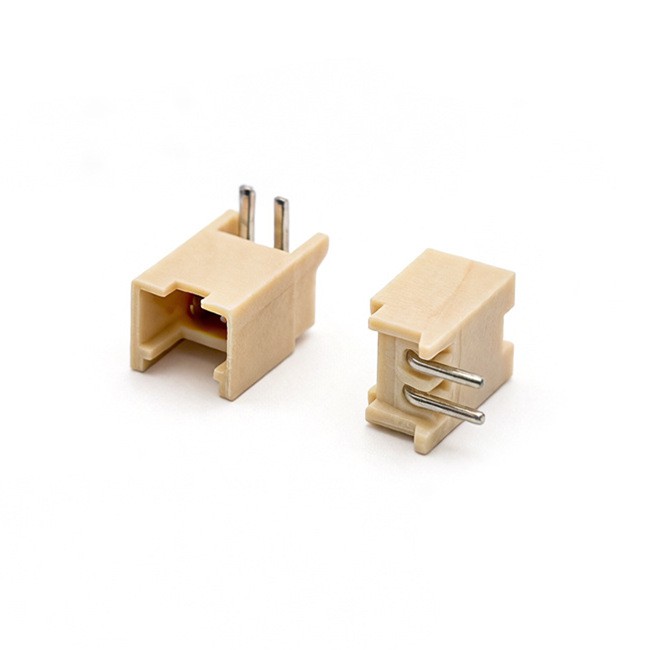

T2002: 2.00mm Pitch Standard Electrical Connectors

The T2002 series are single-row through-hole connectors compatible with HY/PHB specifications, focusing on high voltage protection, compact layout, and dual-configuration space optimization.

• Standardized Pitch: 2.0mm single-row pitch, covering 2–16P positions, suitable for medium-power transmission (2A) across multiple circuits.

• Dual Mounting Options: Straight-through type (T2002A) utilizes vertical space efficiently; right-angle type (T2002AWD) is suitable for flat layouts.

• High Voltage Protection: Rated up to 1000V, safeguarding against power grid fluctuations.

• Durable & Safe Materials: LCP flame-retardant housings and brass tin-plated terminals ensure stability and long-term reliability.

• Compatibility: Fully compatible with mainstream HY/PHB interfaces, reducing adaptation costs.

Spacing	2.0mm
Rated current	2A AC/DC
Rated voltage	250V AC/DC
Insulation resistance	≥1000ΜΩ
Contact resistance	≤20mΩ
Withstanding voltage	1000V AC/minute
Temperature range	-25℃ ～ +105℃

Application Scenarios

The T2002 series is ideal for medium-power, high-voltage, single-row board connections in industrial control, consumer electronics, smart home, new energy, and medical devices.

1. Industrial Control Field – High voltage resistance adapts to complex power grid environments:

• PLC Input / Output Modules

• Industrial Sensor Modules (Photoelectric / Proximity Sensors)

• Small Servo Drives

2. Consumer Electronics Field – Dual configuration adapts to thin designs:

• Smart Home Appliance Control Boards (Blenders, Dishwashers, Air Purifiers)

• Portable Energy Storage / Outdoor Power Banks

• Home Projectors / Bluetooth Speaker Amplifier Boards

3. Smart Home Field – Compatible interfaces for rapid ecosystem integration:

• Smart Lighting Driver Modules (Downlights, Track Lights)

• Security Cameras / Video Doorbells

• Smart Curtain / Clothes Dryer Control Boxes

4. New Energy & Low-Voltage Auxiliary Field – Wide temperature tolerance for automotive environments:

• Low-Voltage Auxiliary Systems of New Energy Vehicles (Windows, Seats, Mirrors)

• BMS Auxiliary Circuits for Small Energy Storage Stations

5. Medical Equipment Field – Stable transmission ensures clinical safety:

• Portable Monitors / Pulse Oximeters

• Medical Infusion Pumps / Nebulizer Control Boards

• Parallel Branch Production: Copper strips are stamped and electroplated to form terminals; injection molding raw materials are processed into flame-retardant housings and components.
• Assembly & Inspection: Pin pressing, CCD visual inspection, automated taping, and full-process final inspection.
• Qualified products are stored and shipped per order, ensuring consistency and reliability.

The core production base follows IATF16949 and ISO9001 standards, with a fully automated production chain:

• Injection Molding Workshop: Produces high-precision plastic parts.
• Stamping Workshop: Processes precision terminals.
• Assembly Workshop: Integrates automated assembly and online testing.
• Digital Management: Enables full traceability of production data.

• Packaging: Cartons with cushioning pads, secured on pallets, suitable for forklift handling.
• Storage: Retain original packaging; store in a clean, dry, light-protected warehouse with stable temperature and humidity.
• Transportation: Road, express, air, and sea freight; prevent scratches and impacts. Recycle packaging materials whenever possible.

• System Certifications: IATF16949, ISO9001, ISO14001.
• Independent Patents: Utility models for connector structure optimization, process innovation, and precision assembly.
• Core Guarantee: From automotive-grade system compliance to technological empowerment via patents, JKUN ensures products are stable, reliable, automotive-grade compatible, and technologically leading.
