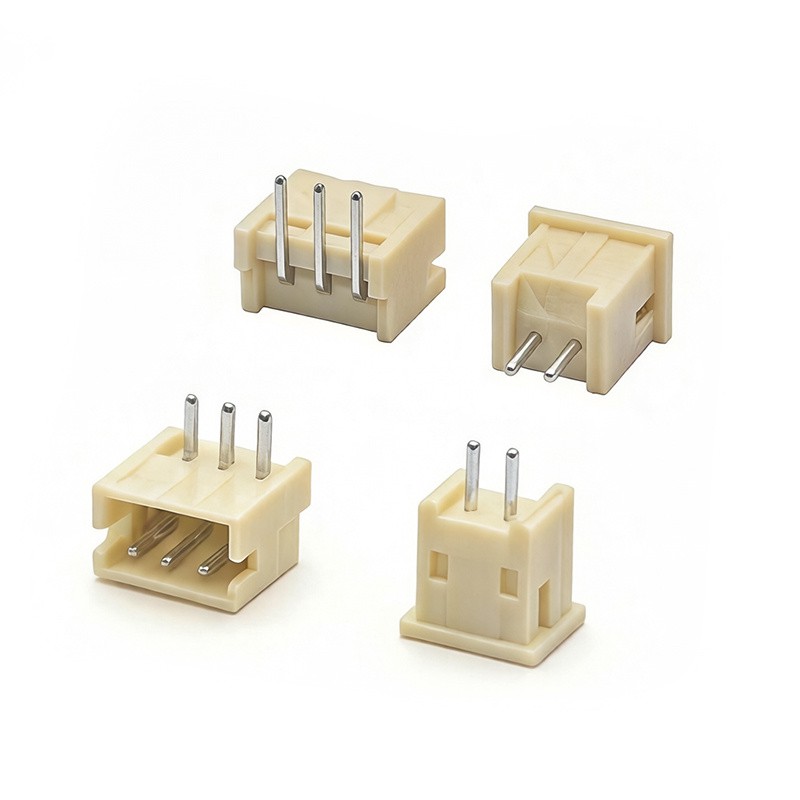

T1502: 1.50mm Pitch Common Electronic Connectors

The T1502 series is a single-row through-hole connector compliant with ZH 1.5 specifications. Its core differentiating features include an ultra-compact layout, dual-configuration protection, and low-power precision transmission, with a focus on protection and space optimization for miniaturized applications.

The 1.50 mm narrow-pitch single-row design supports pin counts from 02 to 16 positions. The straight-through version with cover (T1502A) is equipped with an LCP protective cover to prevent contamination, while the right-angle version without cover (T1502AWD) provides maximum space savings. The LCP flame-retardant housing is combined with brass terminals with tin plating, ensuring compatibility with mainstream interfaces and meeting low-power signal and power transmission requirements.

Pitch	1.5mm
Rated current	1A AC/DC
Rated voltage	125V AC
Insulation resistance	≥500ΜΩ
Contact resistance	≤20mΩ
Withstand voltage	500V AC/minute
Temperature range	-25℃～ +105℃

Five Major Innovative Application Scenarios

The JKUN T1502 series connector features a 1.5mm ultra-compact single-row layout with dual-configuration protection and optimized space utilization, and is compatible with ZH1.5 interfaces. Designed for smart wearables, miniature sensors, and maker hardware, it delivers low power consumption, high protection, and reliable signal transmission.

JKUN connectors employ a dual-branch parallel production process covering processing, assembly, multi-stage testing, and standardized warehousing and delivery, with strict quality control applied throughout to meet automotive industry standards.

JKUN Connectors' core production base comprises injection molding, stamping, and assembly workshops, supported by a fully integrated, in-house production process that ensures efficiency and product quality.

JKUN Connectors utilize standardized, high-protection packaging and diversified transportation solutions, combined with strict control of warehousing and storage environments, to ensure consistent product performance throughout the entire process and meet the diverse requirements of domestic and international customers.

JKUN Connectors have obtained authoritative certifications such as IATF16949 and hold numerous patents, providing dual assurance in both compliance and technological capability.
