L023: 2.0mm Pitch Low Profile Header Connector
Product Features

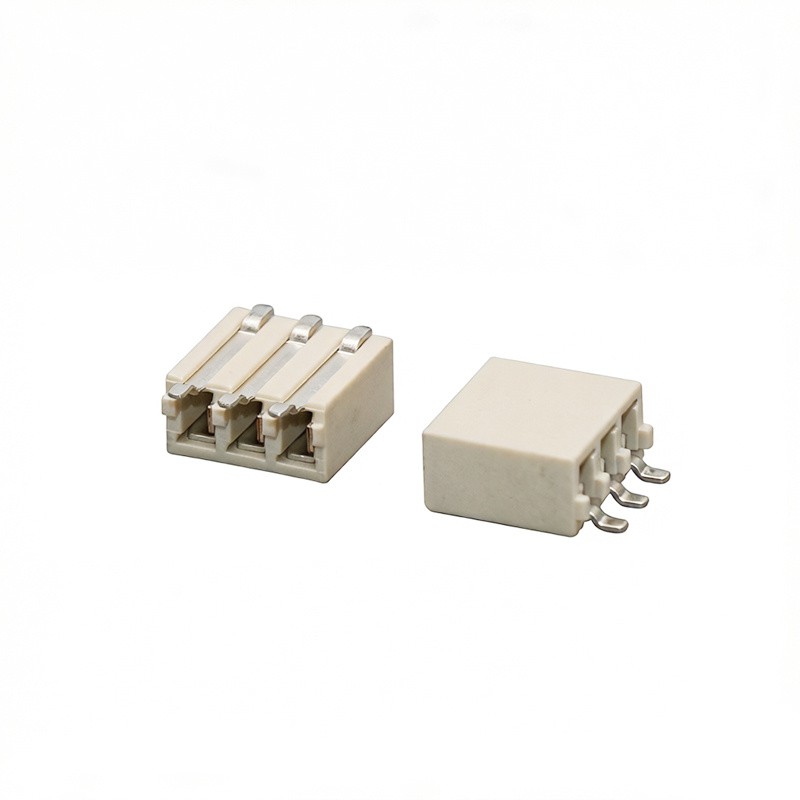

The L023 is a 2.0mm pitch low-profile header connector designed for T5/T8 linear LED tubes and small LED bulbs. Its core advantages include a minimalist 1–3 PIN circuit design, extra-long pin end-cap penetration, a patented anti-slip positioning structure, and deep customization capabilities, focusing on the power connection needs of basic lighting equipment.
Minimalist circuit design
Fixed 1–3 PIN configuration retains only the core circuits for power or single-channel dimming, eliminating unnecessary pins to save space and reduce costs.
01
Flexible installation
Multiple pin lengths allow direct connection to internal driver boards through the lamp end cap without additional adapters. Available in DIP straight-through, 90° angled, and SMT surface-mount configurations to accommodate various installation methods.
02
High reliability
Patented end-cap adaptation structure features anti-slip teeth and positioning grooves to minimize vibration-induced contact issues and assembly errors. Supports 1000V AC/min withstand voltage, ≥1000MΩ insulation resistance, and a wide operating temperature range.
03
Customizable
Supports full-dimensional development to meet unique end-cap requirements. Compatible with automated and manual production, universal PCB layouts, and can replace existing connectors without mold changes.
04
Product Specification
|
Pitch |
2.0mm |
|
Rated Current |
1A AC/DC |
|
Rated Voltage |
125V AC/DC |
|
Insulation Resistance |
≥1000MΩ |
|
Contact Resistance |
≤20mΩ |
|
Withstand Voltage |
1000V AC/minute |
|
Temperature Range |
-25℃ ～ +105℃ |
Application Scenarios
The L023 series focuses on single-circuit power or simple dimming transmission needs for basic LED lighting, making it ideal for:
• Basic civil LED lighting and commercial lighting
• Mass production of standard LED tubes
• Simple outdoor lighting
• After-sales maintenance and replacement scenarios
It is especially suited for applications where cost-effectiveness, compact end-cap installation, and reliable single-circuit transmission are prioritized over complex functionality.

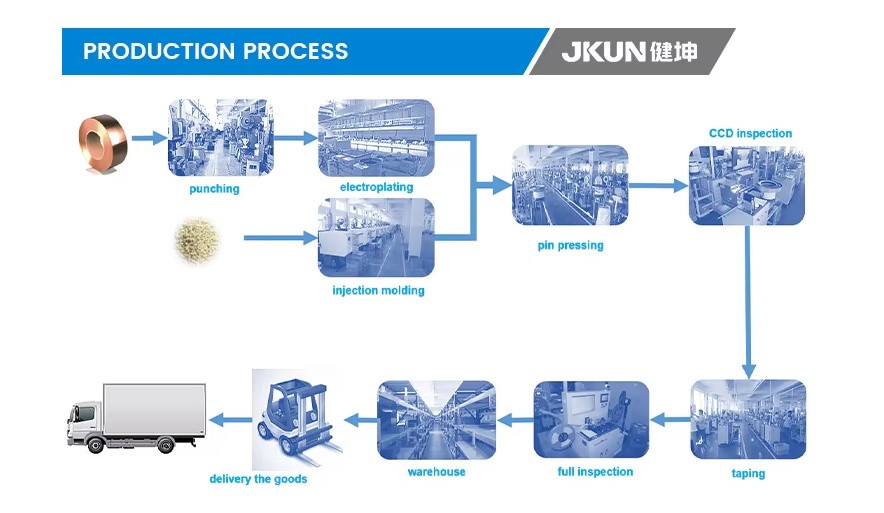

Production Process
JKUN's production follows professional electronic manufacturing control standards, divided into three stages:
- Front-end processing: Terminal stamping and forming, terminal electroplating, and plastic shell injection molding.
- Mid-end processing and quality control: Automated assembly, CCD visual inspection, tape-and-reel packaging, and full-process final inspection.
- Back-end warehousing and delivery: Batch warehousing management, order fulfillment, and shipment.
Production Site
JKUN's core production base features a fully automated system covering all stages from raw materials to finished products. Specialized workshop divisions create a closed-loop, controllable manufacturing process:
- Injection molding workshop: Uses high-performance raw materials to ensure plastic part quality.
- Stamping workshop: Precisely processes copper strip terminals.
- Assembly workshops: Integrate automated production lines with online testing to complete assembly.
The entire production process is monitored in real time through the MES system, balancing capacity, ensuring quality control, and reliably meeting high-reliability connection requirements.
Packaging & Transportation
A standardized packaging and logistics system is implemented. Inner packaging provides protection, while outer packaging is securely sealed and stacked on wooden pallets. Storage requires clean, dry, and temperature-stable conditions. Transportation methods are flexible, emphasizing safety, operational standards, and protection against impact.
Quality Assurance & Control
The company maintains a full-process quality control system, supported by its fully automated production base. Certifications include IATF16949, ISO9001, ISO14001, UL/CUL, and CE, ensuring consistent, compliant product quality.
