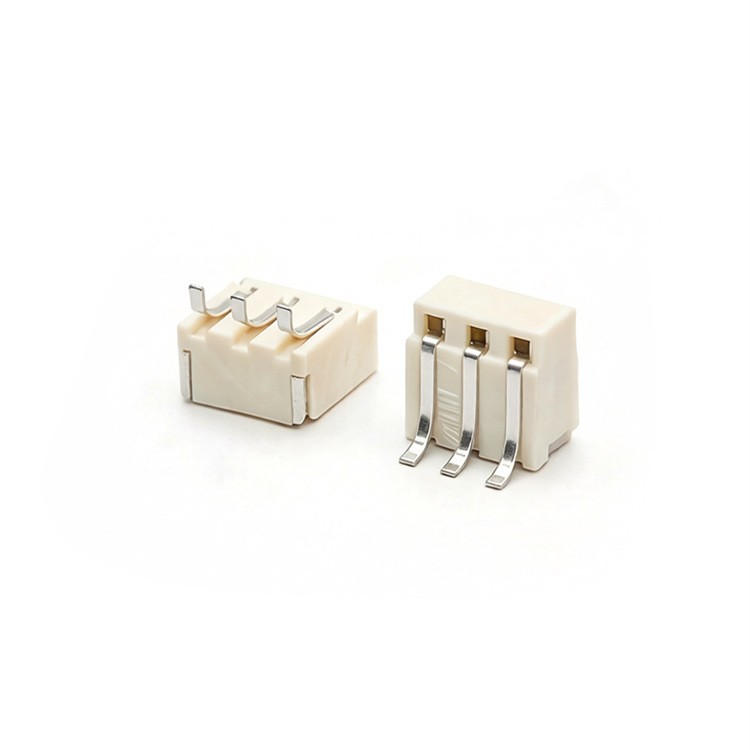

L015: Jumper Header Connector
Product Features
The L015 is a jumper header connector designed for T8/T5 and other linear LED tubes. Its core advantages include 2.54mm standard pitch multi-circuit transmission, dual-process multi-configuration end cap compatibility, ultra-wide temperature tolerance, and a patented high-reliability structure, addressing the power and signal connection needs of linear LED tubes.
The 2.54mm standard pitch allows flexible PIN configurations to meet the functional requirements of basic, smart dimming, and high-end networked tubes, eliminating the need for additional molds to fit mainstream modules.
Multiple connector configurations are available, including DIP straight-through, SMT surface mount, and 90° angled insertion. These designs optimize installation within limited tube end-cap space, reduce wire harness crossing, and improve assembly efficiency.
The operating temperature range is -40℃ to +110℃, ensuring reliable performance in low-temperature outdoor startups and high-temperature tube operation. A 1000V AC/min withstand voltage and ≥1000MΩ insulation resistance protect against power grid fluctuations, lightning-induced shocks, and short-circuit risks in humid environments.
The patented end-cap connection structure provides foolproof positioning to prevent assembly errors. Reinforced anti-vibration pins, low contact resistance (≤20mΩ), and a sealed adaptation structure reduce dust and moisture intrusion, ensuring reliable operation.
Product Specification
|
Rated Current |
2A AC/DC |
|
Rated Voltage |
250V AC/DC |
|
Insulation Resistance |
≥1000MΩ |
|
Contact Resistance |
≤20mΩ |
|
Withstand Voltage |
1000V AC/minute |
|
Temperature Range |
-40℃ ～ +110℃ |
Application Scenarios
• Indoor lighting: Provides stable power supply for offices, underground parking lots, and other spaces.
• Outdoor municipal lighting: Withstands extreme temperatures and power grid fluctuations.
• Commercial engineering: Supports smart dimming and automated batch production.
• High-end smart tubes: Supports multi-circuit expansion, networking, and remote control.
Production Process
The L015 adopts a dual-branch parallel production model. Copper strip substrates undergo high-precision stamping and standardized surface treatment, while injection molding raw materials are processed simultaneously with strict quality control. After both branches, products undergo automated pin assembly, CCD visual inspection, tape packaging, and full-process final inspection to ensure consistent quality.

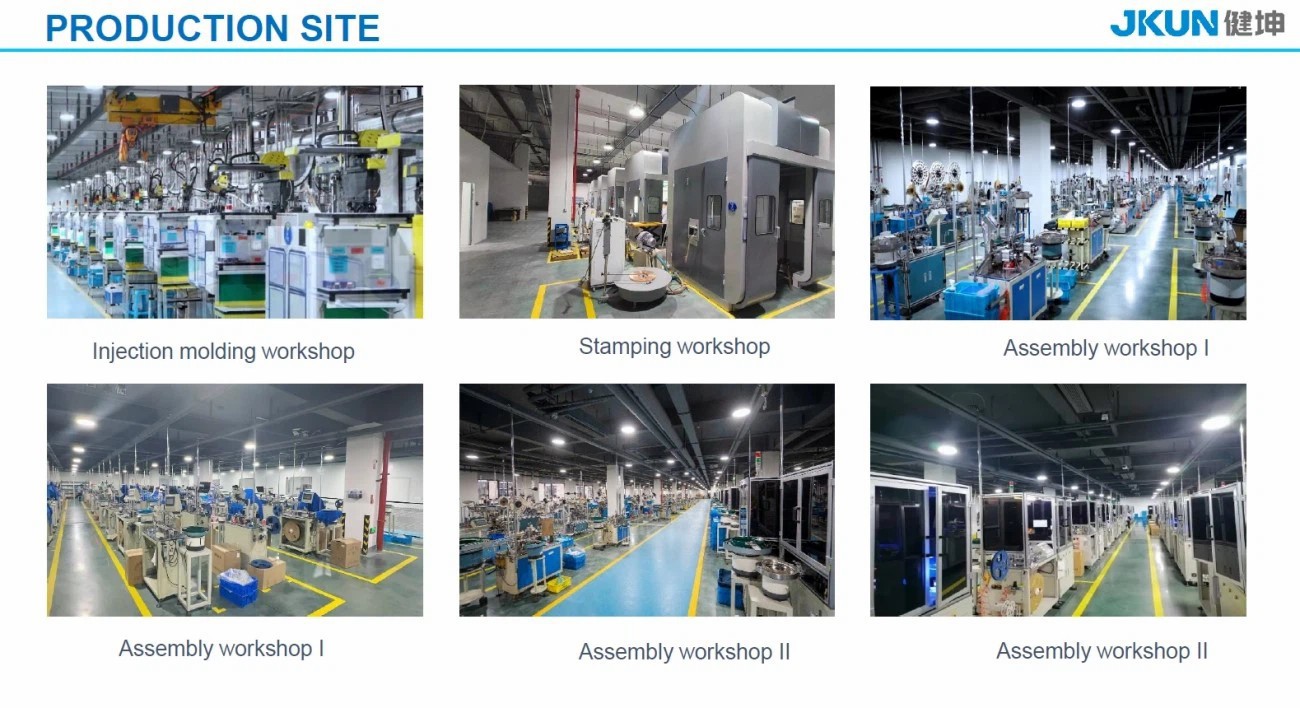

Production Site
JKUN's core production base covers all processes, with specialized workshops and a precise division of labor for standardized production and quality control.
Injection molding workshop
High-precision automated equipment ensures plastic part quality, serving as a core link in the injection molding process.
Stamping workshop
Precision equipment produces accurate copper terminals for electroplating.
Assembly workshops
Automated production lines with online testing integrate assembly and inspection, forming a closed-loop process that ensures stable, consistent product quality and meets customer delivery requirements.
Packaging & Transportation
Products are packaged using industrial-grade standardized methods, neatly sorted into custom corrugated boxes and secured on pallets. Storage must maintain the original packaging in a clean, dry environment. Transportation methods are flexible, including road, express, air, and sea, with an emphasis on protection, operational safety, and environmental compliance.
Quality Assurance & Control
JKUN Connector implements rigorous QA/QC processes, ensuring consistent product performance. Certifications are provided to validate product quality.
Frequently Asked Questions
What is the MOQ for the L015 jumper header connector?
-
The MOQ depends on the selected pin configuration, mounting type and order quantity. Please provide the required specifications and estimated quantity, and we will confirm the applicable MOQ.
What is the standard lead time?
-
Standard orders are completed within 7-10 days after order confirmation.
How do I select the correct jumper cap?
-
Confirm the header pitch, post size, number of contacts and required connected positions.
Can the header pin lengths be made to our PCB dimensions?
-
Yes. Specify the mating length, insulator position, PCB thickness and solder-tail length.
