L2006: 2.00mm Pitch Right Angle Header Connector

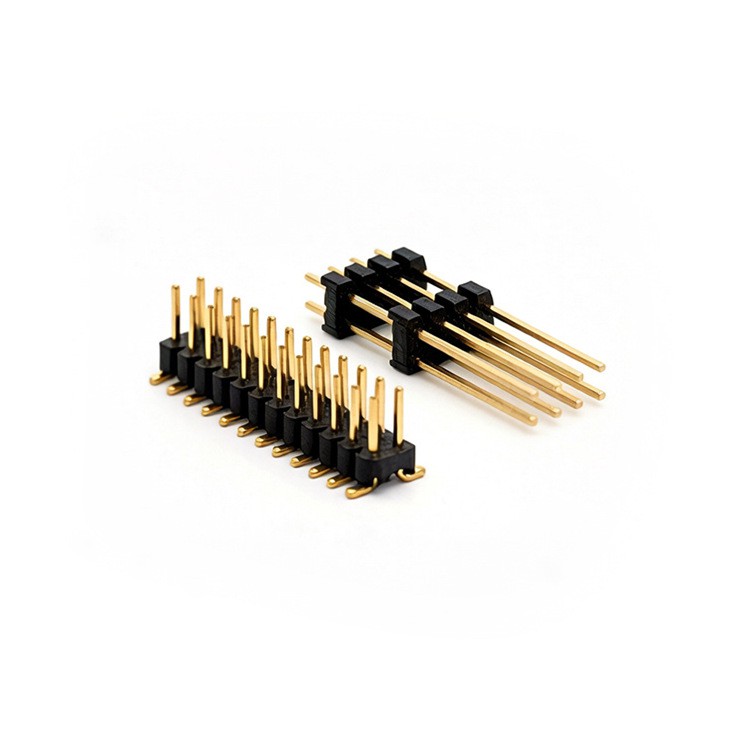

The L2006 is a 2.00mm pitch right-angle header connector designed for automotive electronics and general electronic equipment. Its core advantages include wide pin count coverage, automotive-grade reliability, in-depth customization services, and full-scenario adaptability. It meets the stringent signal transmission requirements of automotive electronic systems and is also suitable for connecting circuit board components in various electronic devices.

The 2.00mm standard pitch supports flexible single- and double-row configurations, covering applications from simple power transmission to complex multi-signal routing.

Multiple configurations are available, including DIP through-hole, SMT surface mount, 90° angled insertion, and options with locating pins or anti-misinsertion structures, precisely matching different installation processes and adapting to compact layouts in automotive electronics.

Electrical performance meets automotive-grade standards, with terminal contact resistance ≤20mΩ, 500V AC/min withstand voltage, and an ultra-wide temperature range. The housing is made of PA6T/LCP UL94V-0 flame-retardant material.

The connector supports full-link customization, enabling precise design, synchronous development, and general PCB layout adaptation to meet customer needs and equipment upgrades.

Pitch	2.0mm
Rated Current	2A AC/DC
Rated Voltage	250V AC/DC
Insulation Resistance	≥1000MΩ
Contact Resistance	≤20mΩ
Withstand Voltage	500V AC/minute
Temperature Range	-40℃ ～ +105℃

Application Scenarios

The L2006 series is designed for automotive electronics and general electronic equipment, providing multi-circuit signal transmission and stable performance under complex working conditions.

• Automotive electronics: Suitable for ECUs, vehicle lighting, and smart cockpits, meeting demanding multi-signal and environmental requirements.

• Industrial control equipment: Supports stable operation of PLCs, sensors, and automation systems.

• Consumer electronics: Facilitates compact designs for smart TVs, network devices, and other miniaturized electronics.

• Smart home appliances: Enables multi-signal integrated control and safety protection in devices such as variable-frequency air conditioners and smart dishwashers.

• High-voltage and specialized systems: Provides customizable solutions for new energy vehicle auxiliary systems, medical equipment, and other specialized applications, enabling rapid upgrades or replacements while reducing modification costs and time.

The core production base follows IATF16949 and ISO9001 standards, establishing a fully automated production chain covering raw material processing, component molding, assembly, and quality inspection. The injection molding, stamping, and assembly workshops are clearly divided, and production data is interconnected and fully traceable.

Products are packaged using standardized methods, neatly placed in cartons, and secured on pallets. Storage requires a clean, dry, low-humidity environment protected from direct sunlight. Transportation methods are flexible, and packaging must be safeguarded from sharp objects and severe impacts.

The company holds multiple authoritative certifications, including IATF16949, ISO9001, ISO14001, ISO45001, and GB/T27922-2011, as well as numerous independent patents. This establishes a dual guarantee system of "compliance foundation + technological empowerment", ensuring stable and reliable product quality.
