Car Headlight Socket Types

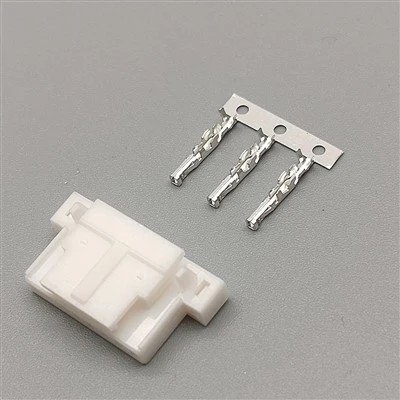

A2002-QA2022 :2.00mm pitch car headlight bulb connector

A2002-QA2022 Series (Compatible with PHB/HY Series)

HY/PHB refers to a class of 2.0mm-pitch board-to-board or wire-to-board connectors commonly used for internal connections in electronic devices.

"Secondary locking" refers to a mechanism that provides dual securing via a mechanical latch structure after the connector body is inserted, thereby enhancing vibration resistance and connection reliability.

Pitch and Pin Count: Featuring a standardized 2.00mm pitch, these connectors support pin counts ranging from 02 to 16, flexibly meeting signal and power transmission requirements for 2 to 16 circuits.



Key Advantages

Secondary Lock Secures Every Crimp Terminal

The A2002-QA2022 housing locks each terminal after primary insertion. Harness pulling, road vibration and repeated lamp servicing cannot move a terminal backward or leave a circuit partially engaged.

Four-Sided Enclosed Terminal with Double-Sided Contact

The terminal surrounds the mating pin on four sides and maintains two electrical contact surfaces. Vibration and small alignment changes do not concentrate the current path on one contact point, preserving continuity inside the headlight module.

Applicable Standards

Automotive-grade standards such as USCAR2.0 and QC/T1067-2017.

This connector is specifically designed for automotive LED lighting modules and strictly complies with automotive standards such as USCAR 2.0 and QC/T1067-2017. It provides a stable connection for various LED lighting systems, including automotive headlights, taillights, and daytime running lights.

The product features a secondary locking mechanism to prevent disconnection and fully enclosed terminals on all four sides. With dual-sided contact between the pins and terminals, combined with an external hook interlock structure, it effectively withstands vibration and shock during vehicle operation, ensuring high retention force and contact stability.

Designed with a 2.0mm pitch, it supports a rated current of 2A AC/DC and a rated voltage of 250V AC/DC. insulation resistance of ≥100 MΩ, contact resistance of ≤25 mΩ, and a withstand voltage of up to 1000 V AC/minute. It operates reliably in a wide temperature range of -40°C to +105°C and is compatible with AWG #22–24 wire gauges, providing safe, stable, and long-lasting electrical connection assurance for automotive LED lighting systems.

Jiankun's production process strictly adheres to professional control standards for electronics manufacturing. The workflow is divided into three core stages: Front-end Process, Mid-end Process & Quality Control, and Back-end Process (Warehousing and Delivery). The details are as follows:

Front-end Process: Component Formation

1. Terminal Stamping
Using high-purity copper strips as the raw material, terminal blanks are formed through cold pressing using high-speed precision stamping equipment. We strictly control the structural accuracy and mechanical strength of the terminals, laying a solid foundation for subsequent electrical connection performance.

2. Terminal Plating
Surface treatments such as Gold, Tin, or Nickel plating are completed by qualified external suppliers. These treatments enhance the terminals' electrical conductivity, oxidation resistance, and wear resistance (mating cycle life), ensuring compliance with industry environmental and reliability requirements, such as RoHS and REACH.

3. Housing Injection Molding
Engineering plastic granules (such as PA66 and LCP) are melted at high temperatures and injected into molds using precision injection molding machines to form the connector housings. This process ensures the dimensional stability, insulation properties, and heat resistance of the housings.

Mid-end Process & Quality Control

1. Automated Assembly
Using high-speed pin insertion (stitching) equipment, the plated terminals are precisely inserted and locked into the injected housings. This forms the final electrical connection structure of the connector, with assembly accuracy guaranteed throughout the process by a vision positioning system.

2. CCD Visual Inspection
A high-resolution CCD visual inspection system is utilized to automatically detect cosmetic defects (such as terminal deformation or housing flashes) and dimensional accuracy (such as terminal alignment deviation). This automated screening process achieves a detection precision of up to ±0.01mm.

3. Tape and Reel Packaging
Qualified products are packaged using carrier and cover tapes (Tape and Reel). This meets the requirements for SMT (Surface Mount Technology) automated pick-and-place processes used by downstream customers while effectively protecting products from damage during transportation and storage.

4. Final 100% Inspection
A combined inspection method of "Manual Visual Inspection + Electrical Performance Testing" is conducted to verify core electrical indicators, including continuity, withstanding voltage, and insulation resistance. This ensures that all products comply with industry quality standards such as IATF16949.

Back-end Process: Warehousing and Delivery

1. Batch Warehousing Management
Qualified products are scanned into the WMS (Warehouse Management System) for storage. This system enables full production batch traceability, dynamic inventory control, and strict FIFO (First-In, First-Out) management.

2. Order Delivery & Shipment
Picking and preparation are completed based on customer order requirements. Shipments are arranged through the logistics system, accompanied by batch traceability reports and COCs (Certificate of Conformance) to ensure timely delivery and full quality traceability.
