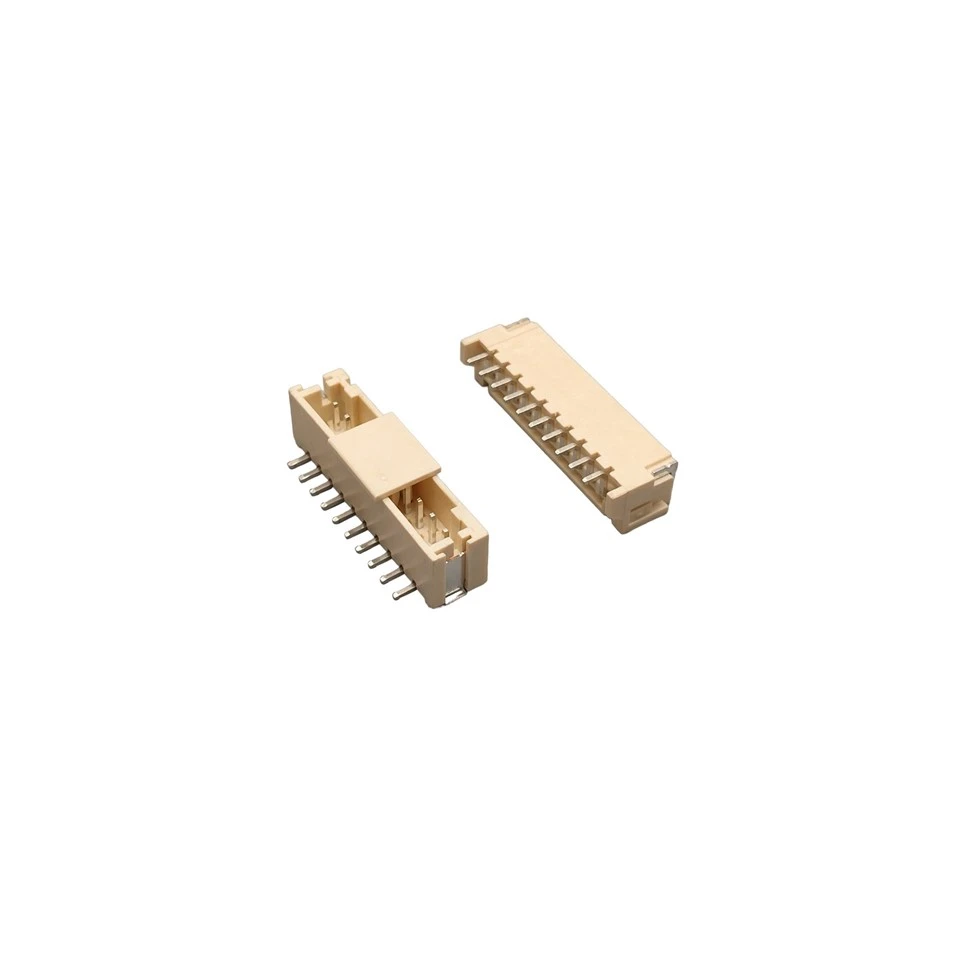

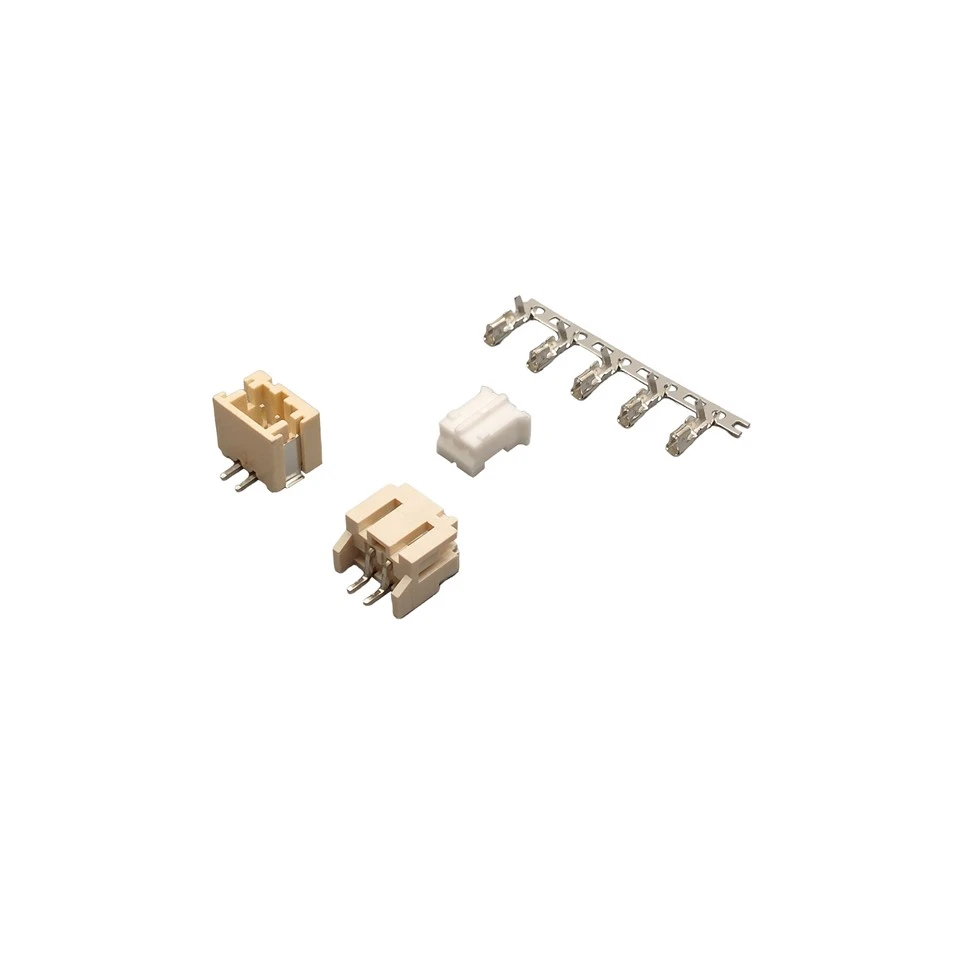

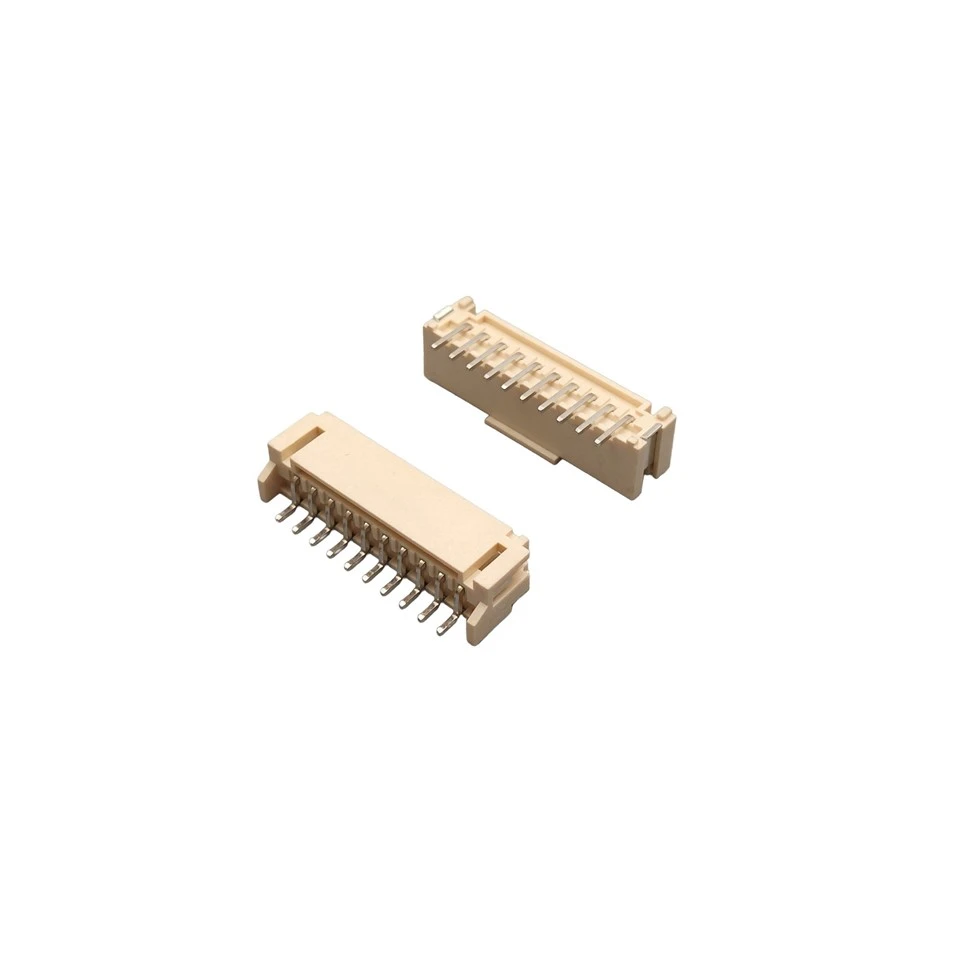

A2001: 2.0 mm pitch wire-to-board connector

A2001 Series (Compatible with JST PH Series)

The A2001 series is a 2.0mm pitch connector product range developed by our company specifically for wire-to-board electrical interconnection applications. Compatible with JST PH series specifications, it enables direct replacement and universal adaptation, making it the preferred solution for stable connections between PCBs and wires in sectors such as consumer electronics, industrial control, smart home, security equipment and small household appliances.Built on a proven structural design and rigorous quality control, the product balances ease of installation, connection stability and long-term durability, ensuring safe and reliable signal and current transmission for a wide range of electronic devices.

Key Advantages
● Premium Materials, Reliable Performance
The housing is made from high-temperature-resistant, flame-retardant engineering plastic, offering strong insulation, resistance to ageing and environmental corrosion; the internal terminals are crafted from highly conductive copper with a precision electroplated finish, ensuring low contact resistance and excellent conductivity, whilst remaining resistant to oxidation and poor contact even with long-term use.
● Easy Installation, Wide Compatibility

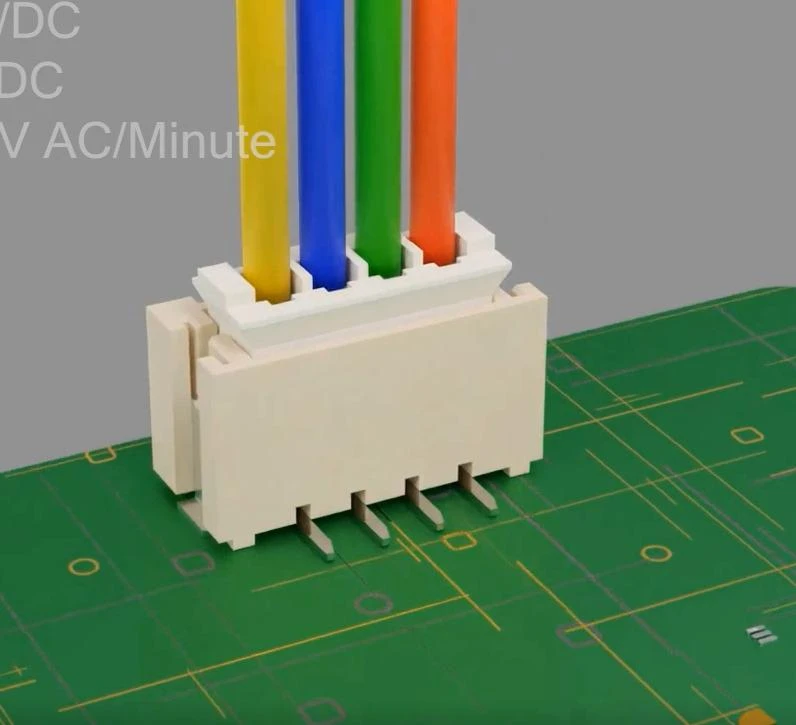

The PCB-mounted terminal blocks are designed to fit flush with the PCB, saving internal space within the equipment; the wire-end terminals are easy to crimp and compatible with a wide range of wire specifications, making assembly simple and efficient, significantly improving production and assembly efficiency, and suitable for automated production lines.

Thanks to their high compatibility and stability, the A2001 series 2.0mm wire-to-board connectors are widely used in:

• Smart home devices: Internal PCB connections in smart lighting, thermostat panels, robot vacuum cleaners, etc.
• Consumer electronics: power adaptors, digital accessories, small household appliances, audio-visual equipment
• Industrial control: sensor modules, control boards, and small industrial control equipment
• Security and medical equipment: surveillance modules, portable medical instruments, access control systems, etc.

Our A2001 series connectors are manufactured in strict accordance with standardised production processes. Prior to shipment, they undergo a comprehensive range of reliability tests, including insertion/withdrawal endurance, dielectric withstand voltage, contact resistance, high and low temperature environments, and salt spray corrosion resistance. They comply with industry safety standards and are capable of long-term, stable operation in a variety of complex operating conditions, providing customers with cost-effective and highly reliable connection solutions.

Jiankun's production process adheres to professional quality control standards for electronics manufacturing and is divided into three core stages: front-end manufacturing, mid-end manufacturing and quality control, and back-end warehousing and delivery, as detailed below:


Front-end Process: Component Forming
1. Terminal Stamping and Forming
Using high-purity copper strip as raw material, high-speed precision stamping equipment is employed to cold-form terminal blanks. The structural precision and mechanical strength of the terminals are strictly controlled, laying the foundation for subsequent electrical connection performance.
2. Terminal Electroplating
Surface treatments such as gold plating, tin plating and nickel plating are carried out by qualified external suppliers. This enhances the terminals' conductivity, oxidation resistance and insertion/withdrawal durability, whilst meeting industry environmental and reliability requirements such as RoHS and REACH.
3. Injection Moulding of Plastic Housings
Engineering plastic pellets (such as PA66 and LCP) are melted at high temperature using precision injection moulding machines and injected into moulds to form the connector housing, ensuring dimensional stability, insulation performance and temperature resistance.


Mid-stage Processes and Quality Control
1. Automated Assembly
High-speed insertion equipment is used to precisely insert and lock the electroplated terminals into the injection-moulded housing, thereby forming the connector's electrical connection structure. The entire process is monitored by a vision positioning system to ensure assembly accuracy.
2. CCD Visual Inspection
A high-resolution CCD vision inspection system is utilised to perform automated inspection and yield screening for connector cosmetic defects (such as terminal deformation or flash on the plastic housing) and dimensional accuracy (such as terminal alignment deviation), with a detection accuracy of up to ±0.01 mm.
3. Tape and Reel Packaging
Qualified products are packaged using carrier tape and cover tape to meet the SMT automated placement process requirements of downstream customers, whilst preventing damage during transport and storage.
4. Final 100% Inspection
Through a combined 'manual visual inspection + electrical performance testing' process, we verify core electrical parameters of the connectors, including electrical continuity, withstand voltage and insulation resistance, to ensure products comply with industry quality system requirements such as IATF 16949.


Back-end Warehousing and Delivery
1. Batch-based Inbound Management
Qualified products are scanned into stock via the WMS (Warehouse Management System), enabling production batch traceability, real-time inventory control and First-In, First-Out (FIFO) management.
2. Order Fulfilment and Dispatch
Picking and preparation are carried out in accordance with customer order requirements, with dispatch arranged via the logistics system. Batch traceability reports and Certificate of Conformity (COC) are provided throughout the process to guarantee delivery timeliness and quality traceability.

Jiankun Connectors' core production base operates in accordance with the IATF 16949 automotive quality management system, integrated with the ISO 9001 general quality standard. Focusing on the performance requirements of compact product design and highly reliable connections, the company has established a fully autonomous production chain covering the entire process from "raw material processing – component forming – finished product assembly – quality inspection". Through specialised workshop zoning, precise division of labour and the use of intelligent equipment, the company ensures controllable quality and efficiency at every stage, providing robust hardware support for high-end applications across the automotive, medical and digital sectors.
