L080 LED Quick Connector

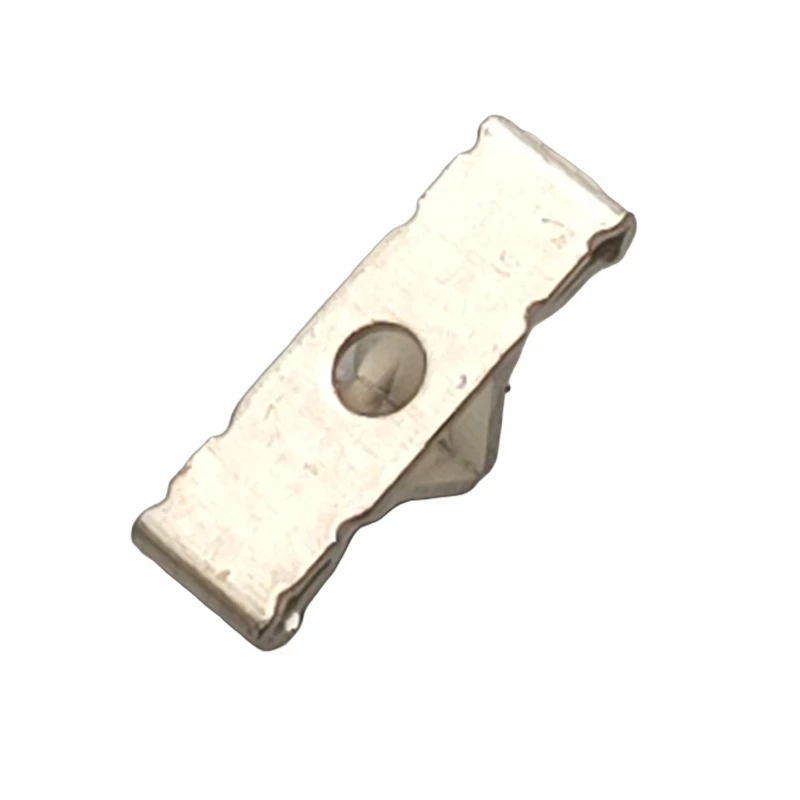

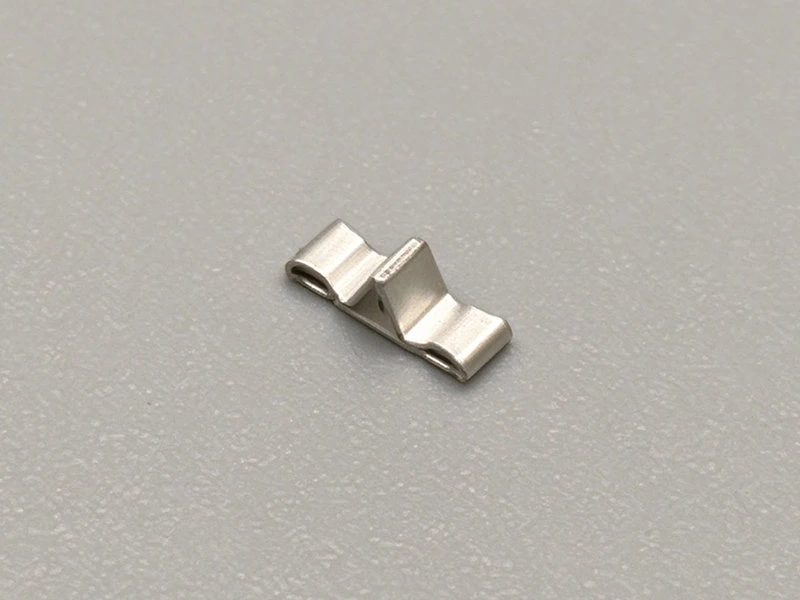

The L080 LED quick connector is an ultra-thin SMT female contact clip for board-to-board interconnection on LED modules. The one-piece part is precision-stamped and bent from high-conductivity copper alloy with a dual-pivot spring structure that distributes elastic force evenly for stable, lasting recovery. Nickel or gold plating is available, and the multi-point contact keeps contact resistance steady with firm, vibration-resistant retention. The ultra-flat profile occupies minimal board space, and the solderless joint simplifies LED luminaire assembly and supports high-volume production.
Dual-pivot springs balance force across two bending points, but the balance only holds if both bends are formed to the same geometry. Our stamping and bending process is set on progressive tooling with CCD inspection to ±0.01mm, so the two pivots recover evenly part after part. Plating is controlled to specification. The buyer value is even spring behavior in an ultra-thin part: consistent insertion depth and contact resistance in tight LED module layouts, delivery after delivery.
Specifications
|
Parameter |
Specification |
|
Material |
High-conductivity copper alloy |
|
Plating |
Nickel or gold options |
|
Mounting Type |
SMT (surface mount) |
|
Structure |
Dual-pivot elastic spring, ultra-thin flat |
|
Connection |
Solderless board-to-board |
|
Rated Current |
To Be Confirmed |
|
Rated Voltage |
To Be Confirmed |
|
Contact Resistance |
To Be Confirmed |
Applications
Thin LED Light Boards
The ultra-flat profile suits slim light strips where height budget is tight.
Backlight Modules
Balanced dual-pivot force keeps contact stable in low-profile backlight stacks.
High-Density LED PCBs
Minimal footprint leaves routing space on dense module boards.
SMT Automation Lines
Flat geometry and even spring force support high-speed placement and consistent mating.
Customization
Spring geometry, outline dimensions and plating can be customized to the PCB layout. OEM/ODM production from drawings or samples is supported with sample confirmation before mass production.
Packaging & Transportation
Products are packed in ESD carrier tape for direct SMT feeder use, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. How thin is the L080 profile?
+
-
L080 is designed as an ultra-thin flat clip for space-limited modules. Exact dimensions are confirmed against your stack-up requirement before production.
Q2. Can you support prototype development for a new spring design?
+
-
Yes. Our R&D team supports structure development, and prototype or sample parts are supplied for testing before mass production.
Q3. What is the delivery time?
+
-
Standard products are produced in 5-7 days. Custom orders generally take 7-30 days after sample confirmation.
