L081 LED Quick Connector

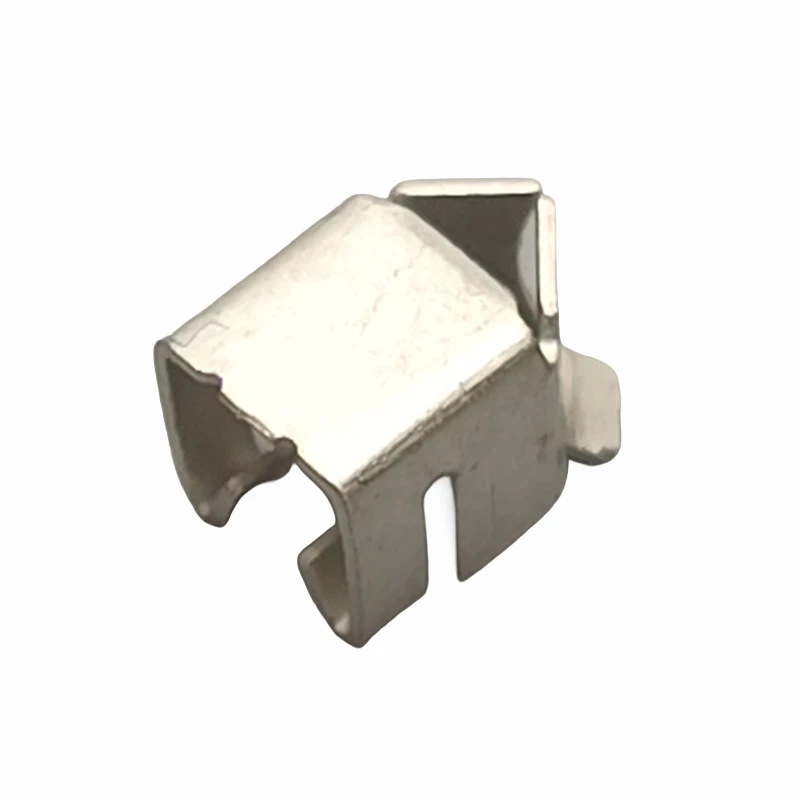

The L081 LED quick connector is a sleeve-type SMT female terminal for board-to-board interconnection on LED modules. The terminal is wrap-formed from high-conductivity copper alloy into a square sleeve body with side-wing positioning solder feet, so it sits firmly on the PCB during SMT placement and resists shifting. An internal elastic contact inside the sleeve wraps the mating blade in a full-around grip. Nickel or gold plating gives stable conductivity and corrosion resistance, and the compact three-dimensional body fits thin LED modules while the solderless joint speeds up assembly.

A sleeve with side-wing feet combines two functions that both depend on forming accuracy: the wings must sit flat for soldering, and the sleeve must grip evenly for retention. Our wrap-forming process and progressive tooling hold both to CCD-inspected tolerance to ±0.01mm, with plating controlled to specification. The practical value for a buyer is a terminal that places reliably, solders flat and keeps the mating blade secure under vibration, across every production batch.

Specifications

Parameter	Specification
Material	High-conductivity copper alloy
Plating	Nickel or gold options
Mounting Type	SMT with side-wing positioning feet
Structure	Square wrap-formed sleeve, internal elastic contact
Connection	Solderless board-to-board
Rated Current	To Be Confirmed
Rated Voltage	To Be Confirmed
Contact Resistance	To Be Confirmed

Applications

LED Linear Lighting

Full-around sleeve grip keeps board-to-board joints secure in linear fixtures under vibration.

Backlight Modules

The compact body and stable foot placement suit thin backlight driver boards.

Modular LED Boards

Separable, dependable joints support modular construction and easy board exchange.

Automated LED Assembly

Side-wing feet hold the terminal square during placement, reducing reflow shift.

Customization

Sleeve dimensions, foot positions and plating can be customized to the mating blade and PCB layout. OEM/ODM production from drawings or samples is supported with sample confirmation before mass production.
