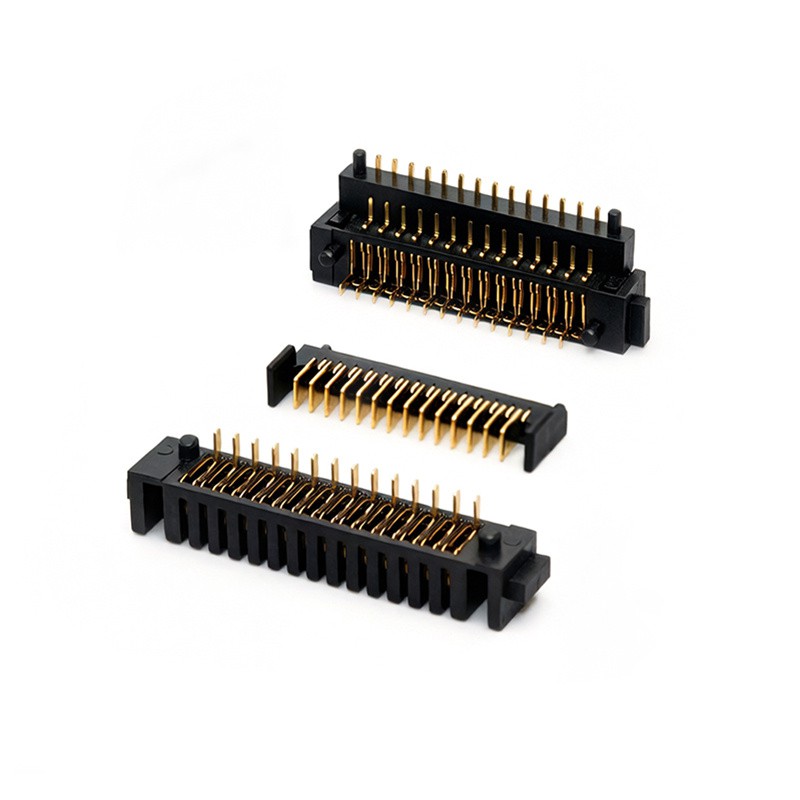

BD2002G/M: 2.00mm Pitch High Current Board to Board Connector
Product Features
The BD2002G/M series is a 2.00mm pitch high-current board-to-board connector, specifically designed for smart robot battery power applications. Its core advantages include high current capacity, multi-directional quick connection, stable contact, flexible layout, and customizable pin configurations.
• 2.00mm Pitch & High Current: Standardized pitch balances current capacity with structural compatibility. Rated current is 8 A, meeting power supply needs of various robots.
• Multi-Directional Quick Connection: Supports multi-directional plugging and unplugging without strict angle alignment, solving space and wiring constraints inside robots. The mechanically optimized quick-connect design ensures ease of use while maintaining reliable contact.
• Double-Sided Spring Contact: Spring contacts provide bidirectional clamping through elastic deformation, compensating for deviations and vibration. Precisely calibrated spring elasticity reduces insertion resistance, allowing tool-free operation while extending plugging/unplugging lifespan.
• Vertical/Horizontal Mounting: Vertical mounting maximizes space utilization, while horizontal mounting reduces height. Both are compatible with SMT surface mount technology, accommodating diverse robot designs.
• Customizable Pin Configurations: Standard 14P supports simultaneous power and signal transmission. Pins can be expanded without new mold development, adapting to different power and signal requirements.
Product Specification
|
Pitch |
2.0mm |
|
Rated Current |
8A |
|
Rated Voltage |
30V AC |
|
Insulation Resistance |
≥100MΩ |
|
Contact Resistance |
≤30mΩ |
|
Withstand Voltage |
500V AC/minute |
|
Temperature Range |
-40℃ ～ +105℃ |
Application Scenarios
The BD2002G/M series is ideal for battery power supply in industrial, commercial, and consumer-grade smart robots, including:
• AGV/AMR automated guided vehicles
• Commercial cleaning robots
• Security and inspection robots
• Educational and family companion robots
It can also be applied to portable energy storage, industrial testing instruments, and other equipment requiring stable high-current connections with convenient plugging and unplugging.
Production Site
JKUN Connector's production base covers all stages with clear division of labor:
Injection Molding Workshop
Molds plastic components with precise dimensional control.
Stamping Workshop
Stamps copper terminals and prepares them for electroplating.
Assembly Workshops
Automated lines handle component assembly and initial inspection, ensuring consistent quality and efficient order fulfillment.
Packaging & Transportation
Products are packaged in high-strength corrugated boxes and secured on standard logistics pallets, reinforced with stretch film and corner protectors. Storage should be in a clean, dry, ventilated, light-protected environment with stable temperature and humidity, avoiding external pressure or damage. Transportation options include road, air, sea, and express delivery, with precautions to prevent sharp-object contact or violent impacts.
QA & QC
The company is certified under IATF16949, ISO 9001, ISO 14001, ISO 45001, and GB/T 27922-2011. It holds multiple utility model patents focused on connector structure optimization, wire harness production simplification, and precision terminal and housing assembly. CNAS-accredited laboratories conduct rigorous environmental simulation tests to ensure vibration resistance, stable contact, and precise performance.
Company Introduction
Founded in 2013 in Yueqing, WENZHOU JKUN CONNECTOR CO.,LTD. is a national high-tech enterprise covering the full connector industry chain. Leveraging over a decade of expertise, comprehensive production and sales systems, and strict quality control, JKUN provides reliable, application-specific connector solutions globally.
The company adheres to the principles of "compliance as the foundation, technology as the core", and holds multiple international certifications including UL and CE. Its CNAS-accredited laboratory enables rigorous testing across diverse scenarios.
JKUN's product portfolio spans: automotive connectors, new energy connectors, electronic connectors, and LED connectors, supporting both standard and customized applications. Looking forward, the company focuses on AI, 5G, and new energy sectors, aiming to deepen R&D in high-end connectors, strengthen global market presence, and become a benchmark in precision and high-value connectors.
