Through Hole Board To Board Connector
Details
Pitch: 6.20mm
The B6201 series is a 6.20mm pitch through-hole board-to-board connector, specifically designed for backlight modules and LED strip power supply applications. Key features include precise OEM compatibility, high voltage protection, wide temperature tolerance, and SMT automation compatibility, ensuring stable and reliable power connections.
Category
Board-to-Board Connector
Share to
Description

B6201: 6.20mm Pitch Through Hole Board to Board Connector



Product Features



The B6201 series is a 6.20mm pitch through-hole board-to-board connector, specifically designed for backlight modules and LED strip power supply applications. Key features include precise OEM compatibility, high voltage protection, wide temperature tolerance, and SMT automation compatibility, ensuring stable and reliable power connections.

product-730-489



OEM Compatibility

Pin definitions and dimensional layout fully match Samsung original connectors. The 2-pin single-circuit design allows direct replacement without PCB modifications, reducing supply chain switching costs.

01

Secure Mechanical & Electrical Connection

SMT surface-mount board-side combined with plug-in male and female connectors provides strong welding stability, vibration resistance, and long-term reliability.

02

High Voltage & Wide Temperature Resistance

Excellent insulation and ultra-high voltage protection withstand backlight startup surges. Operating temperature range accommodates LCD TVs/monitors and outdoor advertising screens.

03

Durable Materials

Housing is made of PA6T UL94V-0 flame-retardant plastic; terminals and solder pads use phosphor bronze with tin plating, ensuring long-term reliability and environmental adaptability.

04



Product Specification


product-750-288

Pitch

6.2mm

Rated Current

2A AC/DC

Rated Voltage

400V AC/DC

Insulation Resistance

≥1000MΩ

Contact Resistance

≤30mΩ

Withstand Voltage

1800V AC/minute

Temperature Range

-25℃ ~ +105℃



Application Scenarios

The B6201 is optimized for backlight module power connections, serving multiple display equipment scenarios:

• Consumer Display Devices: Provides stable OEM-level power connections for LCD displays in home environments.

• Commercial Display Devices: Ensures reliable operation under complex industrial or outdoor conditions with wide temperature and vibration tolerance.

• Third-Party Display Equipment Manufacturers: Offers cost-effective alternatives for small and medium manufacturers, reducing supply chain costs.

• After-Sales Repair: Dedicated replacement part for backlight modules, addressing parts shortages and reducing repair costs.

• Automotive Displays: Compatible with Samsung automotive LCD modules, ensuring reliable connections in vehicle cockpits.

product-800-520



Production Process





The B6201 is manufactured using a dual-branch parallel production model:

  • Copper Strip Branch: Raw materials undergo stamping and electroplating for precise terminals.
  • Injection Molding Branch: Flame-retardant plastics are processed through drying, molding, and inspection for dimensional and visual quality.

Both branches converge for pin pressing, automated assembly, CCD inspection, tape-and-reel packaging, final inspection, and warehousing for order-based shipment.

Production process

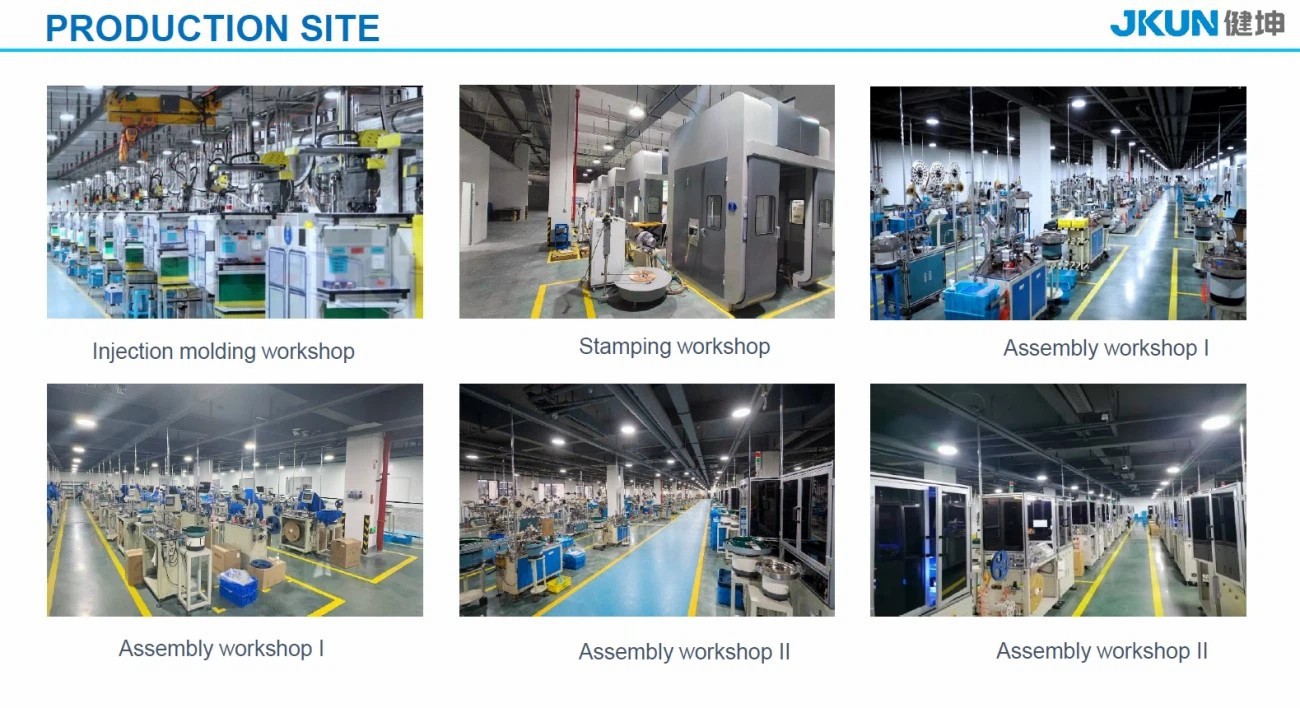

Production Site





The core production base adheres to IATF16949 and ISO9001 standards, achieving fully automated production across injection molding, stamping, assembly, and inspection processes.



workshop

Packaging & Transportation





Products are packed in custom corrugated cardboard boxes with cushioning pads, secured on standard pallets, and reinforced with stretch film and corner protectors. Storage requires a clean, dry, ventilated, and light-protected environment, away from flammable, corrosive, or magnetic hazards. Transportation options include road, air, sea, and express delivery. Care must be taken to avoid impacts or sharp object contact.

Package &Transportation

QA & QC





Certified under IATF16949, ISO9001, ISO14001, ISO45001, and GB/T27922-2011, the B6201 also holds multiple independent patents. Strict quality control is implemented from raw material processing to finished product shipment, ensuring consistent performance in shock resistance, conductivity, and safety.



product-1147-759

product-1150-504




Frequently Asked Questions



Can I get samples before finalizing the PCB?



-

Yes. We provide up to 10 free standard samples. You only pay the shipping cost.

What is the MOQ for the B6201 board-to-board connector?

-

The MOQ depends on the selected part number, required connector components and order quantity. Please provide your required configuration and estimated quantity, and we will confirm the applicable MOQ.

What dimensions are needed before the PCB layout is released?



-

Provide the board spacing, PCB thickness, hole size, connector coordinates and required pin lengths.

How do I verify alignment between the two boards?



-

Send both PCB drawings or assembled board samples, and we will confirm the connector positions before mass production.
