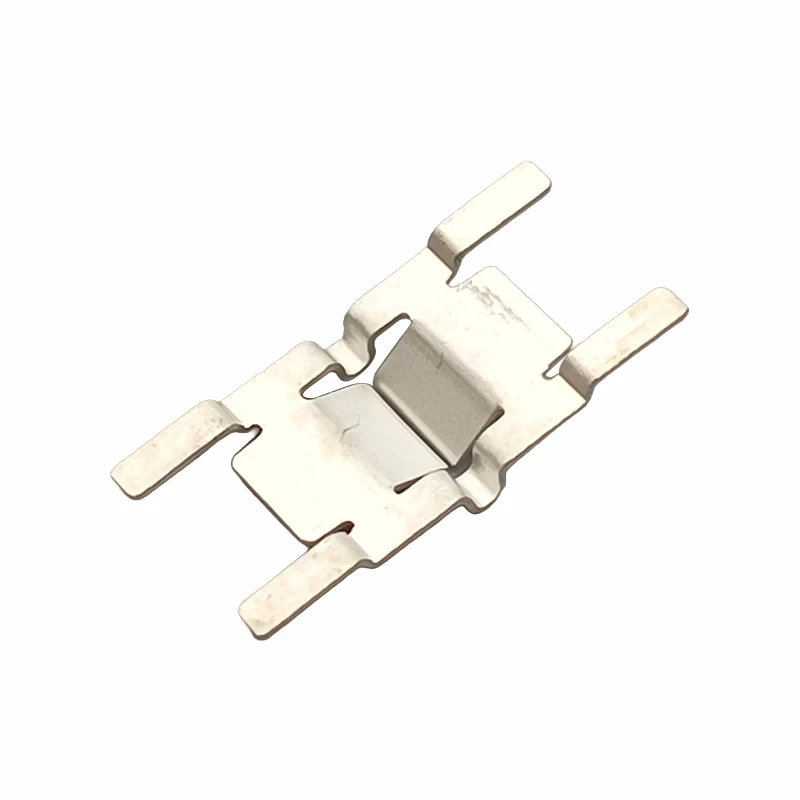

L087 LED Quick Connector

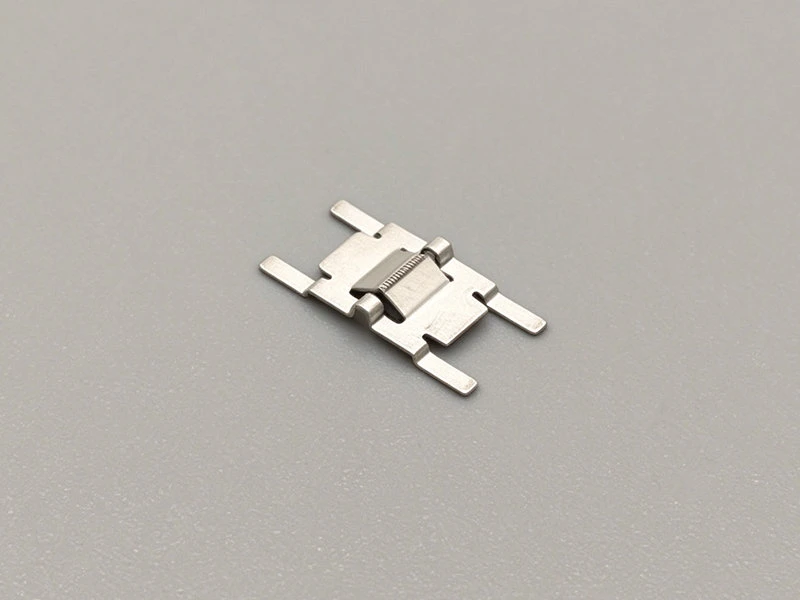

The L087 LED quick connector is a quick-connect spring clip for LED light boards and strip modules, providing solderless fast interconnection. The one-piece stamped metal clip gives stable conduction, installs quickly and removes the soldering step from assembly, raising production efficiency. The compact structure suits space-limited LED lighting designs, and the elastic contact structure keeps the connection reliable and resistant to loosening under vibration. Plating protects against oxidation and corrosion for a long service life.
As a high-volume, standardized stamped part, L087 is where batch consistency matters most: spring force, dimensions and plating must hold across millions of pieces for an assembly line to keep running. Our progressive dies, controlled material temper and CCD inspection to ±0.01mm keep every batch within the same profile, and plating is applied to a controlled specification. Custom sizes and plating can still be produced from a drawing, with samples confirmed before mass production.
Specifications
|
Parameter |
Specification |
|
Rated Current |
1 A AC/DC |
|
Rated Voltage |
250 V AC/DC |
|
Contact Resistance |
≤ 20 mΩ |
|
Operating Temperature |
-40 °C to +125 °C |
|
Mounting Type |
SMT / solder assembly |
|
Connection |
Solderless quick connect |
|
Structure |
One-piece stamped spring clip |
Applications
LED Strip and Light Bar Assembly
Press-in connection replaces manual wire soldering and cuts cycle time per strip.
Linear Lighting
The compact clip fits slim profiles and holds connections secure in vibration-prone installations.
Backlight Modules
Reliable elastic contact keeps internal wiring stable over long service.
Decorative and Signage Lighting
Quick, solder-free joining supports fast on-site installation of light modules.
Customization
Clip dimensions and plating can be customized according to the customer requirement. OEM/ODM production from drawings or samples is supported with sample confirmation, and different models can be combined in one order.
Packaging & Transportation
Products are packed in ESD carrier tape or bulk reels, sealed in five-layer corrugated cartons labelled with model, quantity and lot number, then stacked on wooden pallets and secured with stretch film. Recommended storage is 15-25 °C with relative humidity below 60%. Domestic full-truck or LTL delivery, international express (UPS, DHL, FedEx, TNT), air and sea freight are available, with tracking, batch traceability and a certificate of conformity (COC) provided with each shipment.
Frequently Asked Questions
Q1. What is the MOQ for L087?
+
-
The MOQ is 1 set or negotiable depending on the product, and different models or sizes can be mixed in one order.
Q2. Can the clip size be customized?
+
-
Yes. Dimensions and plating can be adjusted to your board or application, with samples supplied for testing before mass production.
Q3. What are the payment terms?
+
-
The standard payment term is 50% prepaid when the contract is signed and 50% paid on delivery after sample confirmation.
